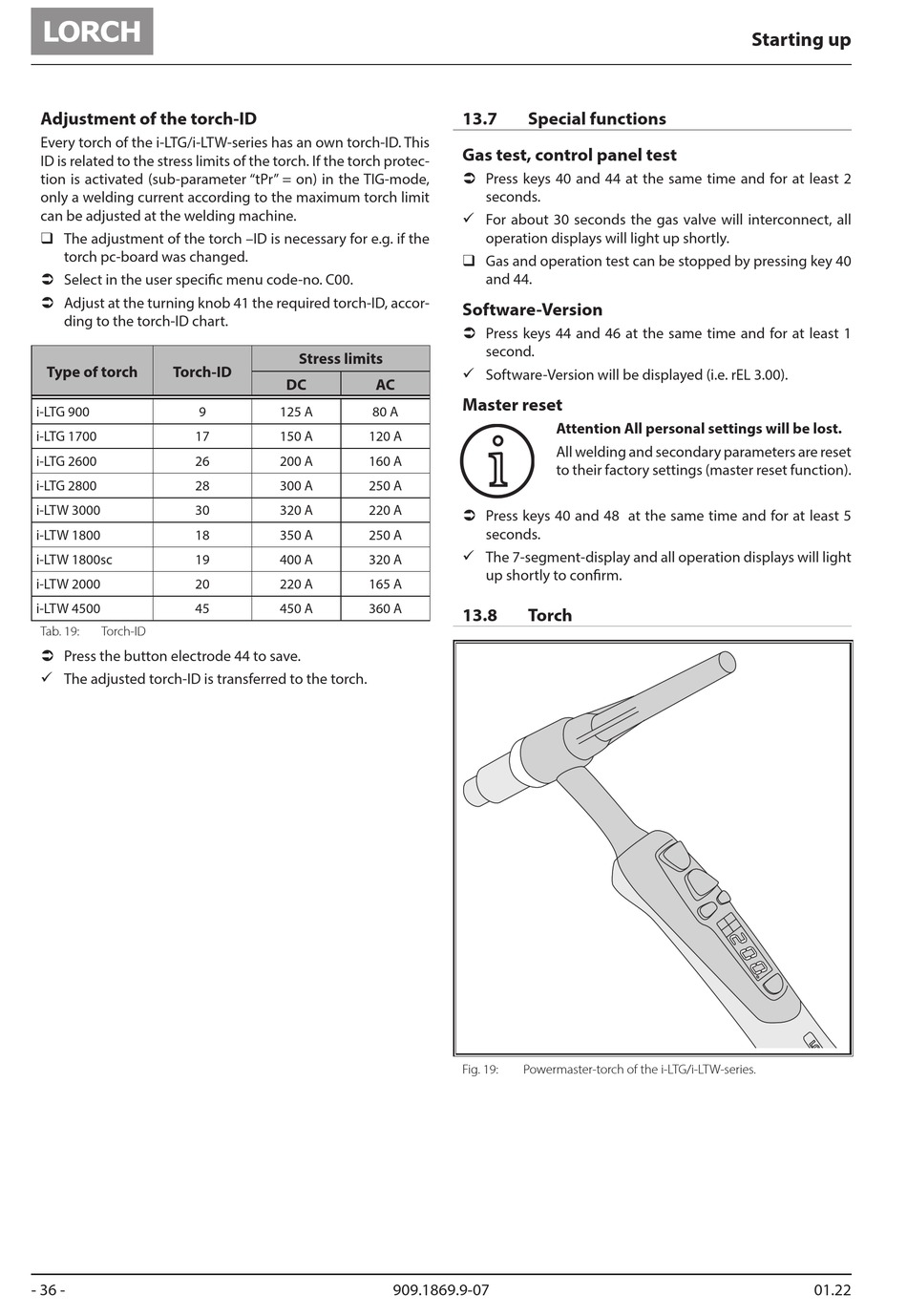

LORCH HandyTIG 180 AC/DC ControlPro Bedienungshandbuch Seite 36

Adjustment of the torch-ID
Every torch of the i-LTG/i-LTW-series has an own torch-ID. This
ID is related to the stress limits of the torch. If the torch protec-
tion is activated (sub-parameter "tPr" = on) in the TIG-mode,
only a welding current according to the maximum torch limit
can be adjusted at the welding machine.
‰ The adjustment of the torch –ID is necessary for e.g. if the
torch pc-board was changed.
 Select in the user specific menu code-no. C00.
 Adjust at the turning knob 41 the required torch-ID, accor-
ding to the torch-ID chart.
Type of torch Torch-ID
i-LTG 900 9
i-LTG 1700 17
i-LTG 2600 26
i-LTG 2800 28
i-LTW 3000 30
i-LTW 1800 18
i-LTW 1800sc 19
i-LTW 2000 20
i-LTW 4500 45
Tab. 19: Torch-ID
 Press the button electrode 44 to save.
9 The adjusted torch-ID is transferred to the torch.
- 36 -
Stress limits
DC AC
125 A 80 A
150 A 120 A
200 A 160 A
300 A 250 A
320 A 220 A
350 A 250 A
400 A 320 A
220 A 165 A
450 A 360 A
909.1869.9-07
13.7 Special functions
Gas test, control panel test
 Press keys 40 and 44 at the same time and for at least 2
seconds.
9 For about 30 seconds the gas valve will interconnect, all
operation displays will light up shortly.
‰ Gas and operation test can be stopped by pressing key 40
and 44.
Software-Version
 Press keys 44 and 46 at the same time and for at least 1
second.
9 Software-Version will be displayed (i.e. rEL 3.00).
Master reset
Attention All personal settings will be lost.
i i
All welding and secondary parameters are reset
to their factory settings (master reset function).
 Press keys 40 and 48 at the same time and for at least 5
seconds.
9 The 7-segment-display and all operation displays will light
up shortly to confirm.
13.8 Torch
Fig. 19: Powermaster-torch of the i-LTG/i-LTW-series.
Starting up
