Messages
Torch switch functions
77
75 76 78

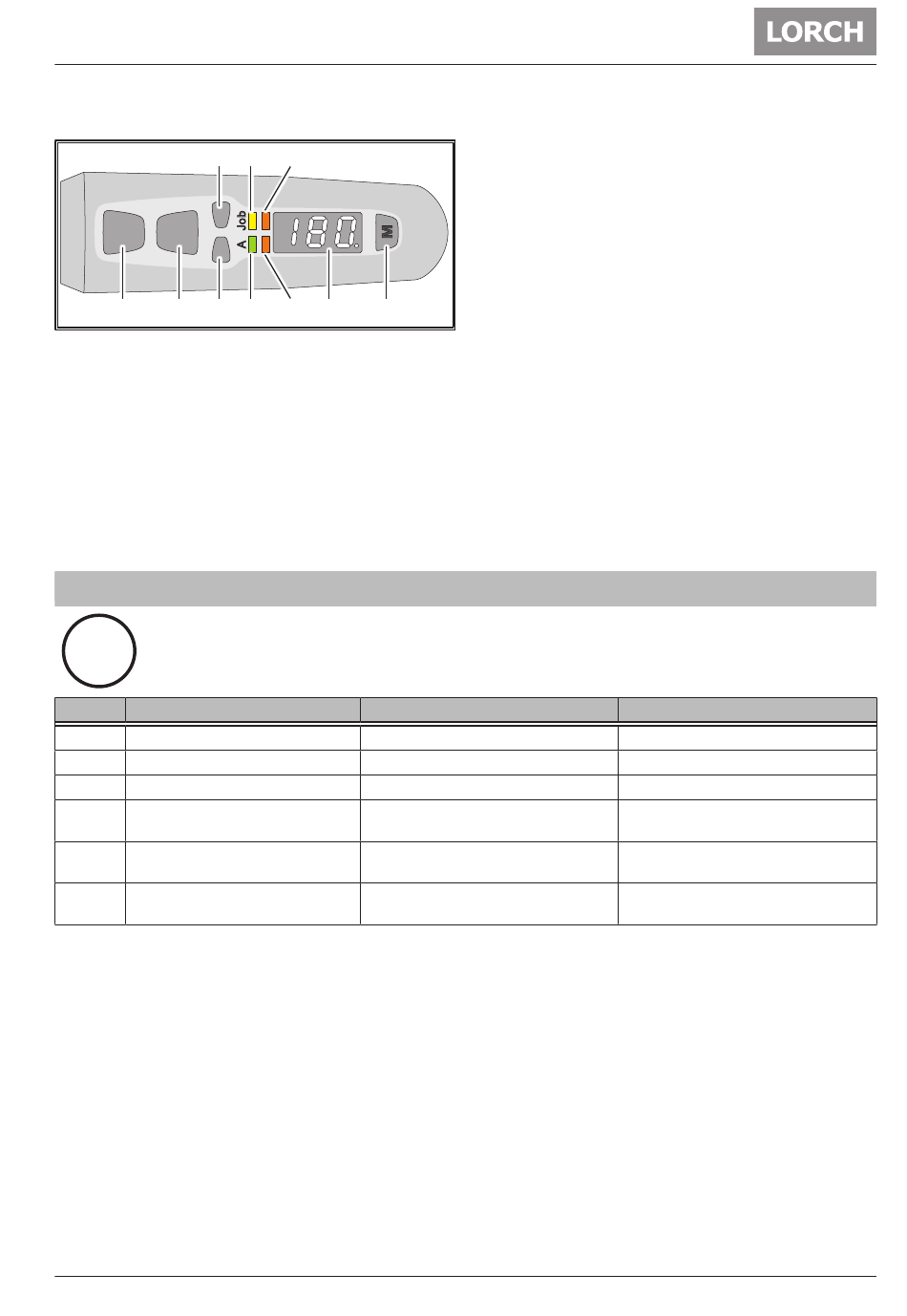

Fig. 20: Torch switches
75
Torch switch Start/Stop
for starting and stopping the welding process.
76
Torch switch second current
for calling up the second current I2.
77
Torch switch up
to increase the parameter values.
78
Torch switch down
to decrease the parameter values.
14 Messages
After the message has been output, the ma-
i i
chine will only function to a limited extent; the
error must be corrected as quickly as possible.
Code Note
H01 Undervoltage
H03 Fans
H04 PFC
H05 EEProm checksum error
H06 EEProm write/read error
H10 Torch protection
Tab. 20: Informative messages
01.22
81 83
80 82 84 85
Mains voltage too low
Fan fault
PFC faulty
Communication with EEProm faulty
Communication with EEProm faulty
Torch doesn't send ID although torch
protection is activated
80
LED ampere:
is lit if the welding current is readable in the display
(84).
81
LED job:
is lit if a job is selected at the machine. The torch but-
ton Up 77 or Down 78 switch between Job 1 and Job
2. The welding current is shown in the display 84.
82
Powermaster LED 3:
Free selectable parameters can be saved here. Initial
parameter is "second current I2".
83
Powermaster LED 4:
Free selectable parameters can be saved here.
84
Display: shows parameter values.
85
Mode button:
switch between the parametes LED 80 to LED 83.
Press 7 seconds to change the display (84) to right or
left hand mode. Index is a dot at the bottom right.
Press 2 seconds to unlock the mode-button for 15
seconds (with activated sub-parameter "Powermaster
LED lock" (PLL).
Cause
909.1869.9-07
Possible remedy
Check mains voltage
Inform Service
Inform Service
Switch machine off and on again, execute
master reset
Switch machine off and on again, execute
master reset
Adjust torch-ID
