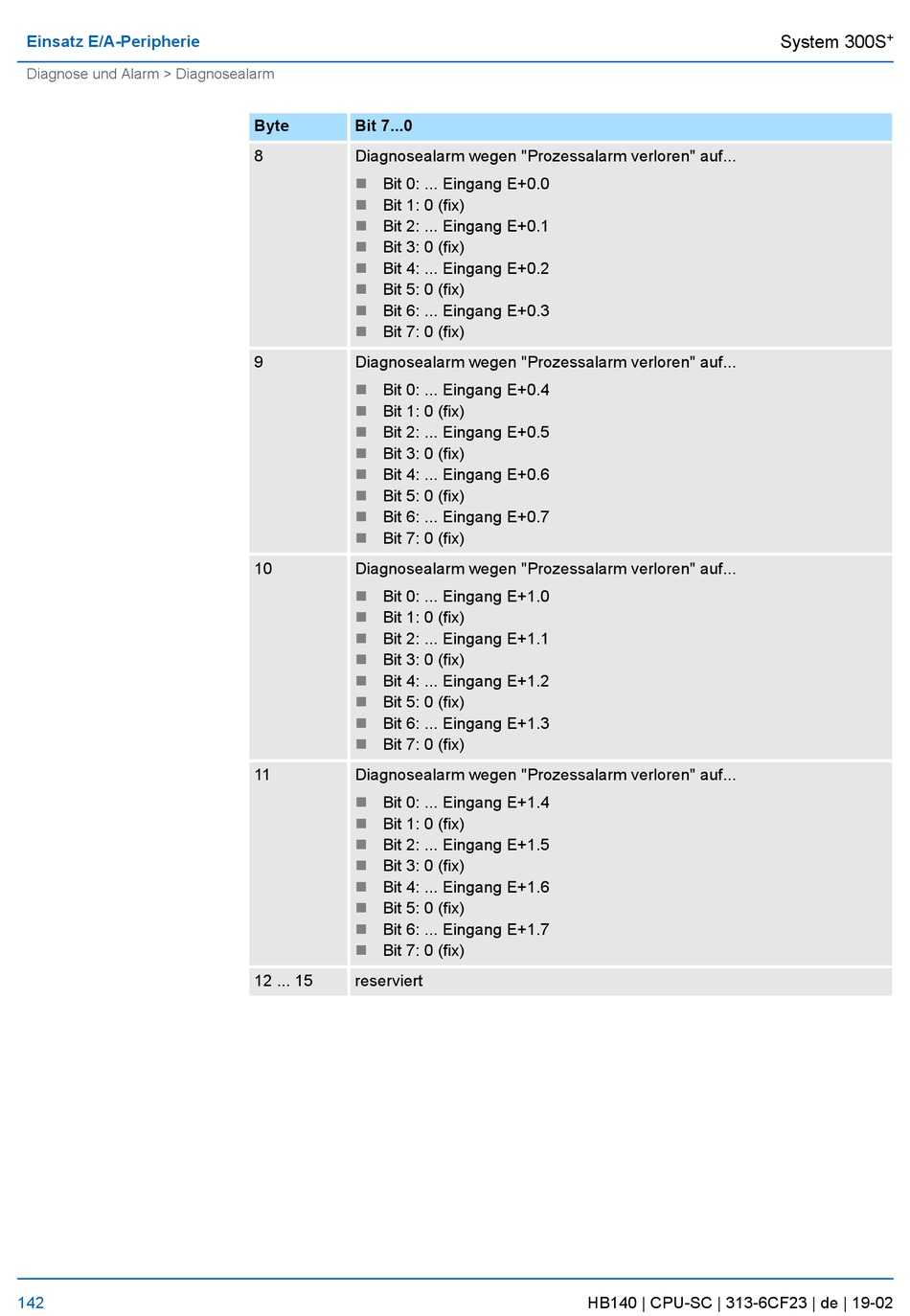

YASKAWA SPEED7 CPU 313SC/DPM Handbuch Seite 142

Einsatz E/A-Peripherie
Diagnose und Alarm > Diagnosealarm
142
Byte Bit 7...0
8 Diagnosealarm wegen "Prozessalarm verloren" auf...
n Bit 0: ... Eingang E+0.0
n Bit 1: 0 (fix)
n Bit 2: ... Eingang E+0.1
n Bit 3: 0 (fix)
n Bit 4: ... Eingang E+0.2
n Bit 5: 0 (fix)
n Bit 6: ... Eingang E+0.3
Bit 7: 0 (fix)
n
9 Diagnosealarm wegen "Prozessalarm verloren" auf...
n Bit 0: ... Eingang E+0.4
n Bit 1: 0 (fix)
n Bit 2: ... Eingang E+0.5
n Bit 3: 0 (fix)
n Bit 4: ... Eingang E+0.6
Bit 5: 0 (fix)
n
n Bit 6: ... Eingang E+0.7
n Bit 7: 0 (fix)
10 Diagnosealarm wegen "Prozessalarm verloren" auf...
n Bit 0: ... Eingang E+1.0
n Bit 1: 0 (fix)
Bit 2: ... Eingang E+1.1
n
Bit 3: 0 (fix)
n
n Bit 4: ... Eingang E+1.2
n Bit 5: 0 (fix)
n Bit 6: ... Eingang E+1.3
n Bit 7: 0 (fix)
11 Diagnosealarm wegen "Prozessalarm verloren" auf...
Bit 0: ... Eingang E+1.4
n
Bit 1: 0 (fix)
n
n Bit 2: ... Eingang E+1.5
n Bit 3: 0 (fix)
n Bit 4: ... Eingang E+1.6
n Bit 5: 0 (fix)
n Bit 6: ... Eingang E+1.7
n Bit 7: 0 (fix)
12 ... 15 reserviert
