GARANT VG Basic pre-setting device
de
en
Z: -0.004
cs
da
es
fi
Z: -0.000
fr

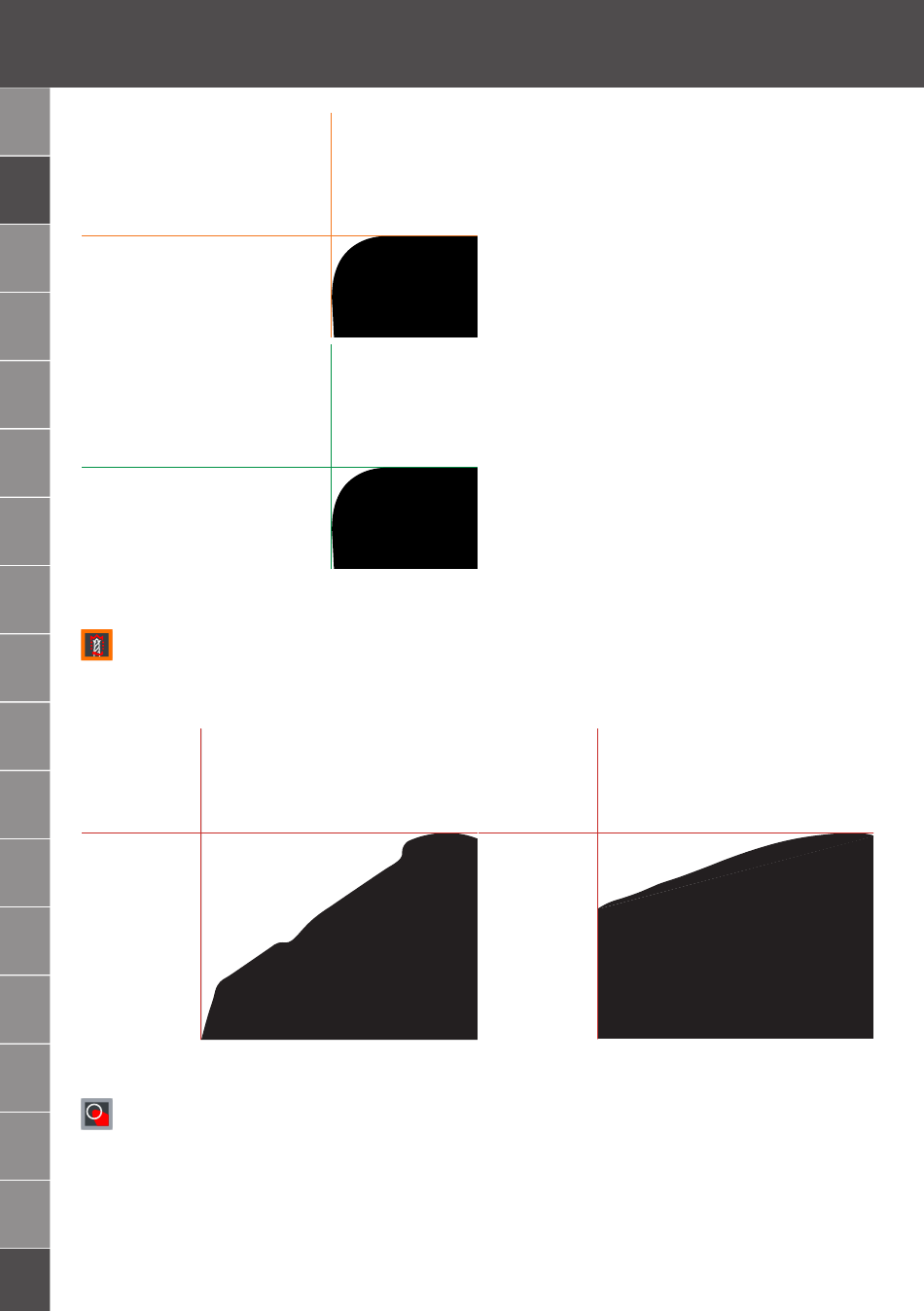

Tab. 7: Explanation of the colours of the lines
hr
7.2.3.

Total image

The total image function can be combined with other measurement functions.
hu
1. After activation, rotate the tool through 360°.
» The tool contour will be displayed in the live image.
2. Switch on the optional dynamic cross hair, to read off the X-values and Z-values from the measurement value window.
it
lt
nl
pl
ro
Tab. 8: The additional measurement function relates to the contour of the tool.
ru
7.2.4.

Radius and angle template

For checking the tool geometry - does not include any measurement function.
sl
sv
48
X: 0.002 The line switches to orange as the cutting edge comes closer
to the line.
X: -0.000 The line switches to green when the cutting edge is touching
the line. Colour orange, if the cutting edge has crossed the
line.
