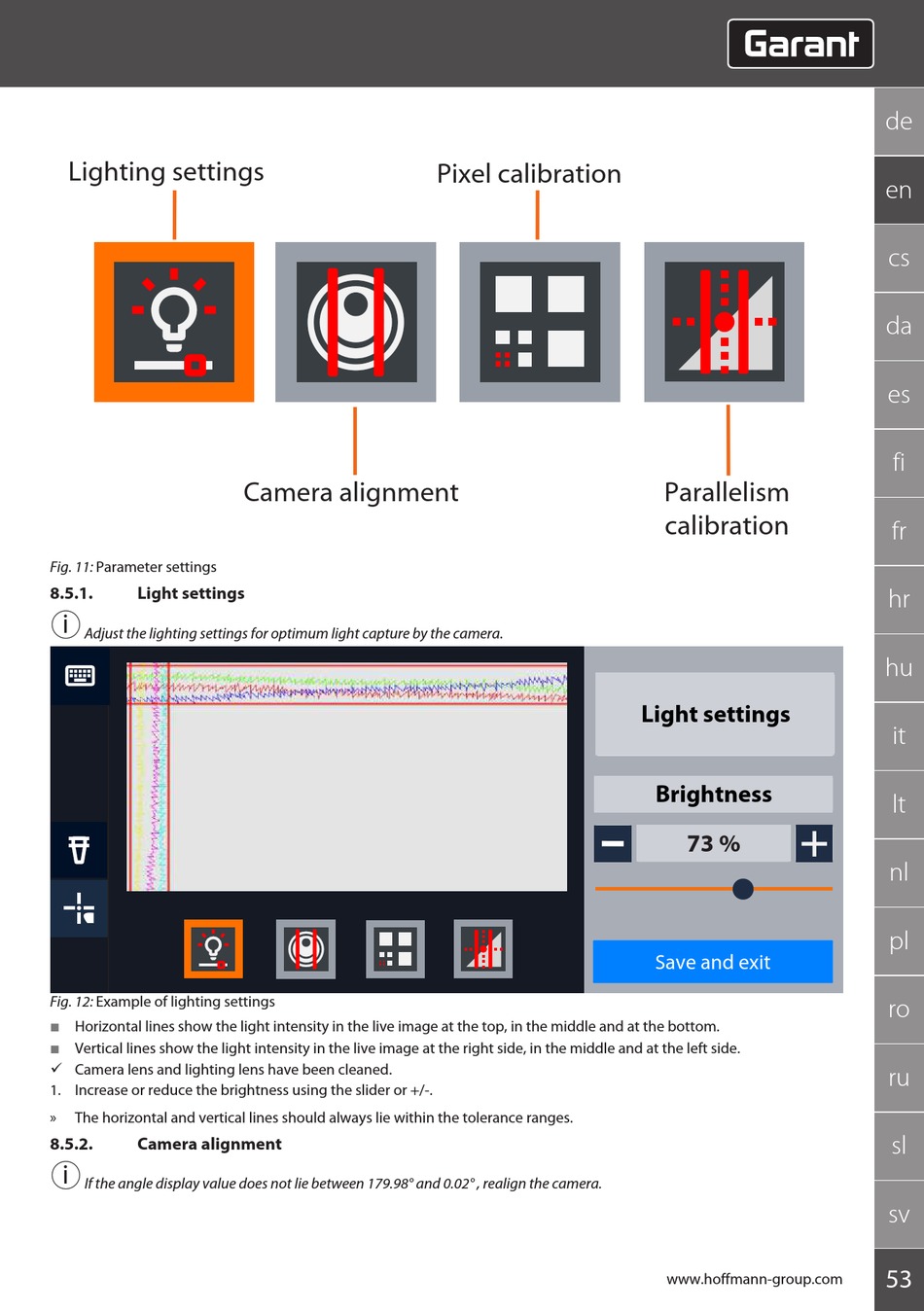

Lighting settings
Fig. 11: Parameter settings
8.5.1.
Light settings
i
Adjust the lighting settings for optimum light capture by the camera.
Fig. 12: Example of lighting settings
Horizontal lines show the light intensity in the live image at the top, in the middle and at the bottom.
Vertical lines show the light intensity in the live image at the right side, in the middle and at the left side.
ü Camera lens and lighting lens have been cleaned.
1. Increase or reduce the brightness using the slider or +/-.
»
The horizontal and vertical lines should always lie within the tolerance ranges.
8.5.2.
Camera alignment
i
If the angle display value does not lie between 179.98° and 0.02° , realign the camera.
Camera alignment
Pixel calibration
Parallelism
calibration
Light settings
Brightness
73 %
Save and exit
