7.

Operation

CAUTION
Falling tools and sharp edges
Crush hazard and laceration hazard for the hands and feet.
» Wear foot protection and safety gloves.
7.1.

ADAPTER FUNCTION

7.1.1.

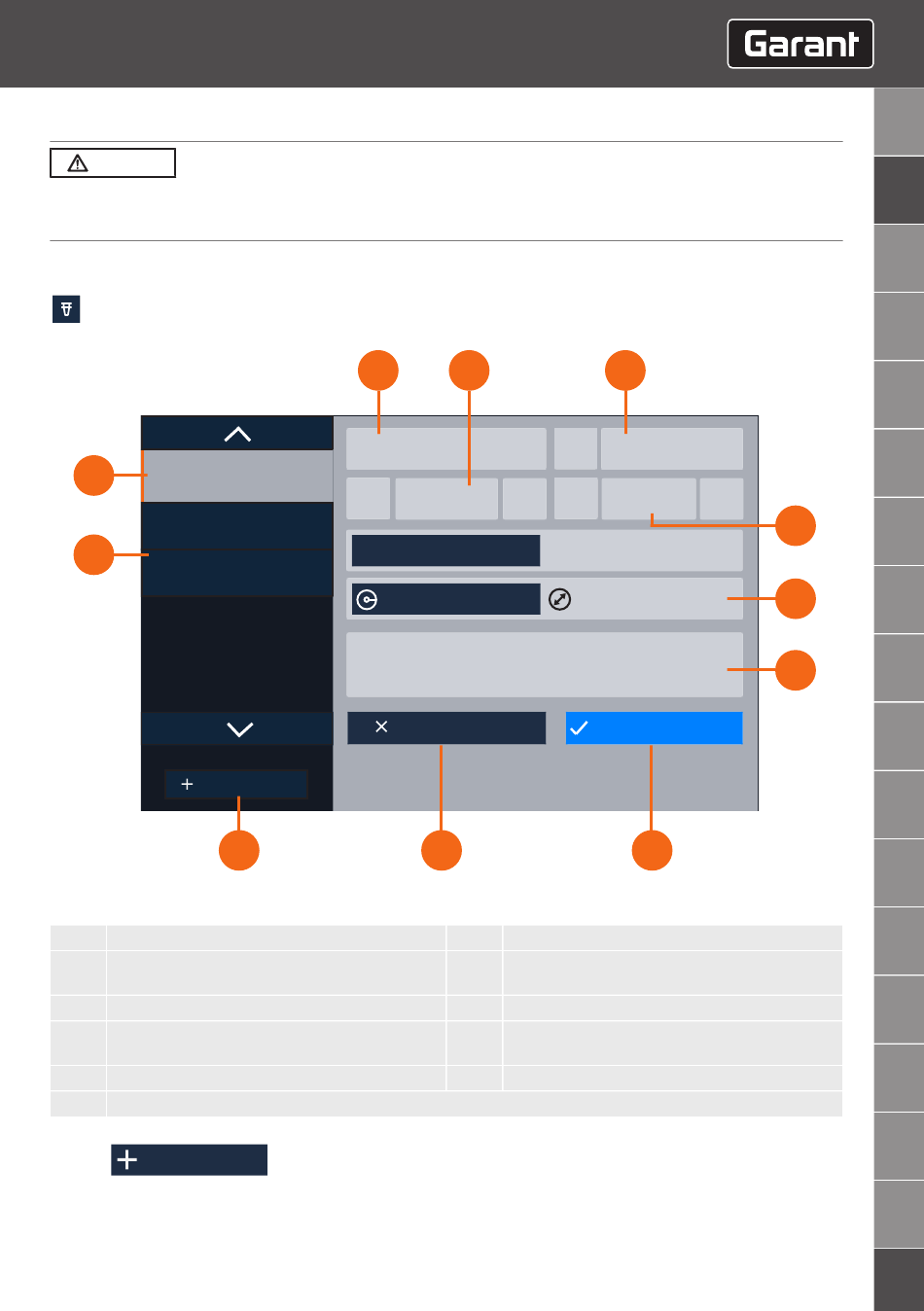

Adapter overview and creation

Press adapter overview and creation.
11
HSK63
SK40
10
SK40
New adapter
1 Adapter name
2 Enter the X-value offset for the adapter calibration
edge
3 Sorting number (ID)
4 Enter the Z-value offset for the adapter calibration
edge
5 Select diameter/radius
6 Remarks field
7.1.2.

Creating a new adapter

New adapter
1. Press
2. Input values such as the name of the adapter.
» Only digits may be used for the ID.
1
HSK50
X
Radius
Notes
Cancel
9
.
2
ID:
Z
49.949 mm
mm
Diameter
8
7 Save
8 Cancel
9 Create a new adapter
10 Adapter selection
11 Selected adapter
3
50
-2.919 mm
Inch
Save
7
