GARANT VG Basic pre-setting device
de
3. Read the values for the X-axis and Z-axis engraved on the adapter, and input them.
»
The entries should be in millimetres or inches, radius or diameter, as required.
Save
4. Press
en
5. Perform Performing movement to reference points/calibration [} Page 43].
7.1.3.
Editing and deleting
i
cs
All previously created values can be overwritten. X-values and Z-values can be found on the GARANT adapter.
Delete the selected adapter.
7.2.
MEASURING FUNCTION
da
i
Before performing a measurement, carry out the following handling steps:
1. Insert the adapter/calibration mandrel in the tool mounting.
es
2. Select or create the adapter.
3. Perform calibration.
fi
fr
hr
hu
10
it
lt
nl
pl
ro

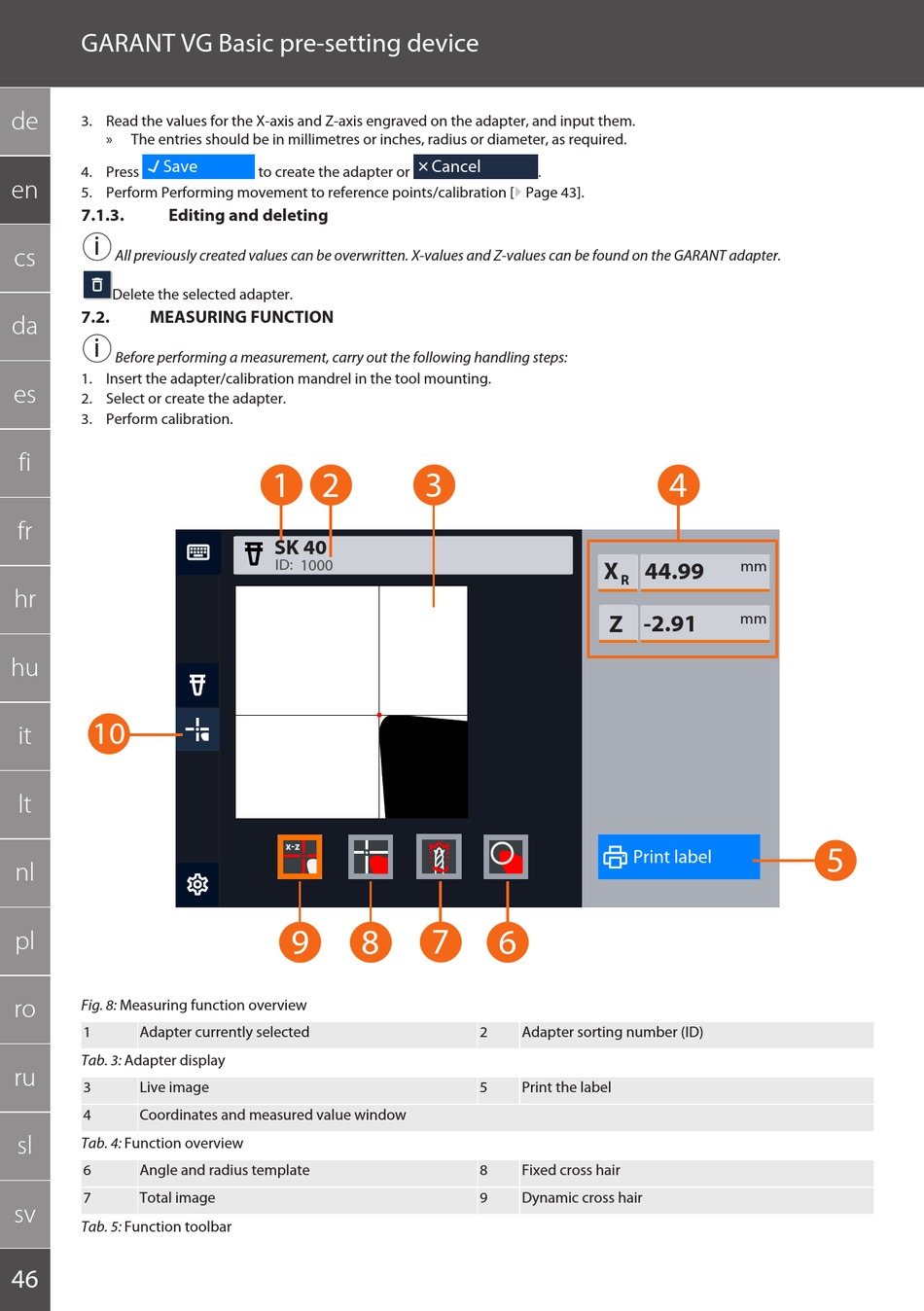

Fig. 8: Measuring function overview
1
Adapter currently selected
Tab. 3: Adapter display
ru
3
Live image
4
Coordinates and measured value window
sl
Tab. 4: Function overview
6
Angle and radius template
7
Total image
sv
Tab. 5: Function toolbar
46
Cancel
to create the adapter or
1 2
3
SK 40
ID:
1000
9
8
7
.
X
44.99
R
Z -2.91
Print label
6
2
Adapter sorting number (ID)
5
Print the label
8
Fixed cross hair
9
Dynamic cross hair
4
mm
mm
5
