Adr.2
Slave
Fig. 111 TW probe
MAX 16 UNIT
SLAVE
ACS ACS
MAX 4 UNIT
MAX 4 UNIT
MAX 4 UNIT
Addr = 15
MAX 4 UNIT

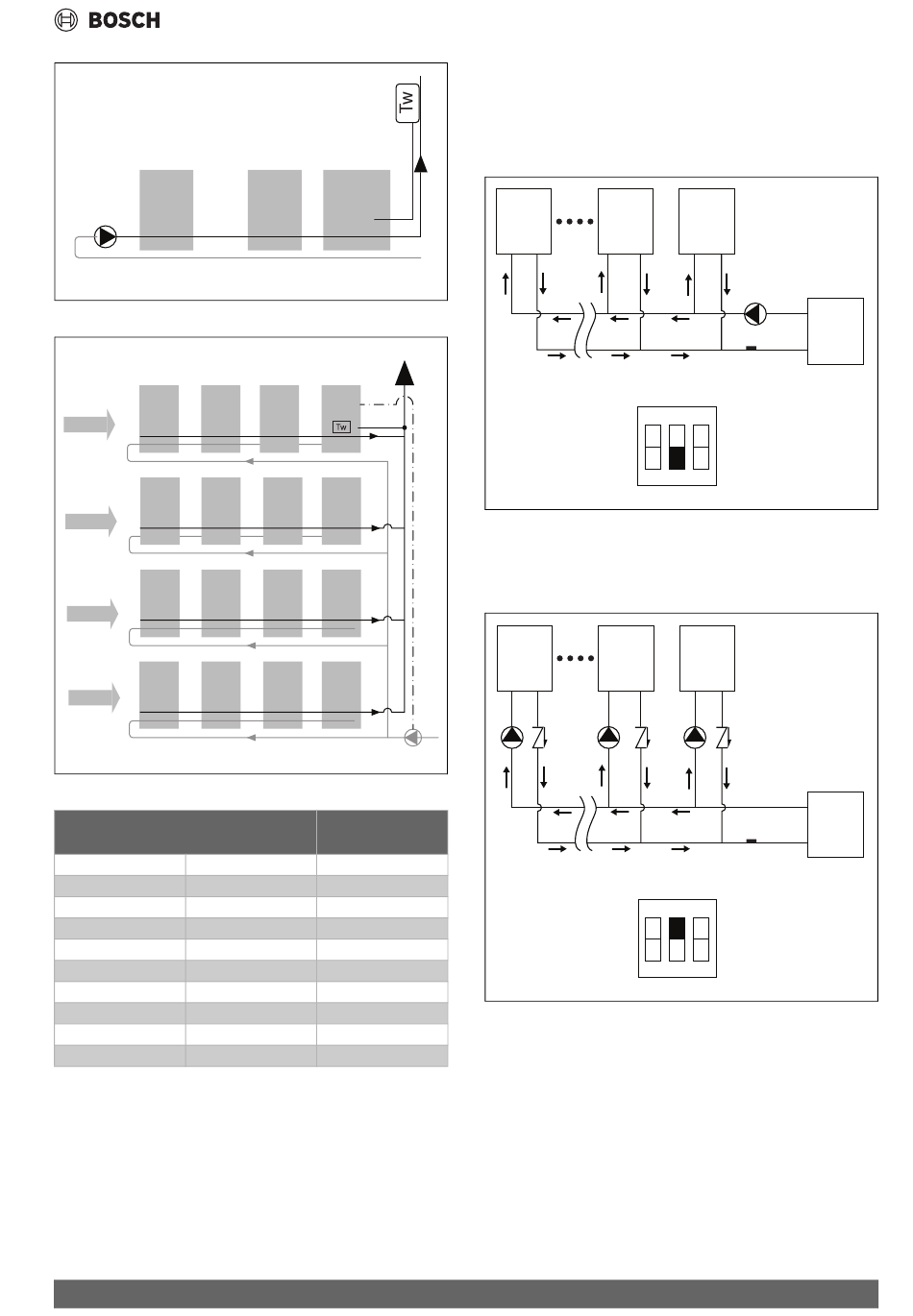

Fig. 112 System diagram with inverted return connection
Cooling (Kw)
Min
15
30
90
130
210
325
510
740
1300
Table 54 Example dimensions for a standard system
CS3000 AWP – 6721852570 (2022/11)
Adr.1 Adr.0
Slave Master
0010045044-001
SLAVE MASTER
ACS ACS
Addr = 1 Addr = 0
0010045045-001
Water pipe
Max IN/OUT
30 DN40
90 DN50
130 DN65
210 DN80
325 DN100
510 DN125
740 DN150
1300 DN200
2080 DN250
14.1

Single/ multiple pump system

Set up the DIP S12-2 according to the system type.
Single water pump
The retaining valve is not necessary with this configuration.
The pump control is only activated on the master unit.
unit
unit (1#)
(n-1#)
ON
1
Fig. 113 Single water pumps
Multiple water pumps
A retaining valve for each unit is necessary with this configuration.
Pump control is activated on each unit.
unit
unit (1#)
(n-1#)
ON
1
Fig. 114 Multiple water pumps
Modular configuration units
unit (0#)
terminal
Tw
S12
2 3
0010045046-001
unit (0#)
terminal
Tw
S12
2 3
0010045047-001
