etc.).
When the clean contact (e.g. float) closes, input I1 of the DConnect Box will be active.
Output Contacts OUT1, OUT2:
The DConnect Box is equipped with two relay outputs OUT1 and OUT2
The Table describes the characteristics and the limits of the output contacts:
Characteristics of the output contacts
Type of contact
Max. bearable voltage
Max. bearable current
Accepted cable section

11. Modbus cable and Active Driver Plus Specifications

Multi-pair twisted cable 0.22 mm², 250 V, F/UTP screening, PVC sheath.

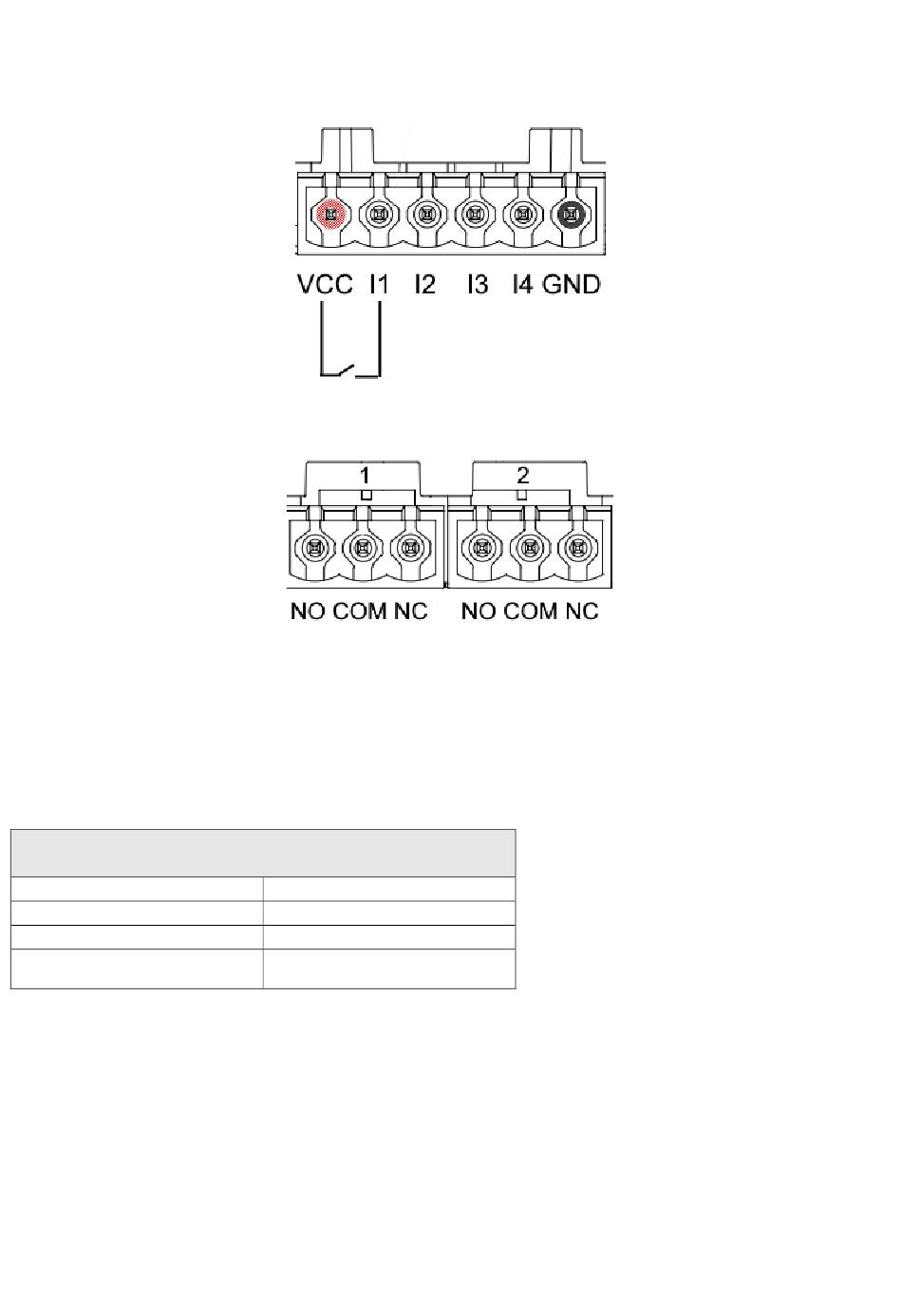

Figure 9F – OUT 1 3-pole and OUT2 3-pole terminal board
(OUT1,OUT2)
NO, NC
230 VAC
0.205-3.31 [mm²]
24-12 [AWG]
ENGLISH
3 A
60
