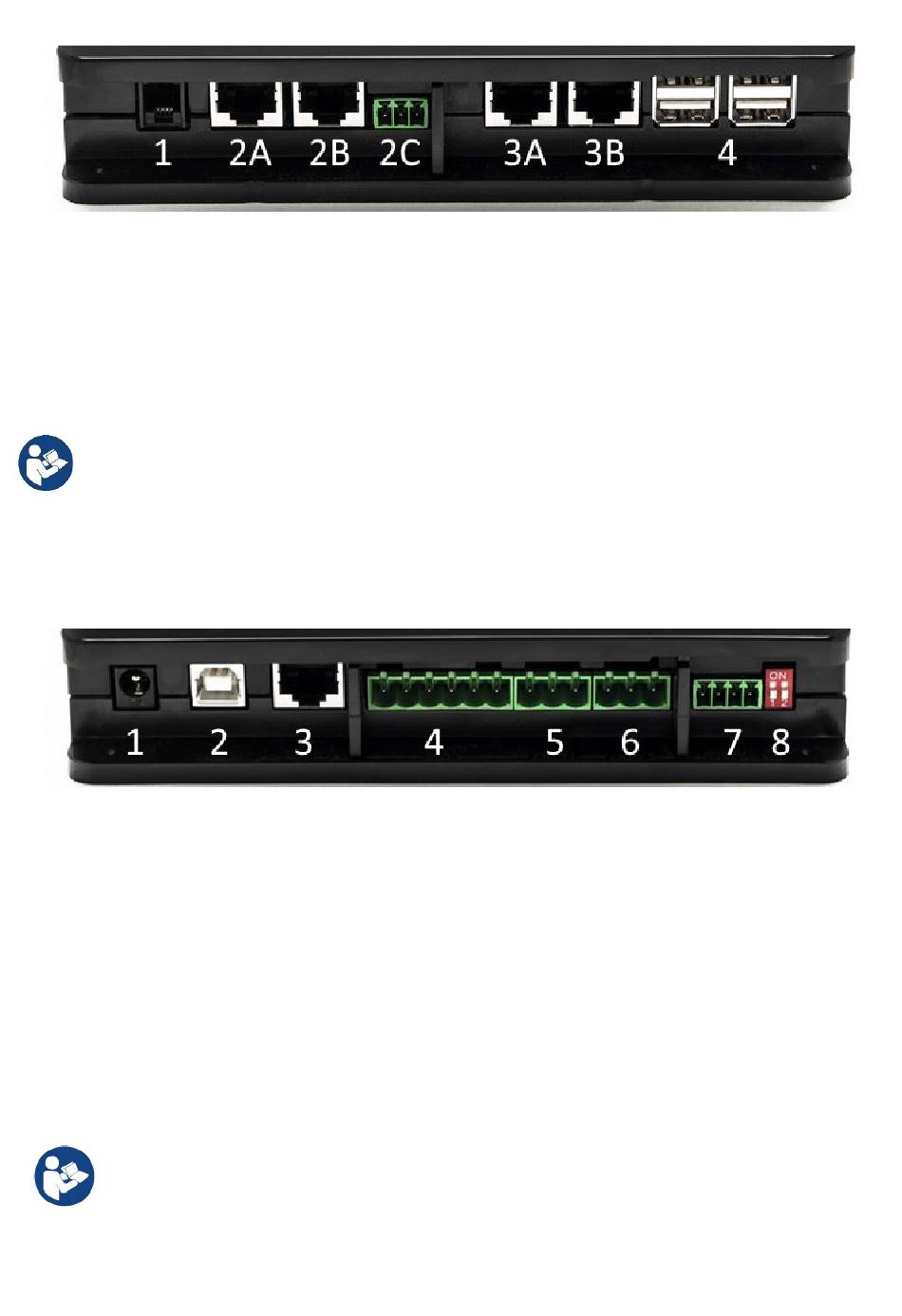

Front View; Rear View - DAB DCONNECT BOX Anleitung

1. Serial Port.
2. Can Bus Port 1:
A for ADAC/MCE.
B for ADAC/MCE.
C for ACTIVE DRIVER PLUS.
3. Can Bus Port 2:
A for ADAC/MCE.
B for ADAC/MCE.
Note: The ports 2A, 2B, 2C are in parallel and it is possible to connect only identical devices.
The ports 3A, 3B, are in parallel and it is possible to connect only identical devices. If port
2C is used to connect an Active Driver Plus, it will not be possible to use ports 2A or 2B to
connect ADAC/MCE. In this case use the ports 3A or 3B.
4. USB Ports: EBOX/Expansions: USB Modbus Slave Adapter.

3.1.6 Front View:

1. Power supply / Power Jack.
2. USB Host (power supply only).
3. Ethernet Port: LAN cable connection.
4. I/O.
5. Relay A.
6. Relay B.
7.
Modbus (master): Evoplus / Fire-fighting.
8. Dip Switch: Modbus Master Configuration.

3.1.7 Rear View:

1. Housing for DIN bar mounting bracket.
2. Holes for wall mounting fixtures.
3. Rubber feet for mounting on flat surface.
4. Technical data plate housing
Check the revision of the product you have because it will be requested during point-
to-point configuration by the DAB DConnect APP
