ENGLISH

4. Wall Mounting:

Remove the front frame of the DConnect Box applying slight force.
On the four corners of the product you will see 4 cuts in the plastic.
Strike gently with a punch or other suitable pointed tool to free the hole.
Mark the wall with a pencil in the points corresponding to the four holes created.
Drill holes as usual and secure the DConnect Box to the wall fixtures.

5. DIN Bar Panel Mounting:

Screw the bracket supplied onto the bottom of the DConnect Box to ensure an easy connection of the panel
to the DIN bar.

6. Commissioning:

Select one of the connection options.

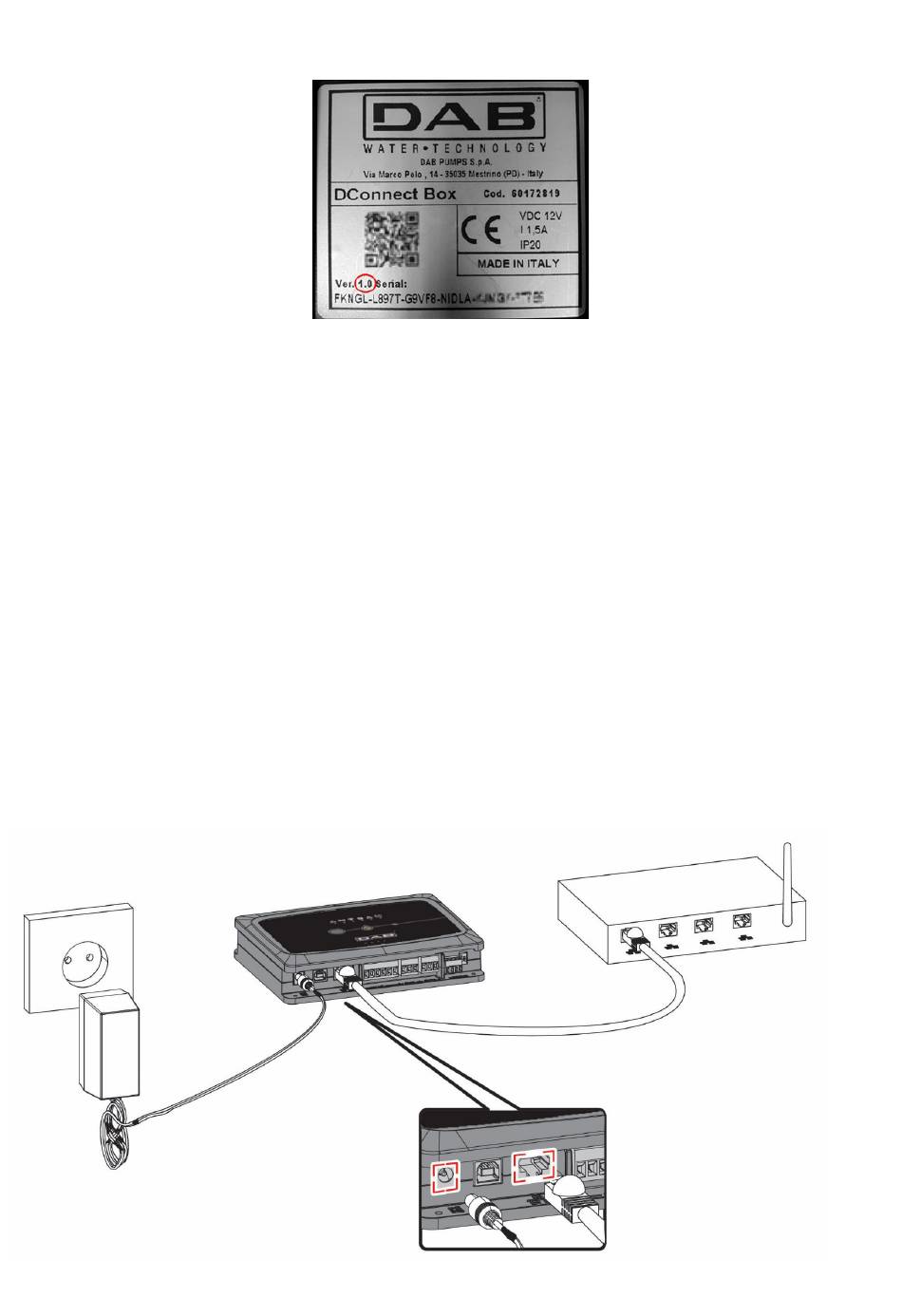

6.1 Connection by LAN network cable
