10.5 Example of DConnect Box connection with MCE

Before starting work, disconnect the power from the supply line and use only the recommended
cables and accessories.
Initial Requirements:
• Make sure that the product is set up for DConnect and that the appropriate symbol appears on the
box.
•
Manual of the product to be connected.
• Special network cable available as product accessory.
The connection between MCE and the DConnect Box requires the use of the special cable
available as an accessory.
1. Make sure that the product is set up for DConnect and that the appropriate symbol appears
on the box.
2. Remove the front panel of the MCE (refer to the product manual).
3. Fix the cable gland of the connecting cable to the body of the product.
4. Insert the other end of the connecting cable in one of the ports CANBUS1 or CANBUS2 in
the rear panel of the DConnect Box. See photo and respective note.
5. Power the products.
Start the DAB DConnect APP and configure the product.
6.

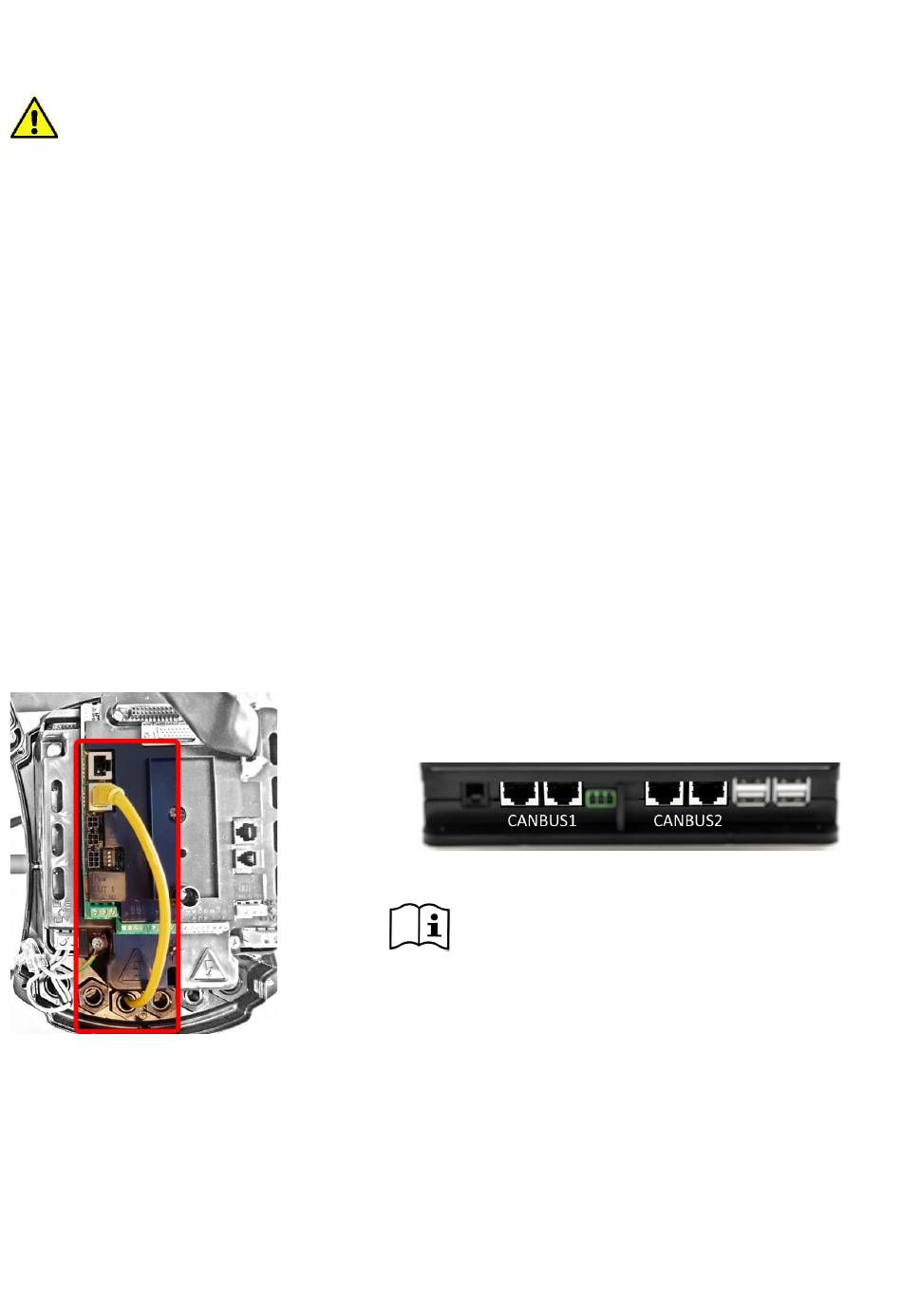

Figure 8 – Example of connection of MCE and DConnect Box to the ports CANBUS 1 and CANBUS 2.
ENGLISH
Note: The ports 1 and 2 indicated are in
parallel and it is possible to connect only identical
devices.
If the ports 1 are used to connect ADAC/MCE it will
not be possible to connect the ACTIVE DRIVER PLUS.
