3. Panoramic View of the Product:

3.1 View from Above:

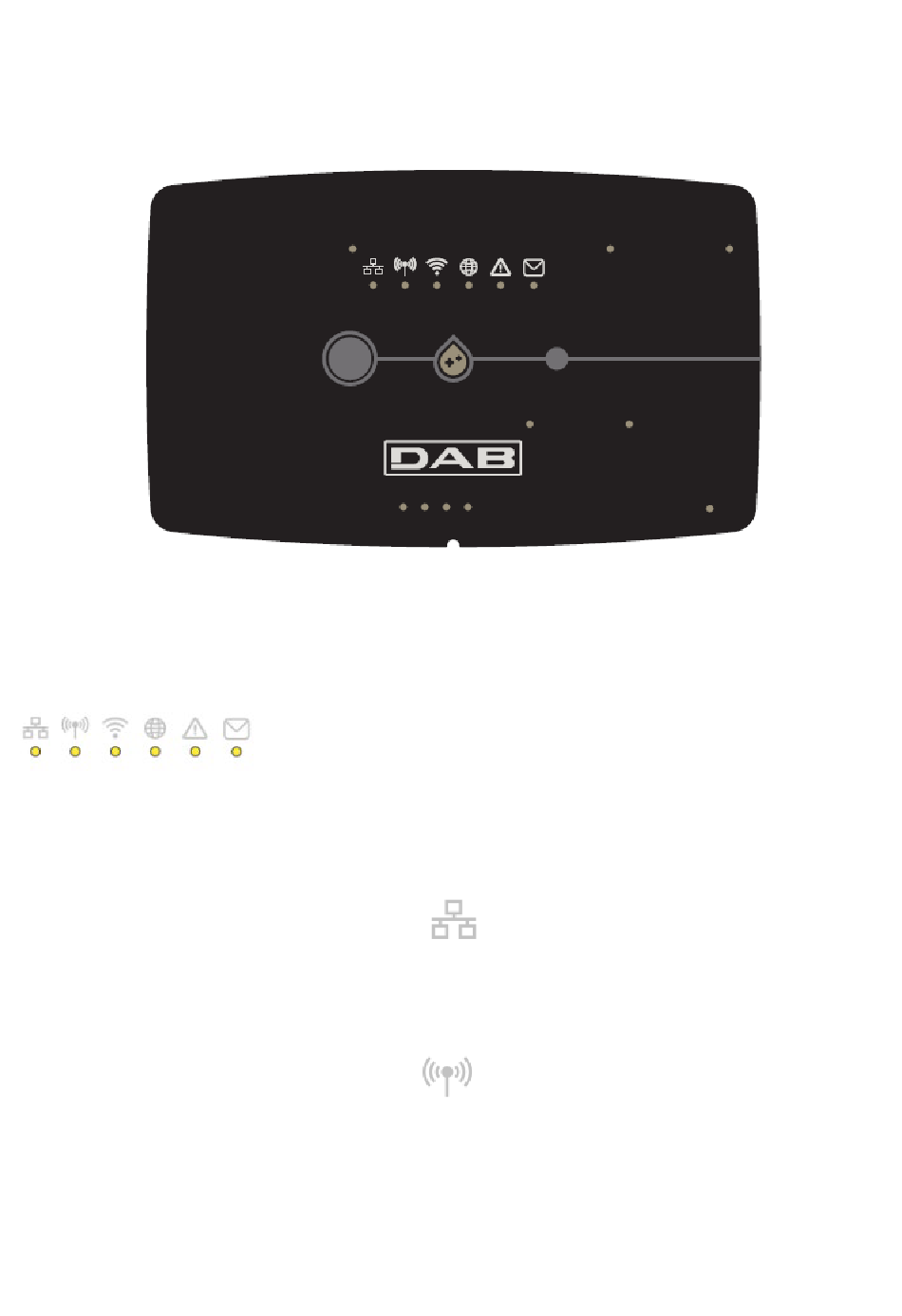

Led Positions

3.1.1 Buttons:

On the DConnect Box there are 2 buttons for interacting with the product, follow the instructions in the
Dconnect APP and in this manual.
3.1.2 DConnect Led Bar:
There are 6 Leds on the top of the DConnect BOX which are lit with a fixed light or blink to indicate particular
connection statuses or events. Specifically:

LAN Status Led:

•
Indicates if it is connected to the LAN network.

• Wireless Status Led:

If lit with fixed light indicates when the DConnect Box communicates with the DAB devices connected via
Wireless (e.g. E.syline).
If blinking, it indicates that it is being associated with the DAB devices connected via Wireless (e.g. E.syline).
If off, it indicates that there is no association with the DAB devices connected via Wireless (e.g. E.syline).
• Wi-Fi Status:
If lit, it indicates that the DConnect Box is connected via WiFi to an Access Point.
If blinking, it indicates that the DConnect Box is in Point-to-Point configuration mode, for example in the initial
configuration phase or after having held down the 2 buttons of the DConnect Box .
