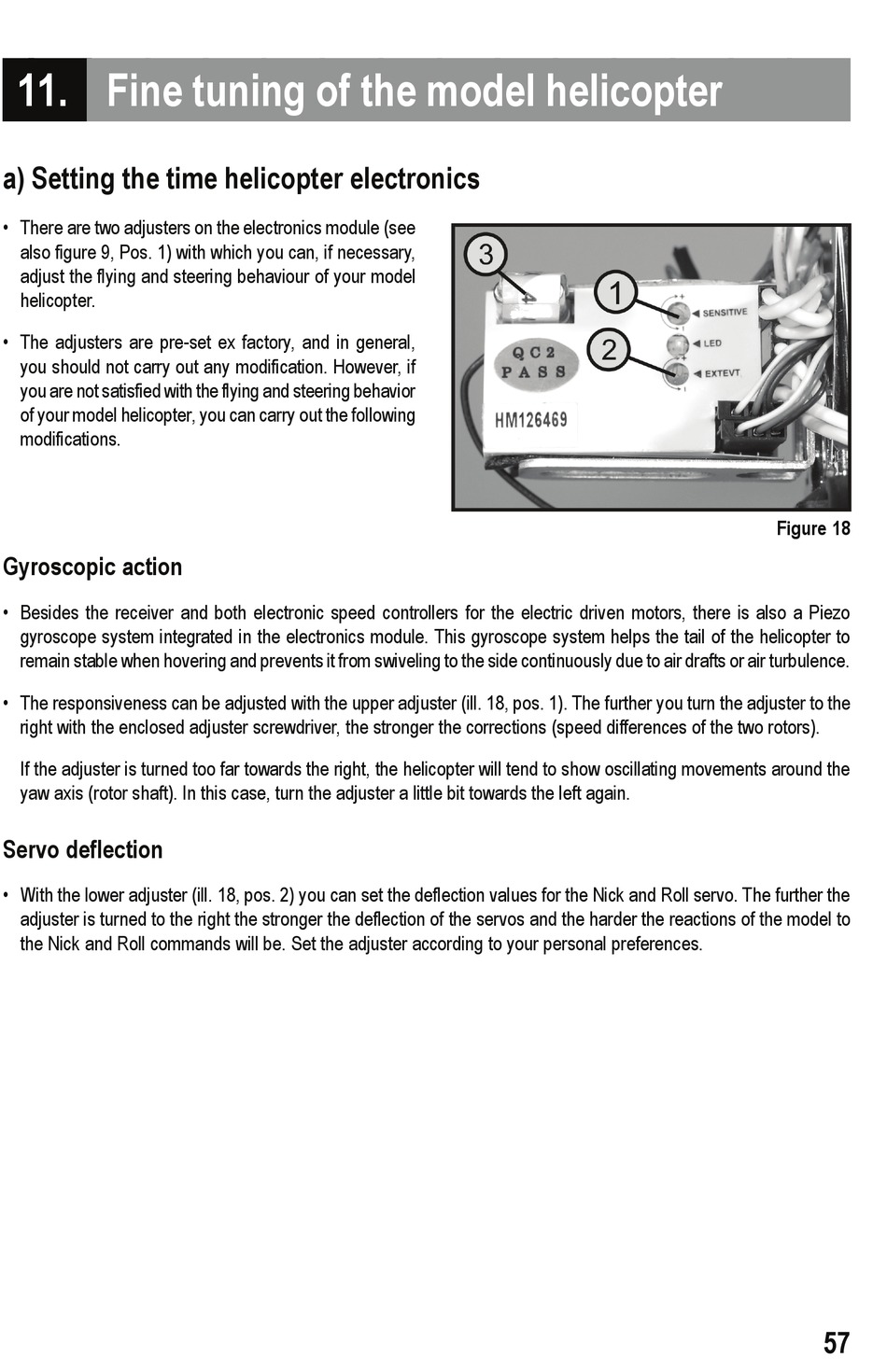

11. Fine tuning of the model helicopter

a) Setting the time helicopter electronics
• There are two adjusters on the electronics module (see
also figure 9, Pos. 1) with which you can, if necessary,
adjust the flying and steering behaviour of your model
helicopter.
• The adjusters are pre-set ex factory, and in general,
you should not carry out any modification. However, if
you are not satisfied with the flying and steering behavior
of your model helicopter, you can carry out the following
modifications.

Gyroscopic action

• Besides the receiver and both electronic speed controllers for the electric driven motors, there is also a Piezo
gyroscope system integrated in the electronics module. This gyroscope system helps the tail of the helicopter to
remain stable when hovering and prevents it from swiveling to the side continuously due to air drafts or air turbulence.
• The responsiveness can be adjusted with the upper adjuster (ill. 18, pos. 1). The further you turn the adjuster to the
right with the enclosed adjuster screwdriver, the stronger the corrections (speed differences of the two rotors).
If the adjuster is turned too far towards the right, the helicopter will tend to show oscillating movements around the
yaw axis (rotor shaft). In this case, turn the adjuster a little bit towards the left again.
Servo deflection
• With the lower adjuster (ill. 18, pos. 2) you can set the deflection values for the Nick and Roll servo. The further the
adjuster is turned to the right the stronger the deflection of the servos and the harder the reactions of the model to
the Nick and Roll commands will be. Set the adjuster according to your personal preferences.
Figure 18
