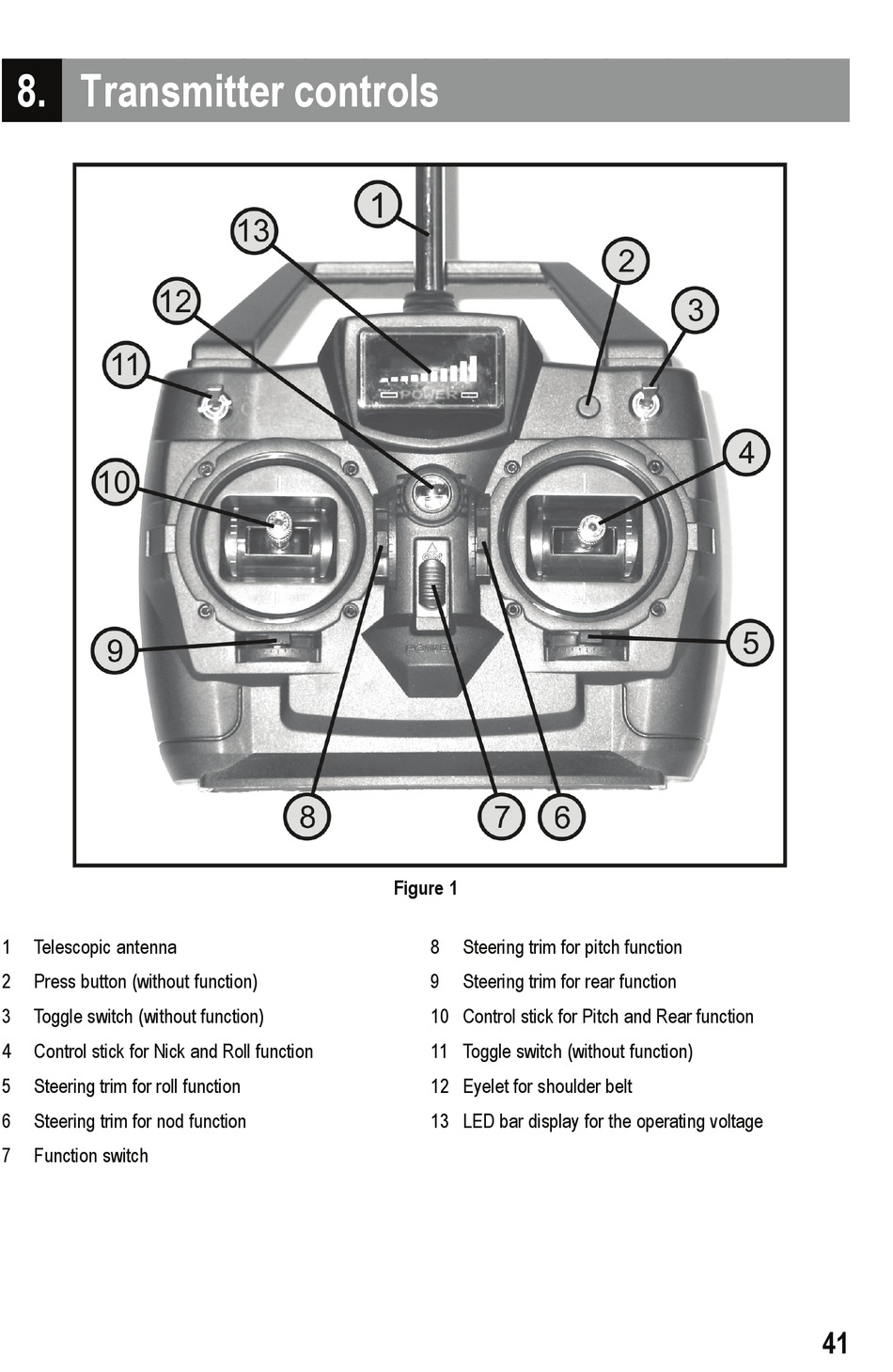

8. Transmitter controls

1 Telescopic antenna
2 Press button (without function)
3 Toggle switch (without function)
4 Control stick for Nick and Roll function
5 Steering trim for roll function
6 Steering trim for nod function
7 Function switch
Figure 1
8 Steering trim for pitch function
9 Steering trim for rear function
10 Control stick for Pitch and Rear function
11 Toggle switch (without function)
12 Eyelet for shoulder belt
13 LED bar display for the operating voltage
