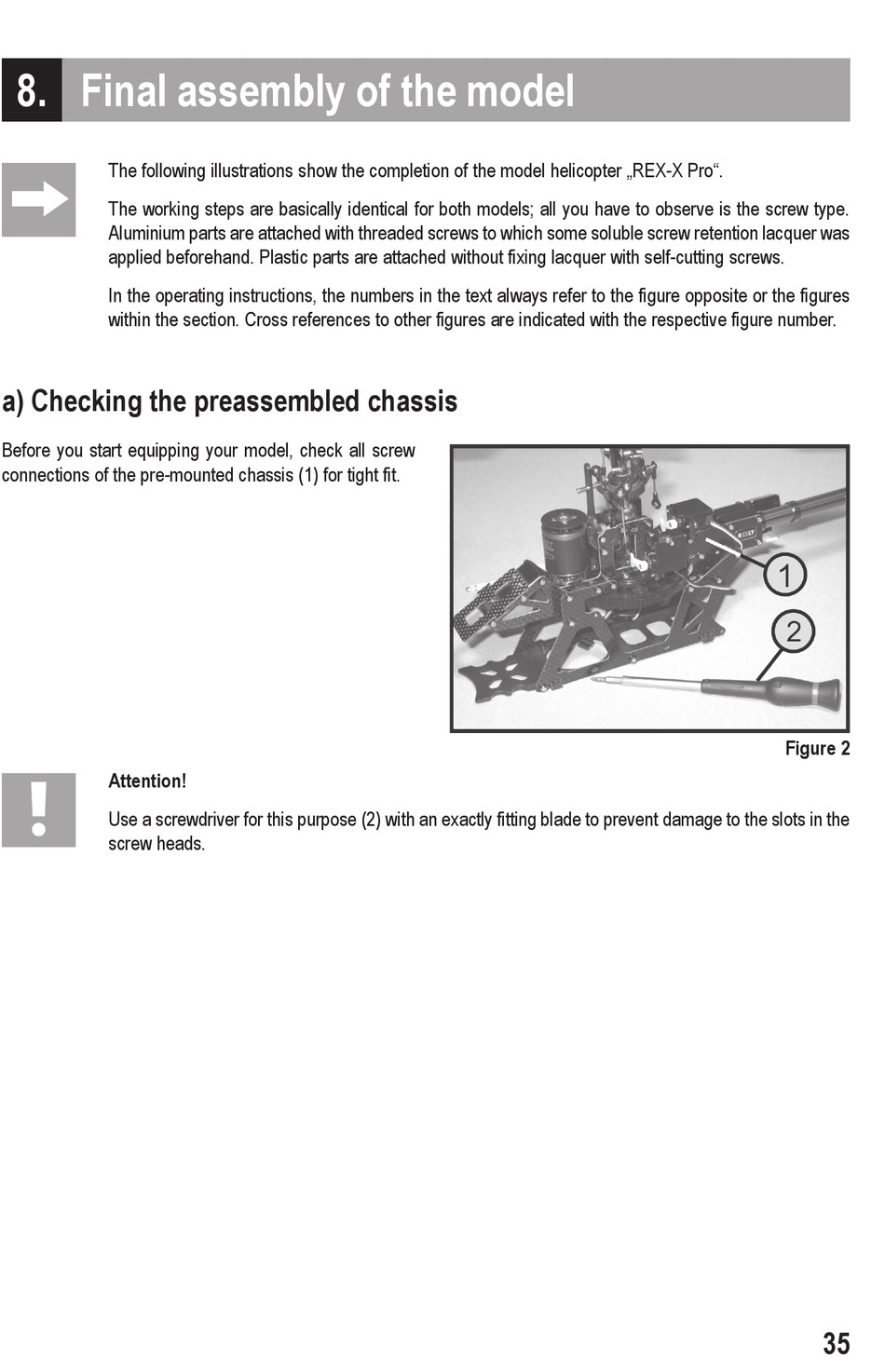

8. Final assembly of the model

The following illustrations show the completion of the model helicopter „REX-X Pro".
The working steps are basically identical for both models; all you have to observe is the screw type.
Aluminium parts are attached with threaded screws to which some soluble screw retention lacquer was
applied beforehand. Plastic parts are attached without fixing lacquer with self-cutting screws.
In the operating instructions, the numbers in the text always refer to the figure opposite or the figures
within the section. Cross references to other figures are indicated with the respective figure number.

a) Checking the preassembled chassis

Before you start equipping your model, check all screw
connections of the pre-mounted chassis (1) for tight fit.
Attention!
Use a screwdriver for this purpose (2) with an exactly fitting blade to prevent damage to the slots in the
screw heads.
Figure 2
35
