7890 Series GC Site Preparation
Table 1 Installation kits (continued)
Kit
Recommended for TCD/ECD, MS, and MSD:
GC Supply Gas Installation Kit
Gas Clean Filter kit GC-MS 1/8in.,1/pk
You must also provide the fittings and reducers required to convert the
cylinder regulator fitting (for example, 1/4-inch male NPT) to the 1/8-inch
female Swagelok fitting needed to connect to the instrument. These fittings are
not included with the GC. These fittings are not included with the installation
kits. See
10
Part number Kit contents

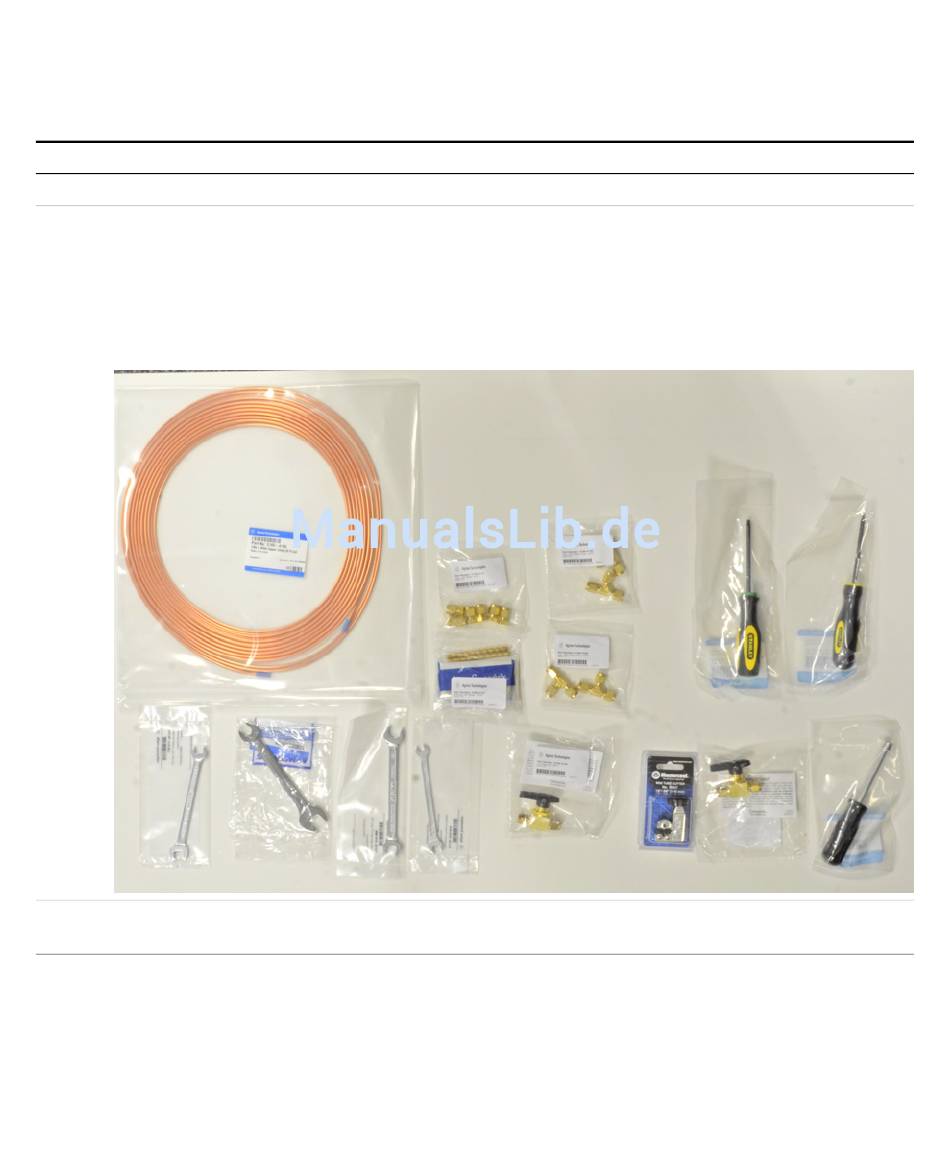

19199M Includes 1/8-inch brass nuts and ferrules (20), copper tubing,
1/8-inch brass tees, tubing cutter, 1/8-inch brass caps, 7-mm
nut driver, T-10 Torx driver, T-20 Torx driver, 4 open-end
wrenches, and 1/8-inch ball valve
(For TCD/ECD, also order an additional Gas Clean Filter
CP17974.)
CP17974 Gas Clean filter kit with 1/8-inch fittings (order 2 if using
separate makeup and carrier gas supplies).
"Gas Plumbing" on page 43 for part information.
GC, GC/MS, and ALS Site Preparation Guide
