7890 Series GC Site Preparation
98 cm (3.2 ft)
7010 MS
Depth: 92 cm (3 ft)

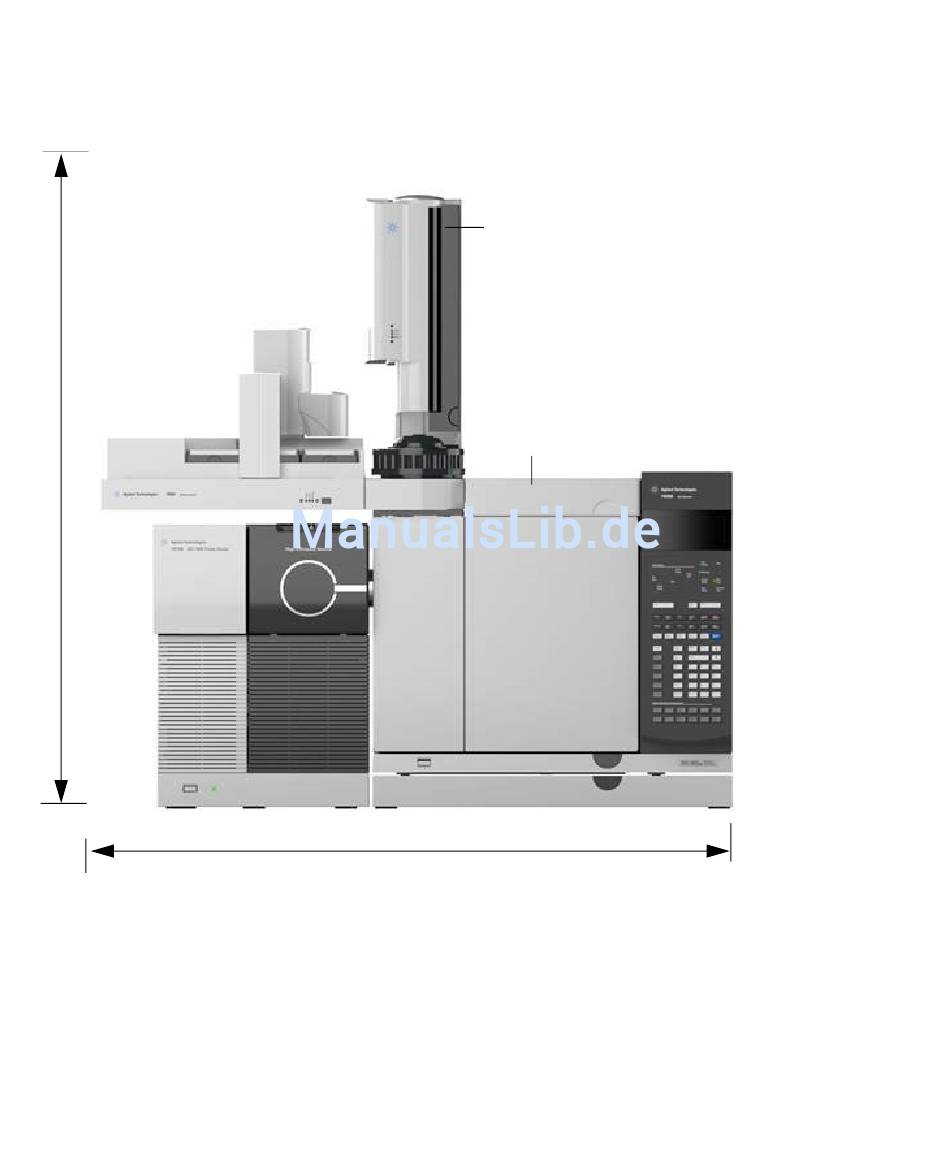

Figure 2 Front view of example installation, 7890A GC/7010 system with 7693A ALS. Note that GC and ALS
bench space requirements are the same, with or without an MSD.
A 7890 Series system that includes a GC, a Q-TOF MS, an ALS, and a computer
would require about 197 cm (6.5 ft) of bench space that is at least 92 cm (3 ft)
deep. See
277 cm (9.2 ft) of bench space should be available for a 7200/7250 Q-TOF
GC/MS system. In addition, the Q-TOF requires 30 cm (1 ft) of space behind
16
168 cm (5.5 ft)
Figure 3. Allowing for operational access and a printer, a total of
7693 ALS
7890A GC
GC, GC/MS, and ALS Site Preparation Guide
