Table 52 Required instrument height, width, depth, and weight (continued)
Product
• GC with 7693A ALS tray
• GC with 7650A ALS injector
• GC with 7683B ALS injector
• GC with 7683B ALS tray
A 7820 MSD system that includes a GC, ALS injector, 5977 or 5975 MSD and a
computer would require about 165 cm (5 ft 5 in.) of bench space. Some repairs
to the GC will also require access to the back of the instrument.
Foreline MSD
pump

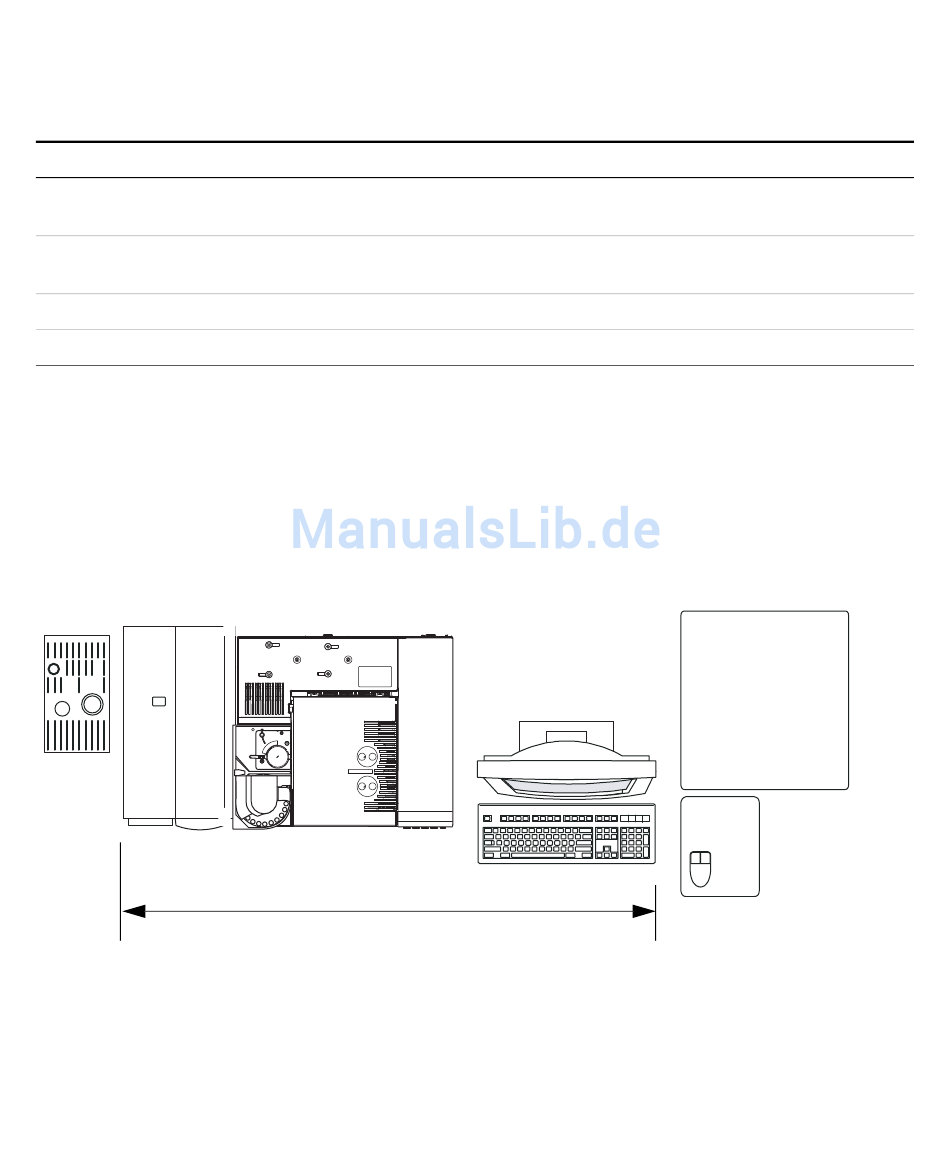

Figure 8 Top view of typical installation (7820A GC system)
Note that the length of the quadrupole vacuum hose is 130 cm (4 ft 3 in) from
the high vacuum pump to the foreline pump, and the length of the foreline
pump power cord is 2 m (6 ft 6 in).
GC, GC/MS, and ALS Site Preparation Guide
Height
GC
165 cm (5 ft 5 in.)
Width
Requires 43 cm (16.8 in) left of the GC
Requires 4.2 cm (1.7 inch) in front of GC
Requires 50 cm (19.5 in) above the GC
Requires 43.3 cm (17 in) above the GC
Requires 30 cm (12 in) left of the GC
Computer with monitor
7820 MSD Site Preparation
Depth Weight
6.8 kg (15 lb)
each
3.9 kg (8,6 lb)
each
3.1 kg (7 lb) each
3.0 kg (7 lb)
Printer
