Gas Plumbing

All compressed gas cylinders should be securely fastened to an immovable
WA R N I N G
structure or permanent wall. Compressed gases should be stored and handled in
accordance with the relevant safety codes.
Gas cylinders should not be located in the path of heated oven exhaust.
To avoid possible eye injury, wear eye protection when using compressed gas.
Two-stage regulation
Main supply
on/off valve
Main gas supply
Gas Clean filter configuration will vary depending on the
application.

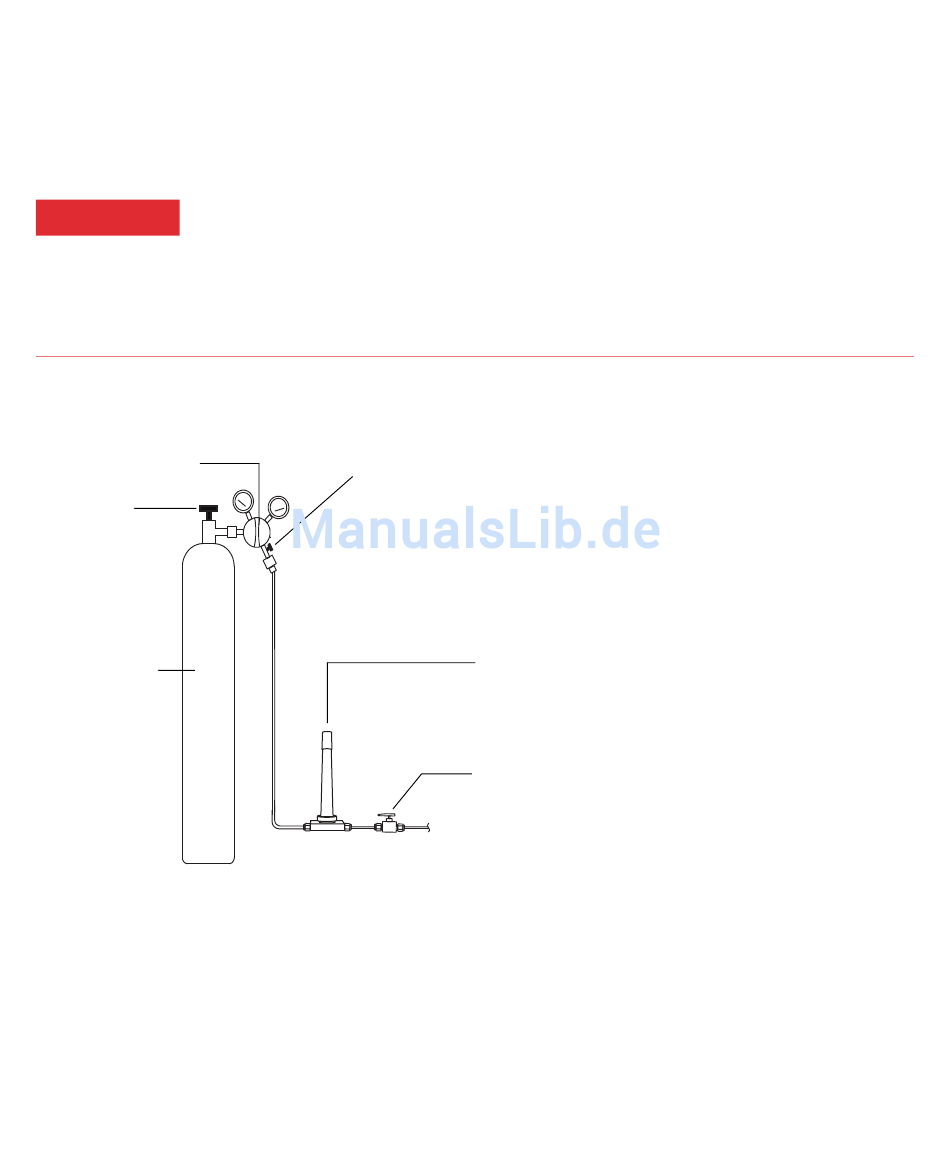

Figure 9 Recommended filters and plumbing configuration from a carrier gas cylinder
GC, GC/MS, and ALS Site Preparation Guide
On/off valve
Gas Clean filter system. See
"Filters and traps"
page 129 for more
information.
Shutoff valve
