Table 31 Required instrument height, width, depth, and weight (continued)
Product
• Foreline pump
Standard
Oil-free (MVP-055)
Oil-free (IDP3)
• GC/MS operational and maintenance access
ALS
• GC with 7693A ALS injector
• GC with 7693A ALS tray
A 6850 system that includes a GC, an ALS injector, and a computer would
require about 138 cm (4 ft 6 in) of bench space. Allowing for operational
access and a printer, a total of 229 cm (7.5 ft) of bench space should be
available for a full GC/MS system. Some repairs to the MSD or to the GC will
also require access to the back of the instrument(s).
Foreline
pump
Figure 6
GC, GC/MS, and ALS Site Preparation Guide
Height
21 cm (8 in)
19 cm (7.5 in)
18 cm (7 in)
GC/MS GC

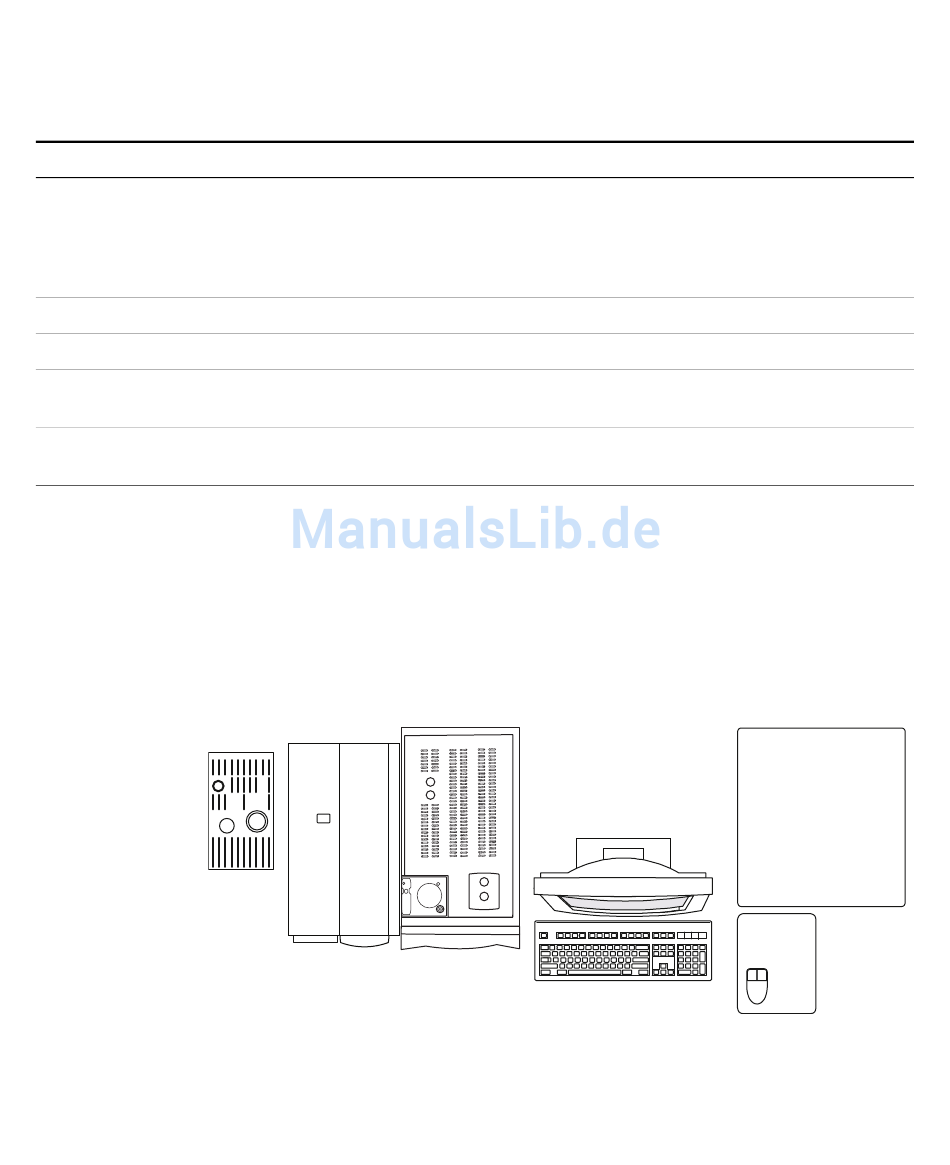

Top view of typical installation (6850 GC/MS system with ALS)
Width Depth
13 cm (5 in) 31 cm (12 in)
32 cm (13 in) 28 cm (11 in)
35 cm (14 in) 14 cm (6 in)
Requires 30 cm (1 ft) to its left
Requires 50 cm (19.5 in) above the GC
Requires 43 cm (16.8 in) left of the GC
Requires 4.2 cm (1.7 inch) in front of GC
Computer with monitor
6850 Series GC Site Preparation
Weight
11 kg (23.1 lb)
16 kg (35.2 lb)
10 kg (21 lb)
3.9 kg (8,6 lb)
each
6.8 kg (15 lb)
each
Printer
