11

PROFINET CONFIGURATION

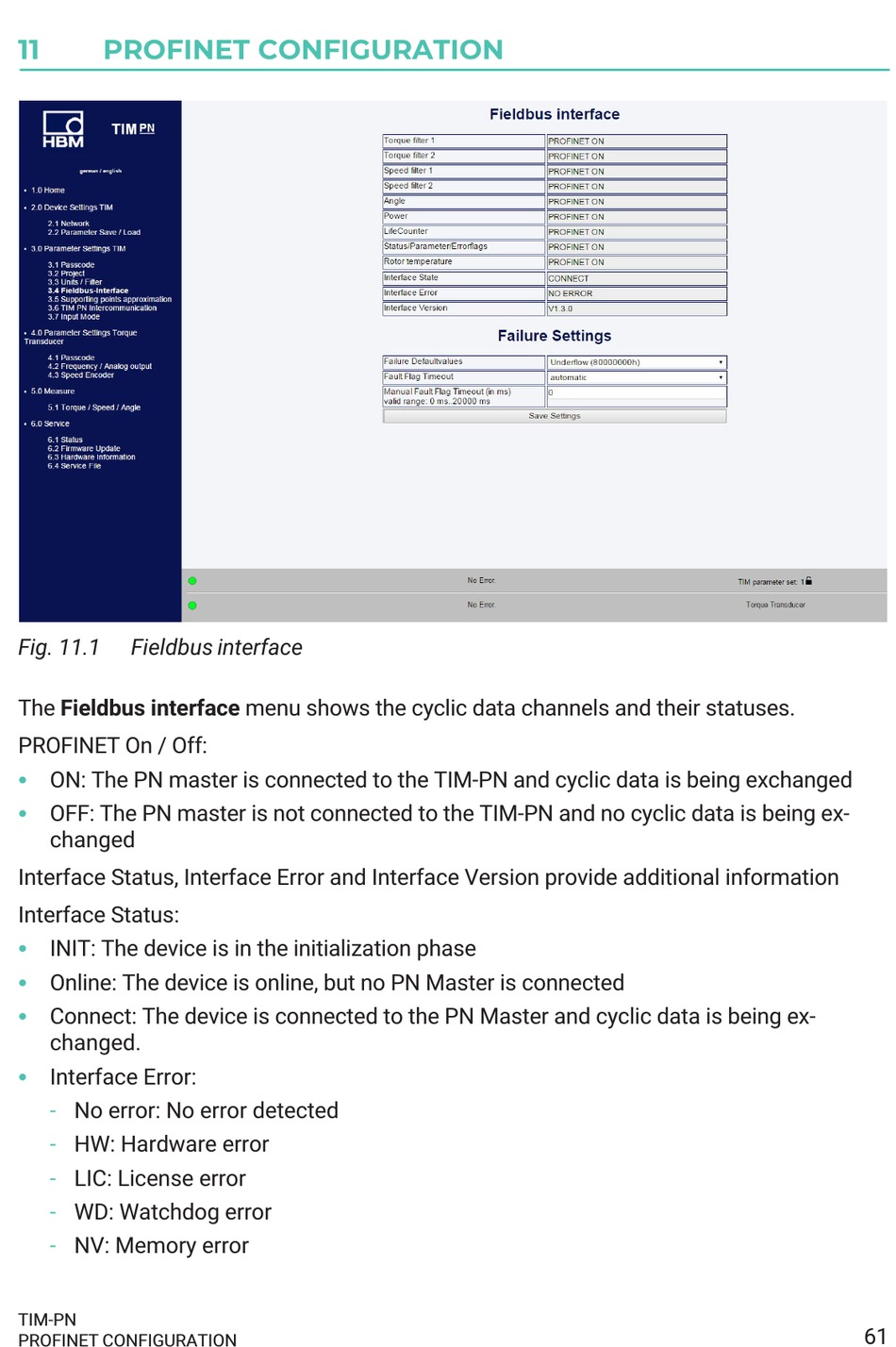

Fig. 11.1 Fieldbus interface
The Fieldbus interface menu shows the cyclic data channels and their statuses.
PROFINET On / Off:
S
ON: The PN master is connected to the TIM-PN and cyclic data is being exchanged
S
OFF: The PN master is not connected to the TIM-PN and no cyclic data is being ex­
changed
Interface Status, Interface Error and Interface Version provide additional information
Interface Status:
S
INIT: The device is in the initialization phase
S
Online: The device is online, but no PN Master is connected
S
Connect: The device is connected to the PN Master and cyclic data is being ex­
changed.
S
Interface Error:
- No error: No error detected
- HW: Hardware error
- LIC: License error
- WD: Watchdog error
- NV: Memory error
TIM-PN
PROFINET CONFIGURATION
61
