Example
Measuring range 1:1
Transmission of torque to
low-pass filter 1 (TP1)

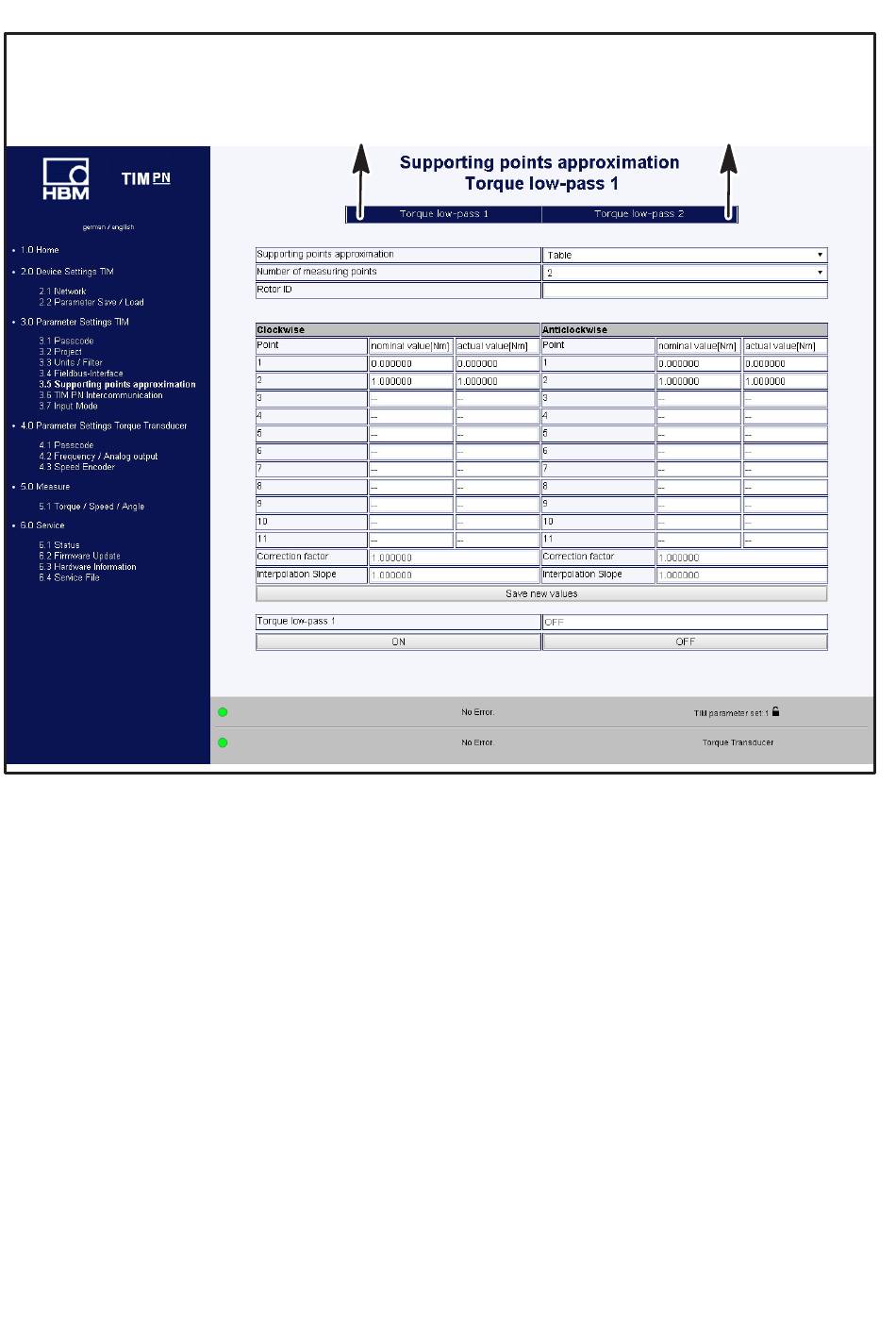

Fig. 10.16 Supporting points approximation for full and partial range calibration
The filter characteristics selected/set in accordance with menu item 3.3 Units and filters
(or section 10.3.3 "Units and filters", page 30) from the the above screenshot are automat­
ically adopted.
Supporting points approximation when using the frequency signal (torque)
After switching the input mode from TMC to Frequency, the physical units in the table
automatically change to setpoint value [Nm] and actual value [Hz]. Proceed as before in
example 1 "Input of interpolation points" and example 2 "Input of interpolation gradient".
42
Measuring range 1:5 / 1:10
Transmission of torque to
low-pass filter 2 (TP2)
