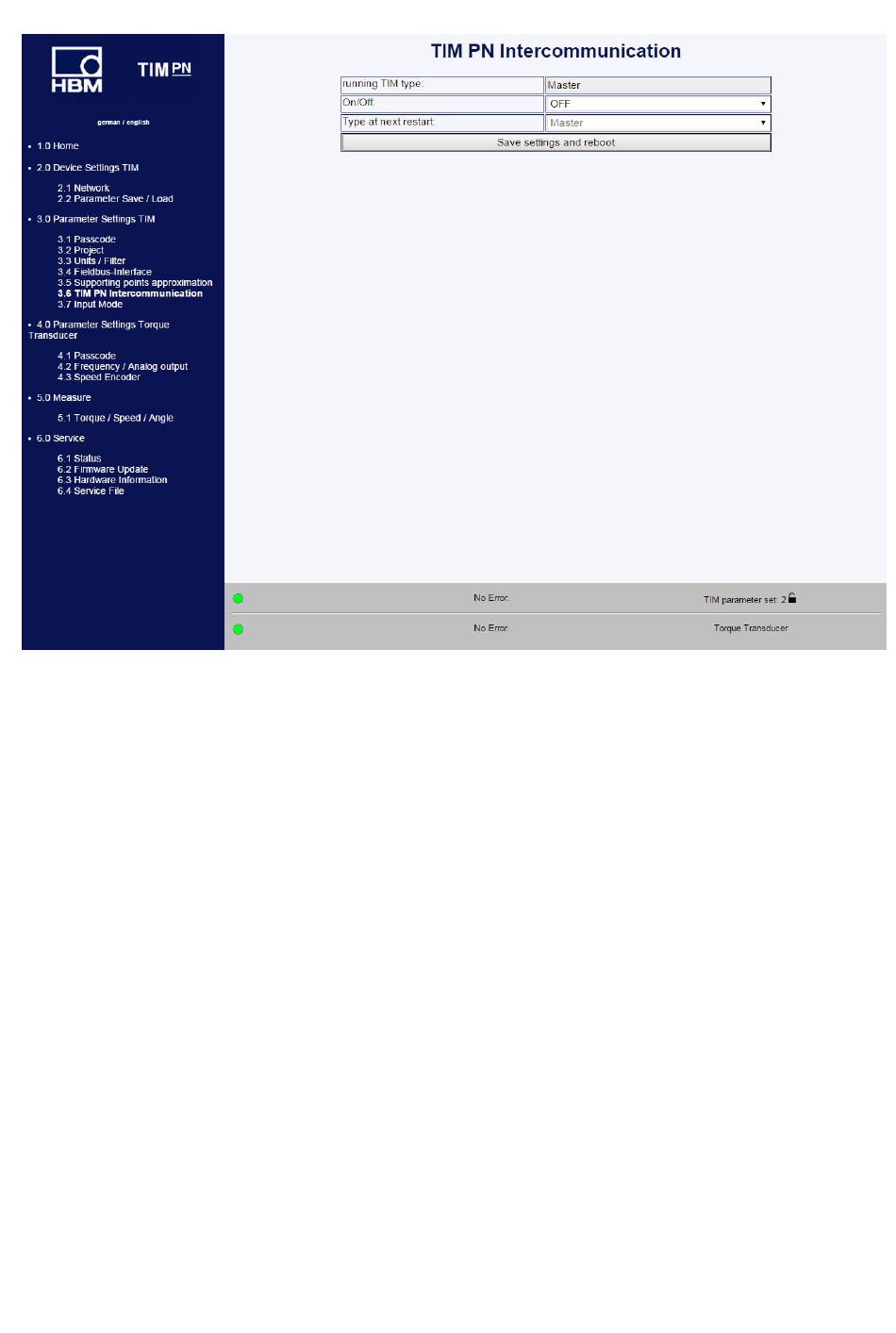

Fig. 10.20 Parameterization of TIM-to-TIM communication in the web server
If the modules are operated via the 10+2 interface, the head-end, i.e. the left-hand mod­
ule, to which the torque transducer is connected, must always be parameterized as the
Super-Master. The module or modules that has/have no connected torque transducers
are then configured as "slave".
TIM-PN intercommunication is designed for the operation of max. 4 torque interface
modules on a torque transducer (see Fig. 10.21).
