In the TIM-PN, the CASMA filter is only available in signal path TP1. In signal path TP1, the
filter can be switched on ć or switched (OFF) to bypass mode.
ON/OFF
TP1
CASMA filter
TP1: PROFINET/UDP

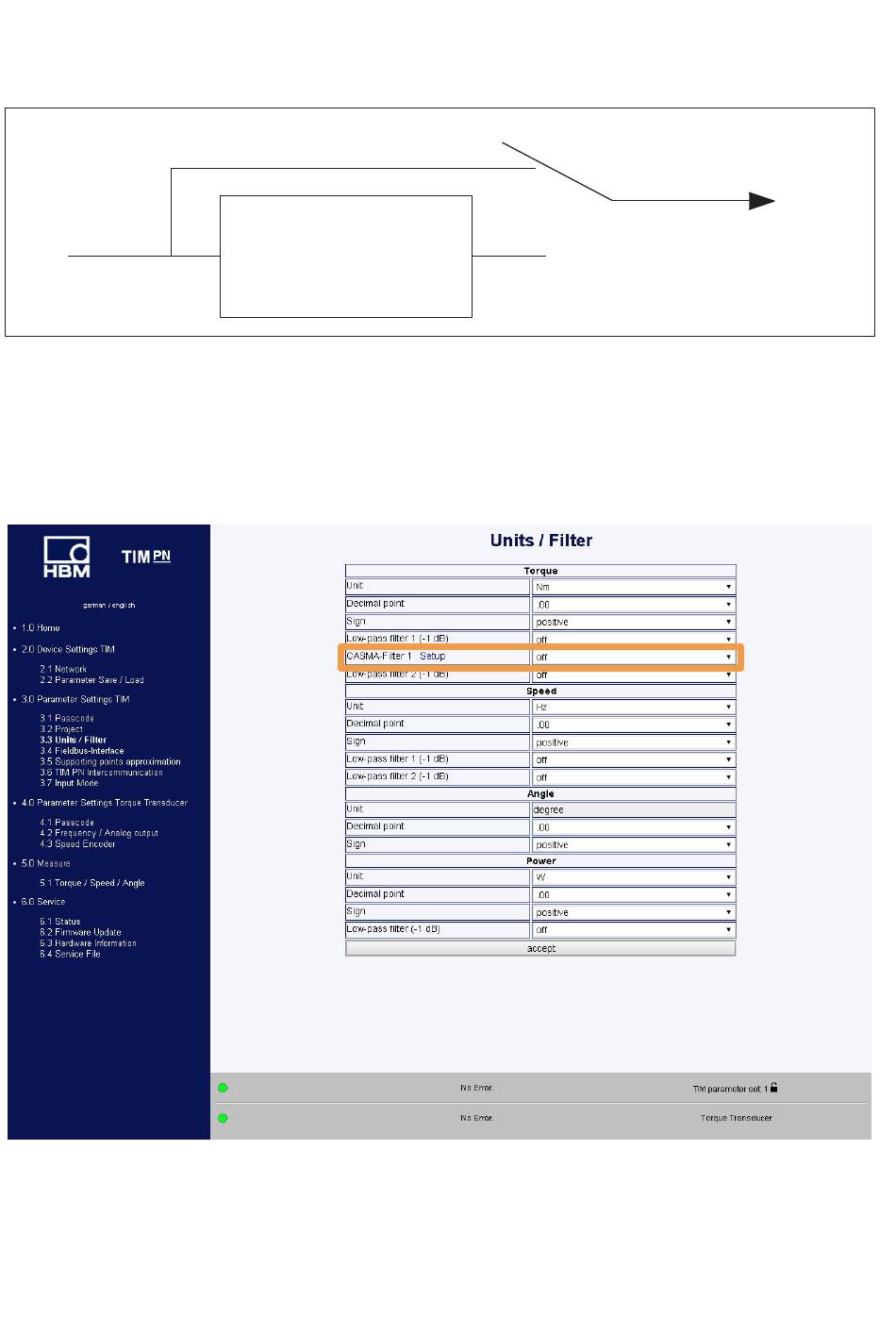

Fig. 10.11 Signal path
Web interface
The required filter parameters are entered via the compiled HTML page and checked for
plausibility. The CASMA filter is parameterized via the "Units and Filters" menu.
Fig. 10.12 CASMA filter 1 OFF/ON and access to the parameterization window
The CASMA filter is parameterized via Parameterization.
