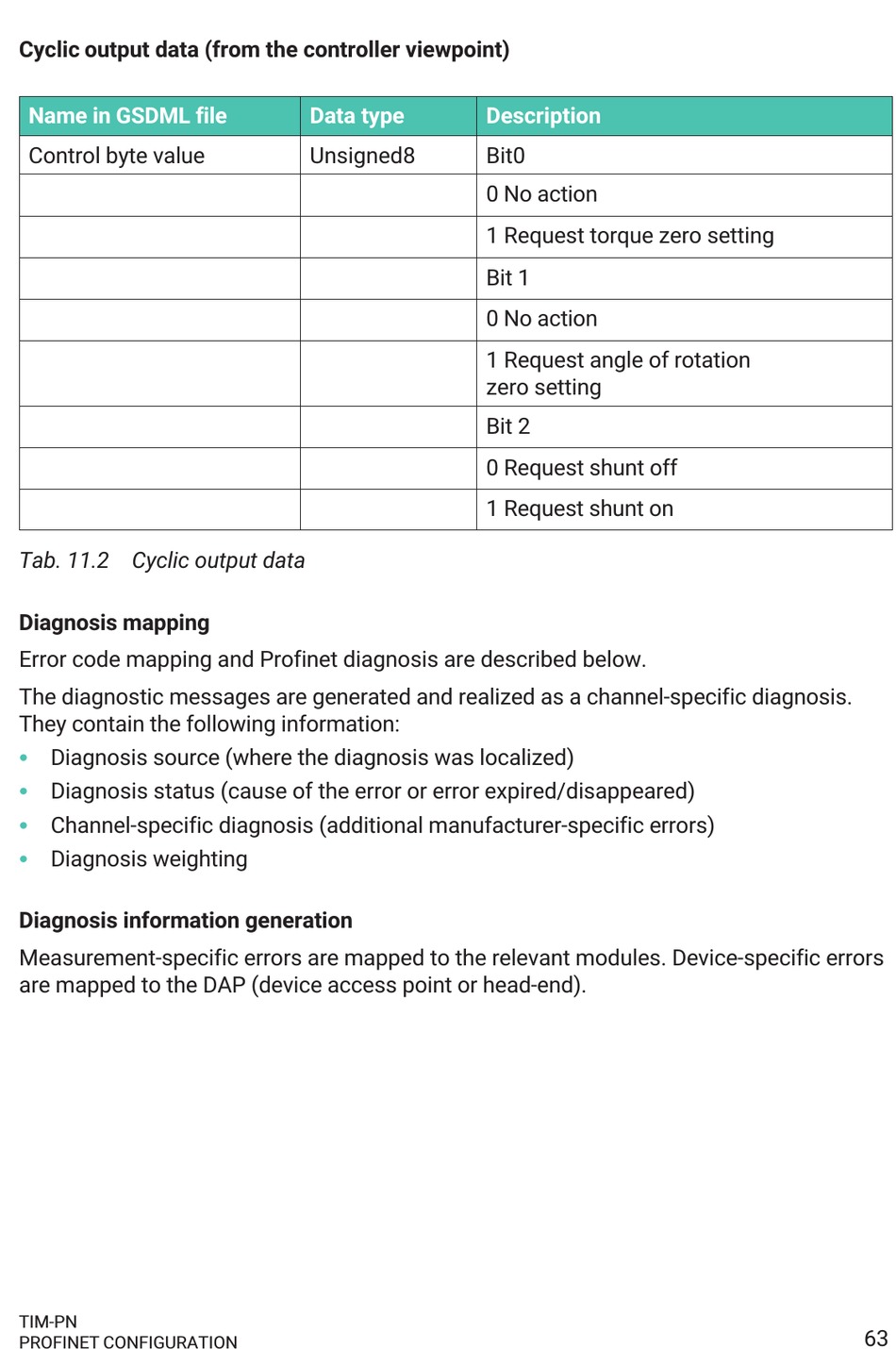

Cyclic output data (from the controller viewpoint)
Name in GSDML file
Control byte value
Tab. 11.2 Cyclic output data
Diagnosis mapping
Error code mapping and Profinet diagnosis are described below.
The diagnostic messages are generated and realized as a channel-specific diagnosis.
They contain the following information:
S
Diagnosis source (where the diagnosis was localized)
S
Diagnosis status (cause of the error or error expired/disappeared)
S
Channel-specific diagnosis (additional manufacturer-specific errors)
S
Diagnosis weighting
Diagnosis information generation
Measurement-specific errors are mapped to the relevant modules. Device-specific errors
are mapped to the DAP (device access point or head-end).
TIM-PN
PROFINET CONFIGURATION
Data type
Unsigned8
Description
Bit0
0 No action
1 Request torque zero setting
Bit 1
0 No action
1 Request angle of rotation
zero setting
Bit 2
0 Request shunt off
1 Request shunt on
63
