Measuring

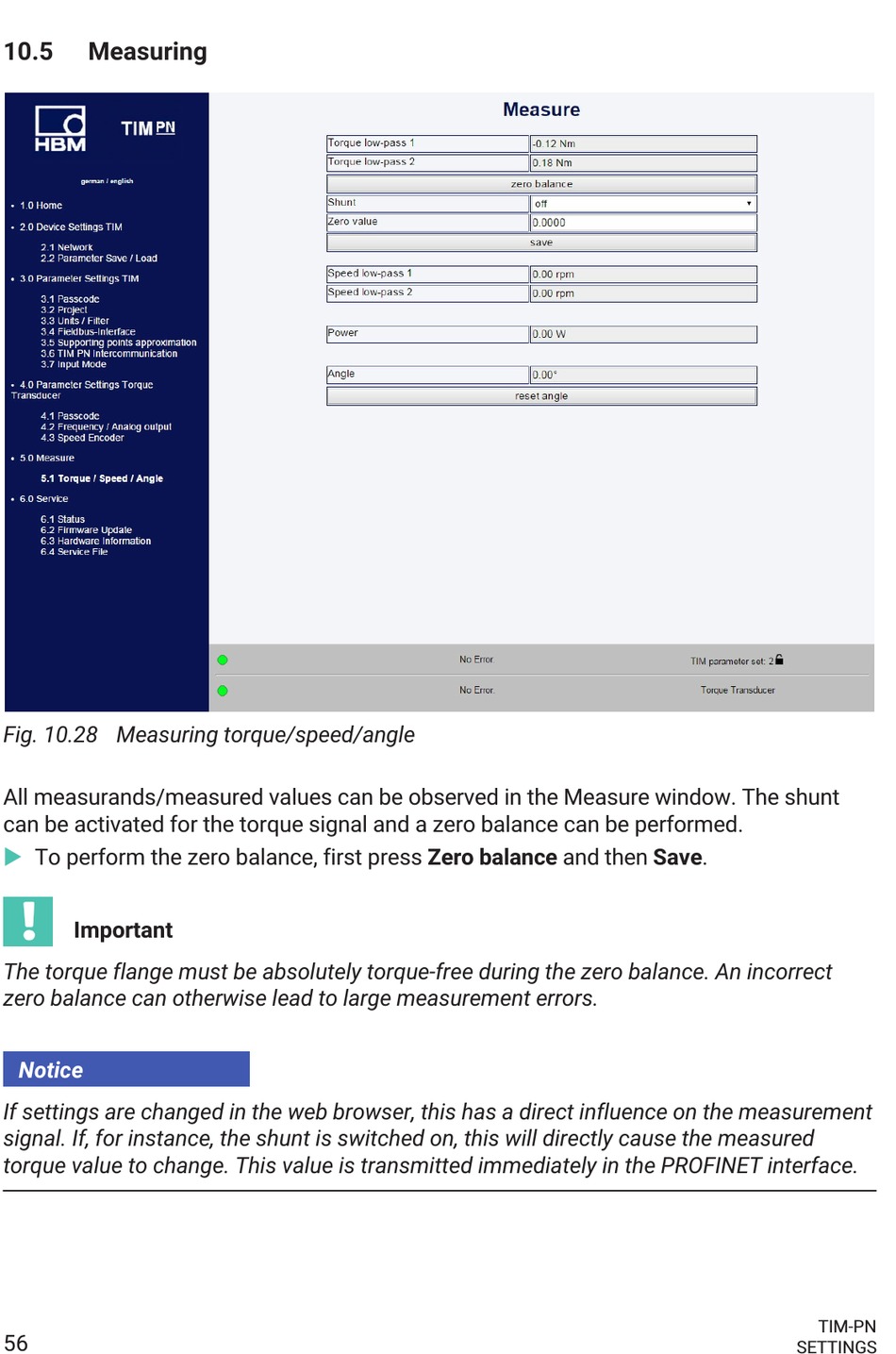

Fig. 10.28 Measuring torque/speed/angle
All measurands/measured values can be observed in the Measure window. The shunt
can be activated for the torque signal and a zero balance can be performed.
u
To perform the zero balance, first press Zero balance and then Save.
Important
The torque flange must be absolutely torque-free during the zero balance. An incorrect
zero balance can otherwise lead to large measurement errors.
Notice
If settings are changed in the web browser, this has a direct influence on the measurement
signal. If, for instance, the shunt is switched on, this will directly cause the measured
torque value to change. This value is transmitted immediately in the PROFINET interface.
