Terminal X2, voltage supply frequency connection
0V
IN
24V
0V
OUT
24V
Terminal X2, voltage supply TMC connection
0V
IN
24V
0V
OUT
24V
Terminal X3, speed encoder
+
0
-
+
DO
-
Terminal X4, torque transducer frequency
RA
RB
TX
RX
TIM-PN
ELECTRICAL CONNECTION

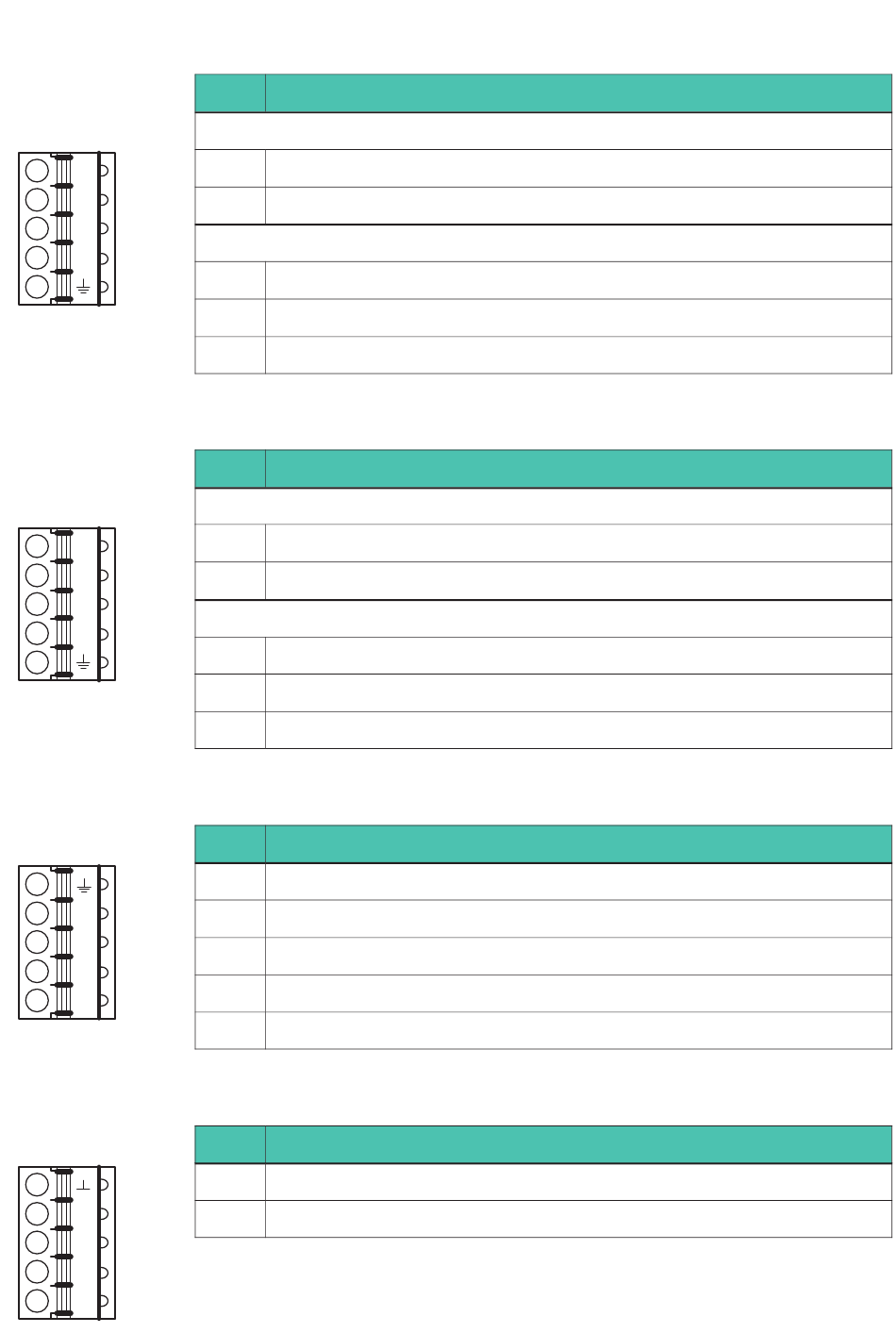

Pin Assignment
Connection for energy supply, input
1 GND (TIM­PN and stator supply)
2 +24 V ±10% supply (TIM­PN and stator)
Output for the supply voltage of the torque transducer
3 GND (looped through from X2­1): color code black
4 +24V (looped through from X2­2): color code blue
5 Shield (TMC), connected with ground
Pin Assignment
Connection for energy supply, input
1 GND (TIM­PN and stator supply)
2 +24 V ±10% supply (TIM­PN and stator)
Output for the supply voltage of the torque transducer
3 GND (looped through from X2­1): color code blue
4 +24V (looped through from X2­2): color code black
5 Shield (TMC), connected with ground
Pin Assignment
1 Shield (speed), connected with ground
2 +, reference signal (1 pulse/revolution), 5V, color code blue
3 -, reference signal (1 pulse/revolution), 5V, color code black
4 Reserved
5 Reserved
Pin Assignment
1 Measurement signal 0V; symmetrical, color code gray
2 RA, torque measurement signal 5V, color code red
