10.4

Torque transducer parameters

10.4.1 Passcode

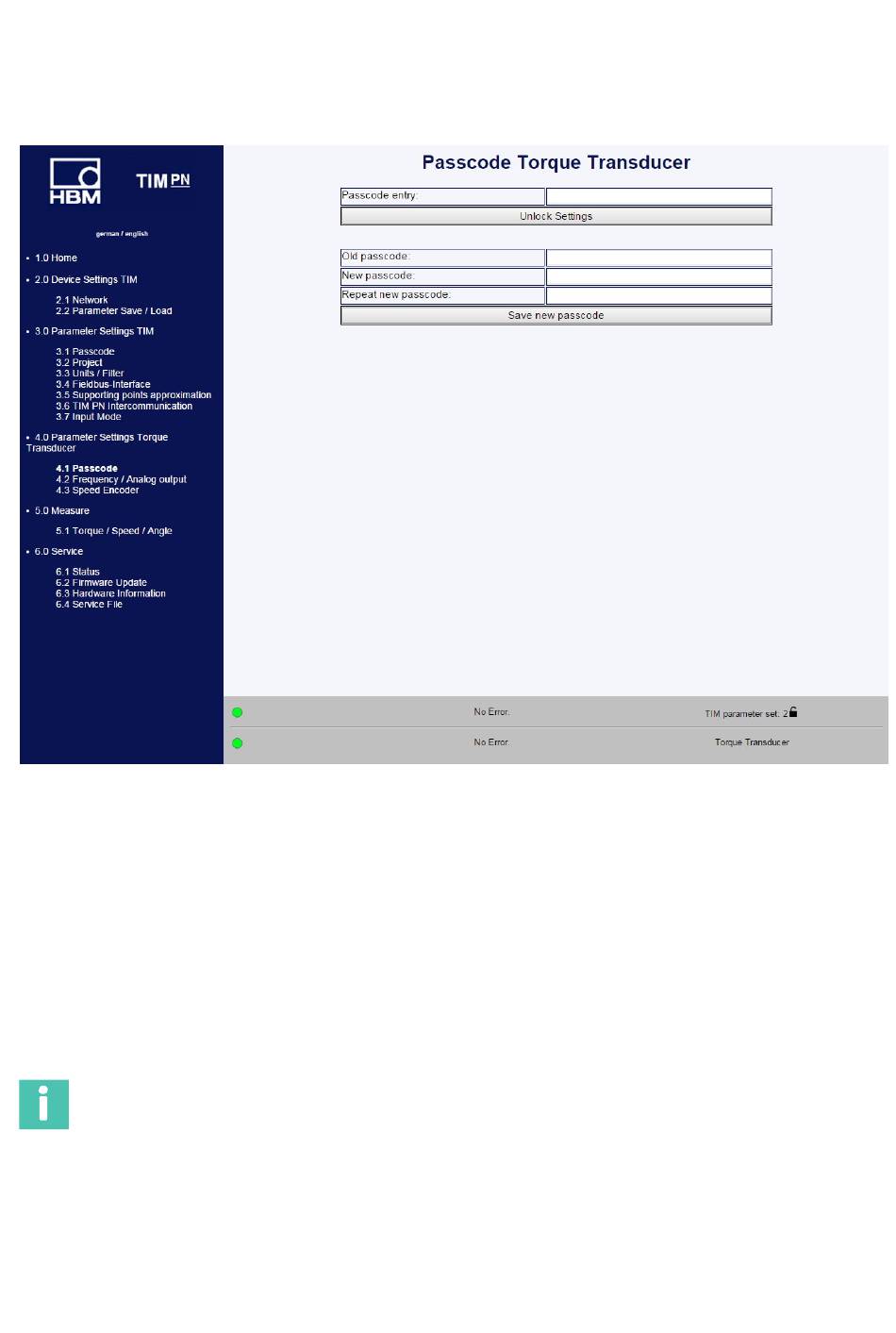

Fig. 10.24 Passcode
You can make settings to the torque transducer in the Passcode entry menu. Various
parameters can also be set here for the connected speed encoder (internal/external).
A passcode is required to set the frequency output in the torque transducer, stator output
connector 1.
In the delivery condition, the passcode is activated and no settings can be made. It is only
possible to change the parameters after pressing the Unlock settings button.
The passcode must be a 4 digit number combination.
Information
The standard delivery passcode is 0000.
The passcode is stored in the stator of the torque transducer. It is thereby independent of
TIM-PN.
