10.3.4 Fieldbus interface

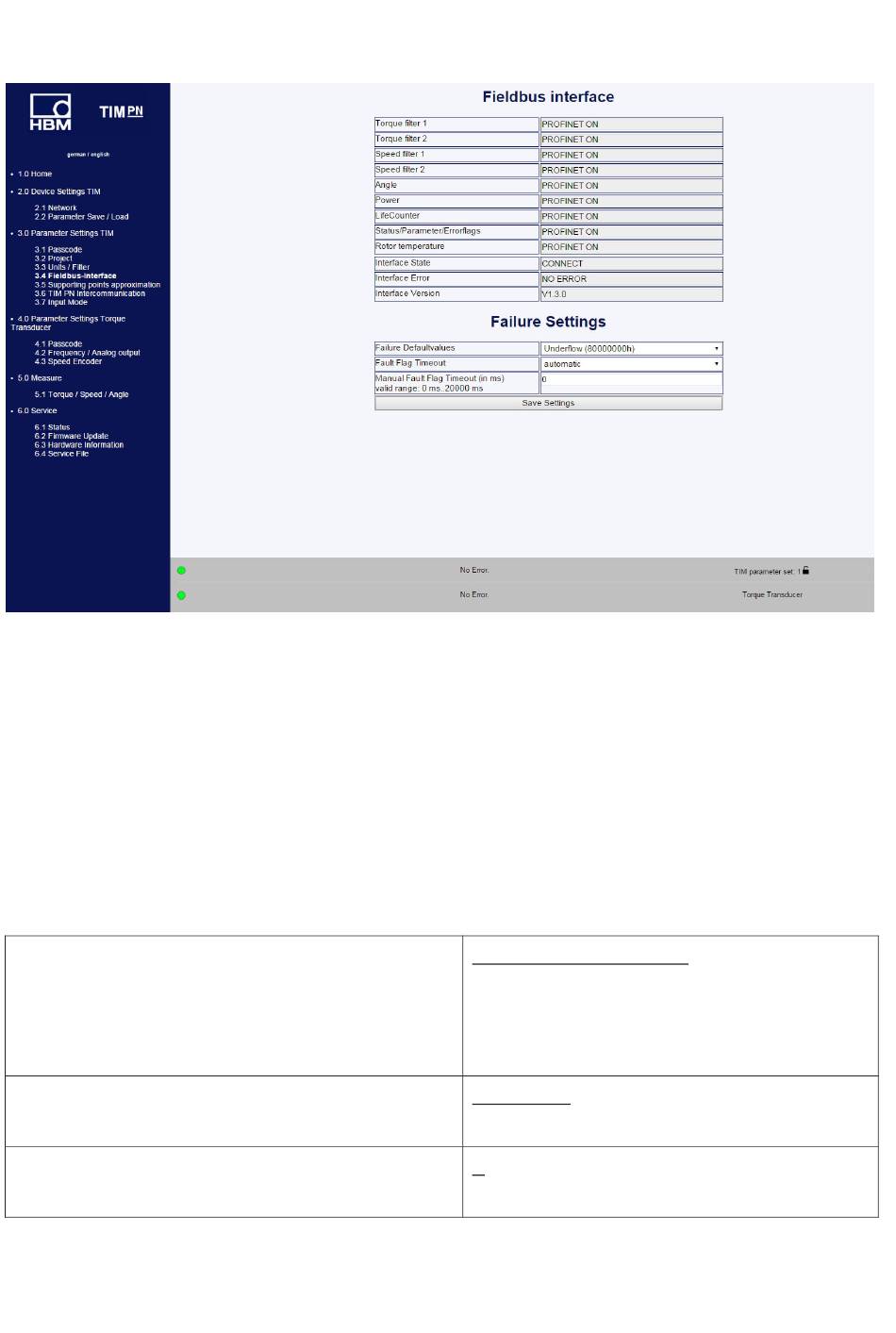

Fig. 10.14 Fieldbus interface
The Fieldbus interface menu shows which channels are actually output on the PROFINET
interface. Depending on which TIM modules (Torque Module, Speed Module) have been
parameterized, the following measured values will be available.
Also see Chapter 11 "PROFINET configuration".
You can specify how the measurement system should react to incorrect measured values
under Failure Settings. The following settings are possible:
Failure settings
Failure specification
Failure display time
Manual failure display time (in ms)
Valid range: 0 to 20000 ms
36
Overflow (7FFFFFFFh)
Underflow (80000000h)
Last valid value
Actual value
automatic; manual
0
TIM-PN
SETTINGS
