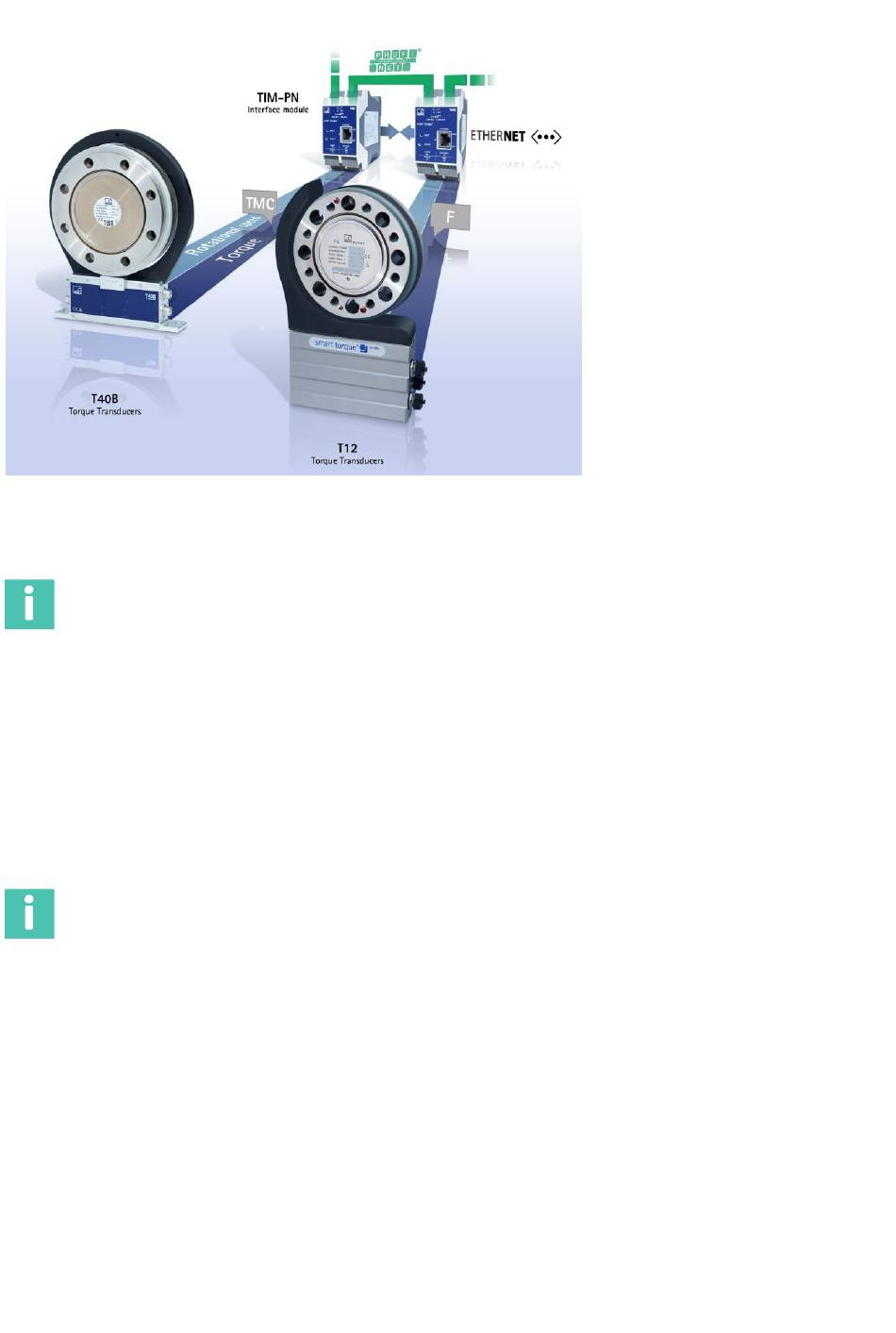

Fig. 10.23 Operating torque transducers with digital interfaces (TMC) and frequency
signals in a network
Information
TMC input mode: All the diagnosis functionalities on PROFINET are available, see
Chapter 11.
"Frequency" input mode: Only the Measured value overflow or underflow ±120% diagnosis
error flag related to the nominal (rated) torque is available. None of the other diagnosis
functionalities for torque are available.
In addition to this, when using the frequency output, it is not possible to trigger the shunt
signal via the TIM-PM.
Information
Frequency mode is suitable for HBM torque transducers
