setup. All the incoming data can be scaled and filtered separately and without reaction,
for example, within the setup (super-master/slave operation/mode).

10.3.7 Input mode

It is possible to adapt the receiving module for the TIM-PN torque signal to the respective
output signals of the connected HBM torque transducers.
Digital signal:
S
TMC
Frequency signal (mid-frequency):
S
10 kHz
S
60 kHz
S
240 kHz

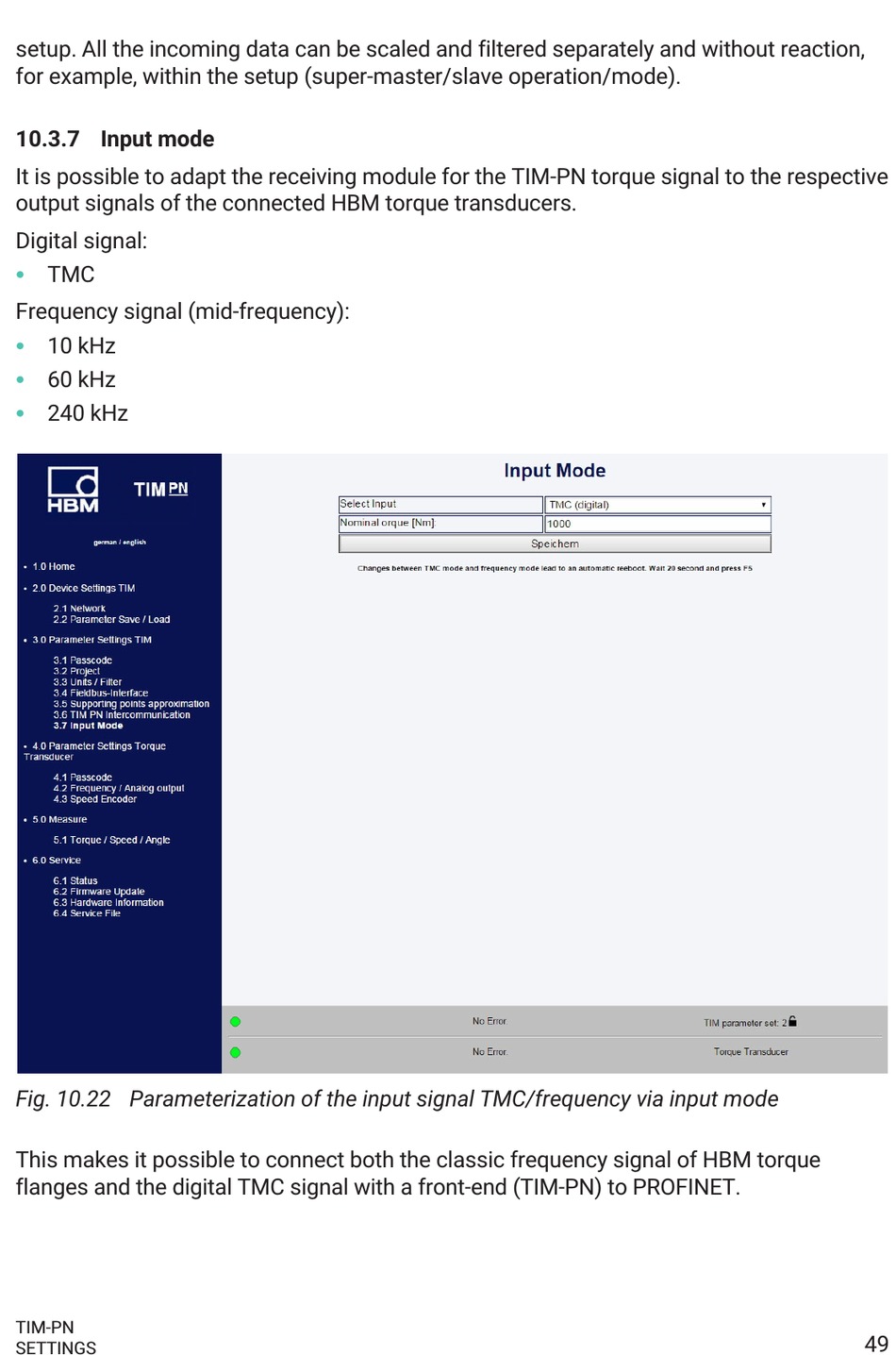

Fig. 10.22 Parameterization of the input signal TMC/frequency via input mode
This makes it possible to connect both the classic frequency signal of HBM torque
flanges and the digital TMC signal with a front-end (TIM-PN) to PROFINET.
