10.4.2 Frequency / Analog output

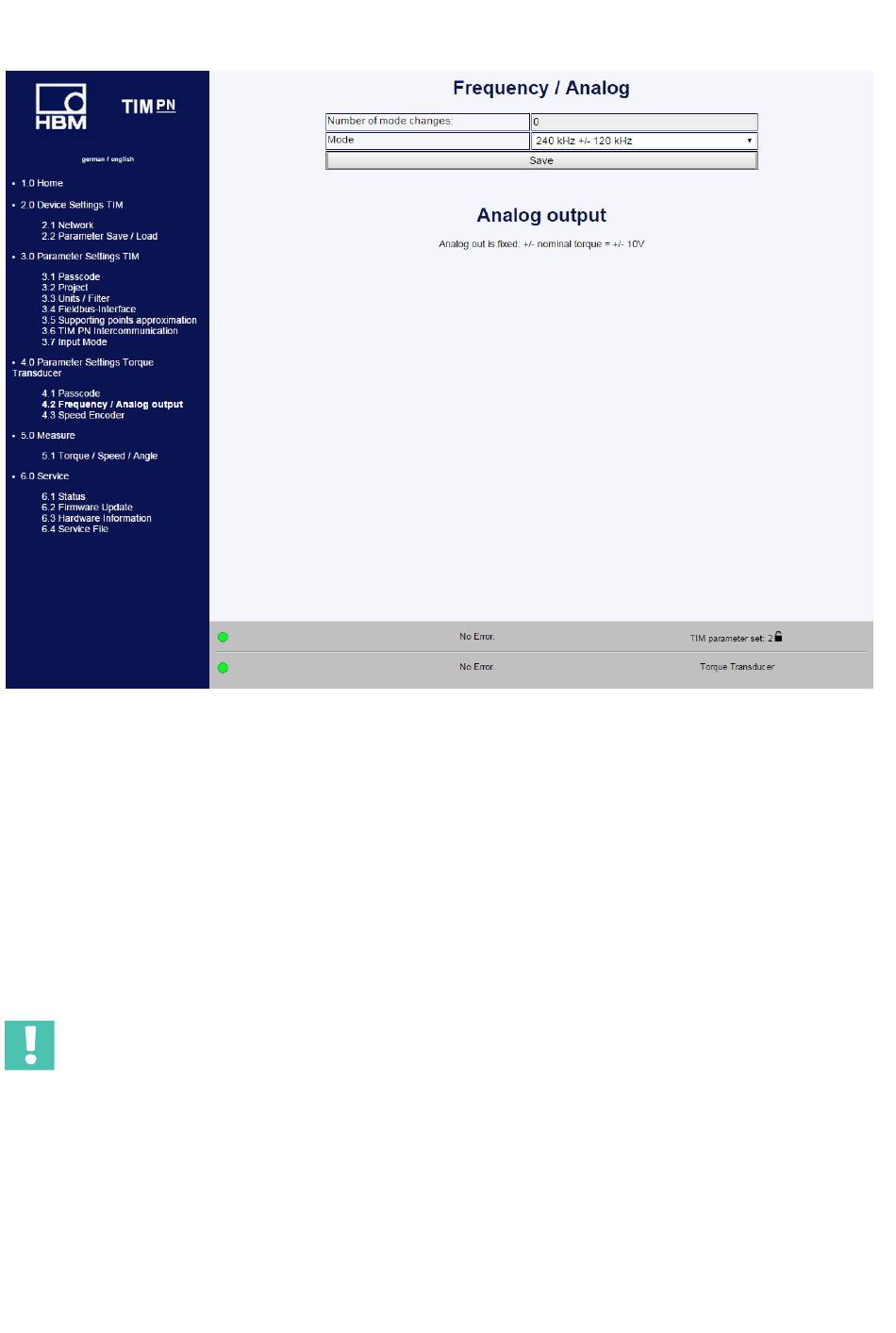

Fig. 10.25 Frequency/analog output
The Frequency/analog output menu can be used to change the center frequency (torque
output frequency) of the stator output connector 1. The number of center frequency
changes is stored in the stator. The number of changes can therefore be seen in the
counter. Possible settings of the output frequency:
10 ±5 kHz = 0 Nm ± nominal (rated) torque
60 ±30 kHz = 0 Nm ± nominal (rated) torque
240 ±120 kHz = 0 Nm ± nominal (rated) torque
The change is implemented by pressing the Save key.
Important
If measurement devices are connected to the frequency output, they must be configured to
this new output frequency range.
