Notice
The analog output on the torque flange cannot be set. It is 0V ±10 V = 0 Nm ± nominal
(rated) torque.

10.4.3 Speed Encoder

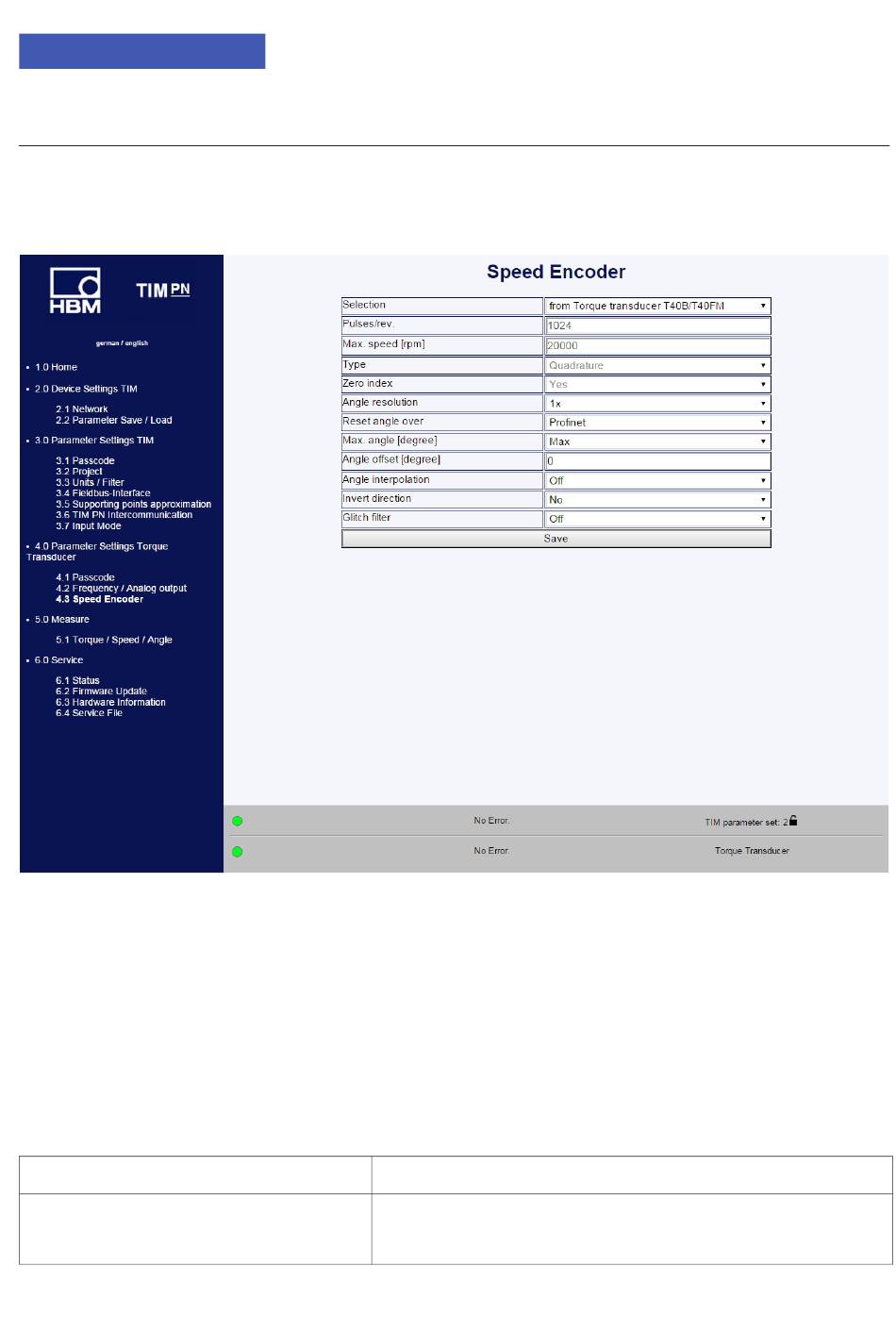

Fig. 10.26 Speed Encoder
The speed transducer system can either be the integrated measuring system in the
torque transducer T40B/T40M or an external speed encoder can be connected.
The T40B/T40M torque transducer outputs as standard a quadrature signal with 1024
pulses/revolution. Standard settings are indicated by underlining.
Speed transducer
Selection
Pulses/revolution
TIM-PN
SETTINGS
Manual/from torque transducer
Taken over by the transducer
With manual selection: 1-5000
53
