SETTINGS

You can parameterize the TIM-PN via an integrated web server that displays all parame­
ters in a web browser (we recommend Firefox, Google Chrome or Microsoft Internet
Explorer) when connected via Ethernet. To do this open the web browser and enter the IP
address, e.g. 192.168.1.2 and then press Enter.
10.1

Home window

Use the tree structure on the left side of the home window to open the required setup
window.

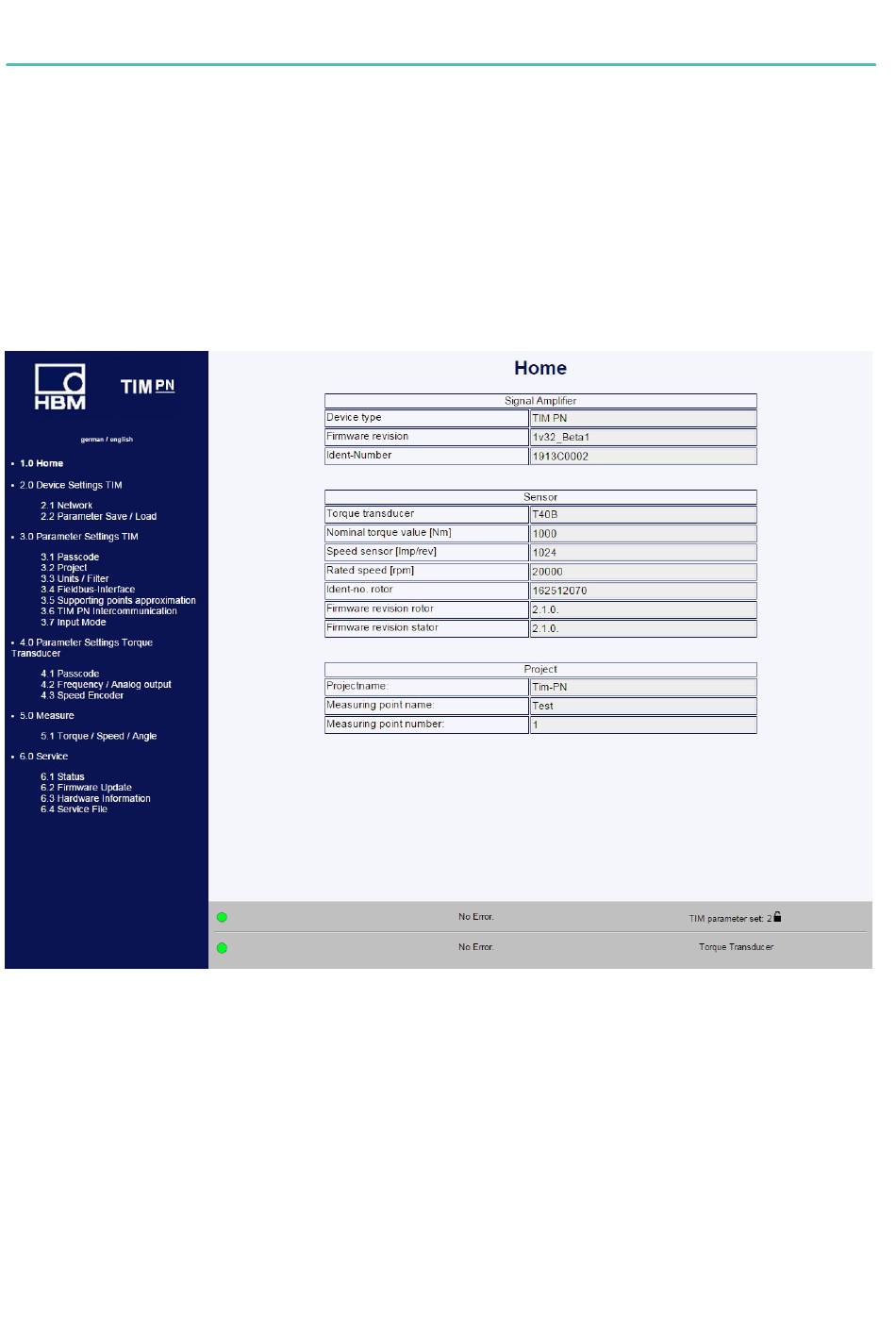

Fig. 10.1 TIM-PN home window
Fig. 10.1 shows the TIM-PN home window with information about the TIM-PN interface
module and the connected torque transducer. The current status of both devices is also
clearly shown in the lower part of each window.
10.2

Device settings TIM

The Device settings TIM menu is used to make settings related to the network connec­
tion, firmware updates, saving and loading parameter sets.
