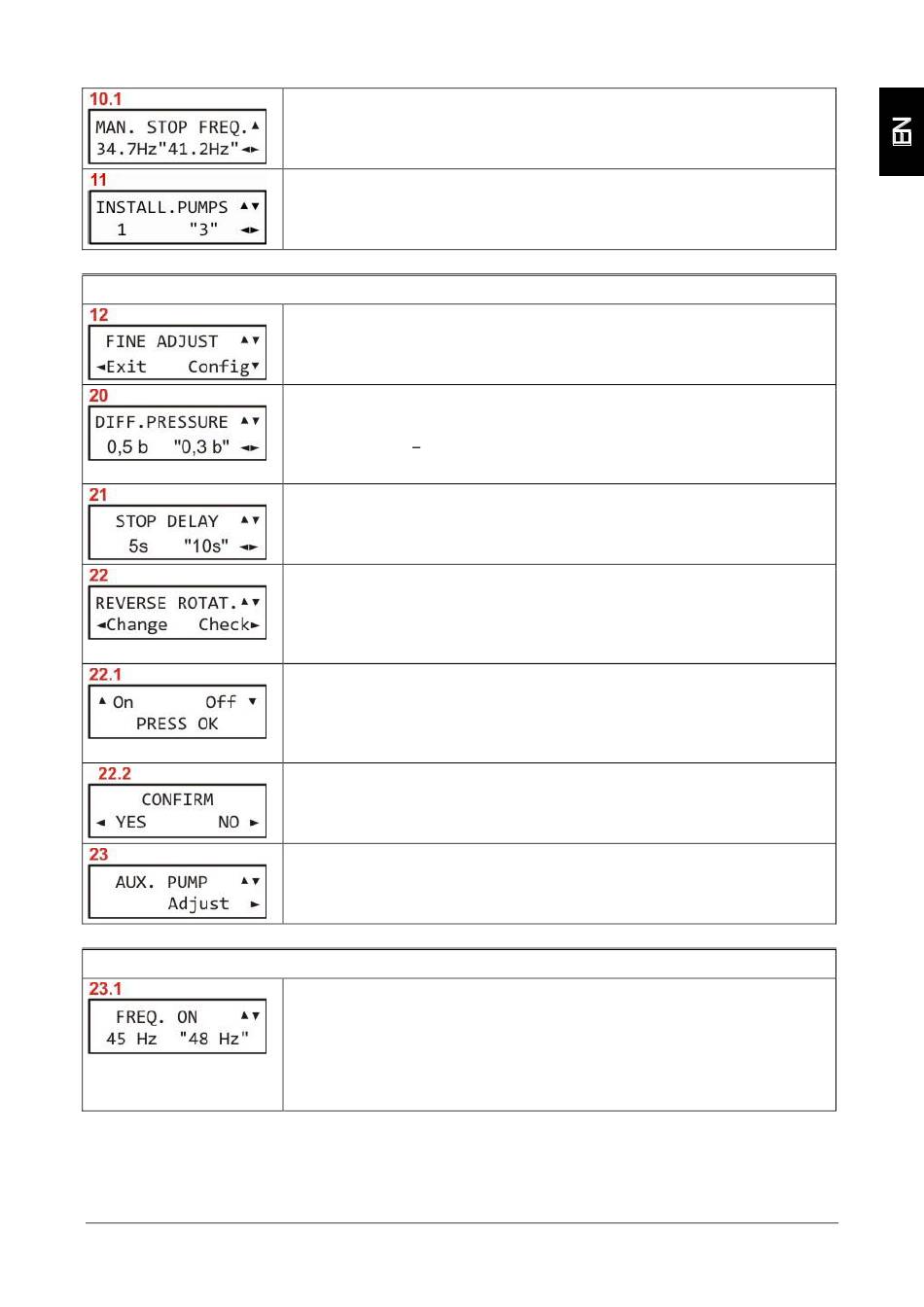

ADDITIONAL PARAMETERS SETTING
CONFIGURATION SUBMENU FOR AUXILIARY PUMPS
STOP FREQUENCY MANUALLY
Enter the desired stop frequency.
Note: This value should only be entered by experts.
INSTALLED UNITS
Number of pumps in the pressure set.
It can be between 1 and 4.
FINE ADJUSTMENTS
To set additional parameters, press ▼(Config)
To complete the setup, press ◄ (Exit)
DIFFERENTIAL PRESSURE
Configuration of the difference between the set and start-up pressure.
For ex. : 3 bars set 0.5 bars differential = 2.5 bars start-up
STOP DELAY
Timing of the unit before a stop. This timing process is associated to the stop
frequency.
REVESE ROTATION
Parameter that allows reversing them motor rotation direction.
To check the motor rotation direction, press ► (Check)
To change rotation direction, press ◄ (Change)
Starting the motor, to 25Hz, for CHECK TURN DIRECTION
Press ▲ ON, to activate the pump.
Press▼ OFF, to stop the pump.
PressOK to exit the screen.
Confirm INVERT ROTATION.
Change to "YES" to reverse the rotation direction
Press OK to exit the screen.
AUXILIARY PUMPS
For adjust auxiliary pumps parameters, press ► (Adjust)
If there are no auxiliary pumps, press ▼ to advance to screen 11.
FREQUENCY "ON" FOR AUXILIARY PUMPS
Auxiliary pump activation frequency.
Maximum frequency achieved by the main pump. At this frequency, the 1
pump is activated, lowering the main pump frequency until it balances the set
pressure. If the main pump reaches this frequency again, the 2
be activated, and so forth.
