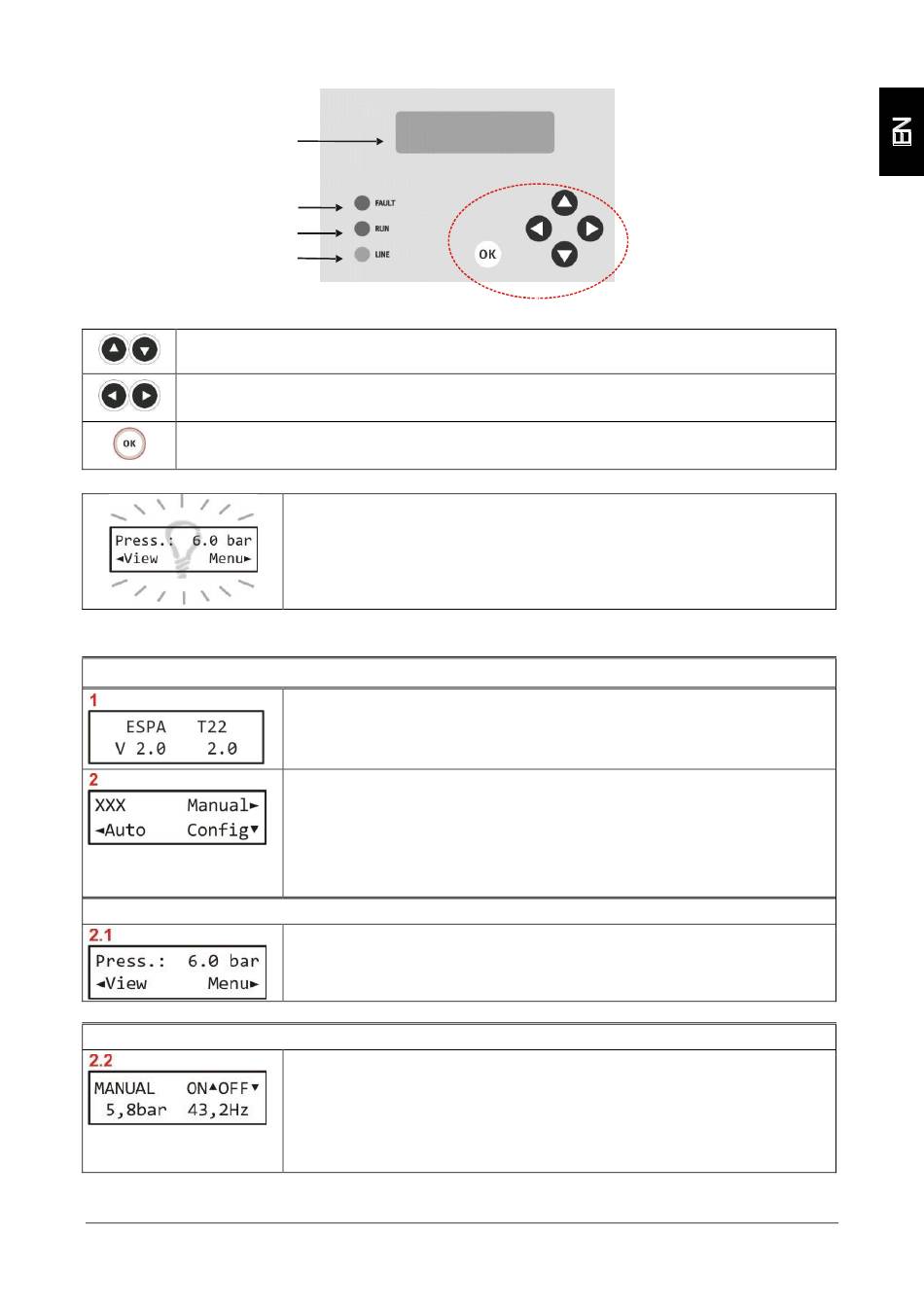

Screen displaying
the menus
Failure
See description on screen
Flashing = pump waiting
Fixed = pump operating
Power supply plug-in
5.2) Browsing.
Browsing the menus.
Variation of the flashing parameter.
Browsing a submenu.
Accepting changes.
Return to the general screen from display of parameters.
5.3) Description of the menus.
START SCREENS
MAIN SCREEN
MANUAL OPERATION
Backlight
The screen is backlit display for better reading.
To save power, the backlight turns off in 60 seconds without pressing any keys.
To activate the backlight, press OK.
Without backlight does not work any other key.
Introduction screen
Displayed during a few seconds when connecting the equipment.
Indicates: model and versions of control and power software.
Start screen
The pump is not activated.
XXX: MST = Master / SLV = Slave. See section 7.1
To start the pump manually, press ► (Man)
For automatic operation, press ◄ (Auto)
To configure parameters, press ▼ (Config)
It shows the system pressure. The pump will run automatically, as needed.
To display parameters, press ◄ (View)
To return to the start screen, press ► (Menu)
It shows the system pressure and Speedrive output frequency.
Press ▲ ON, to activate the pump. Start-up is always performed at 15Hz.
Press▼ OFF, to stop the pump.
Press◄ or ►, to adjust the frequency.
Press OK to exit the screen.
