CONFIGURATION

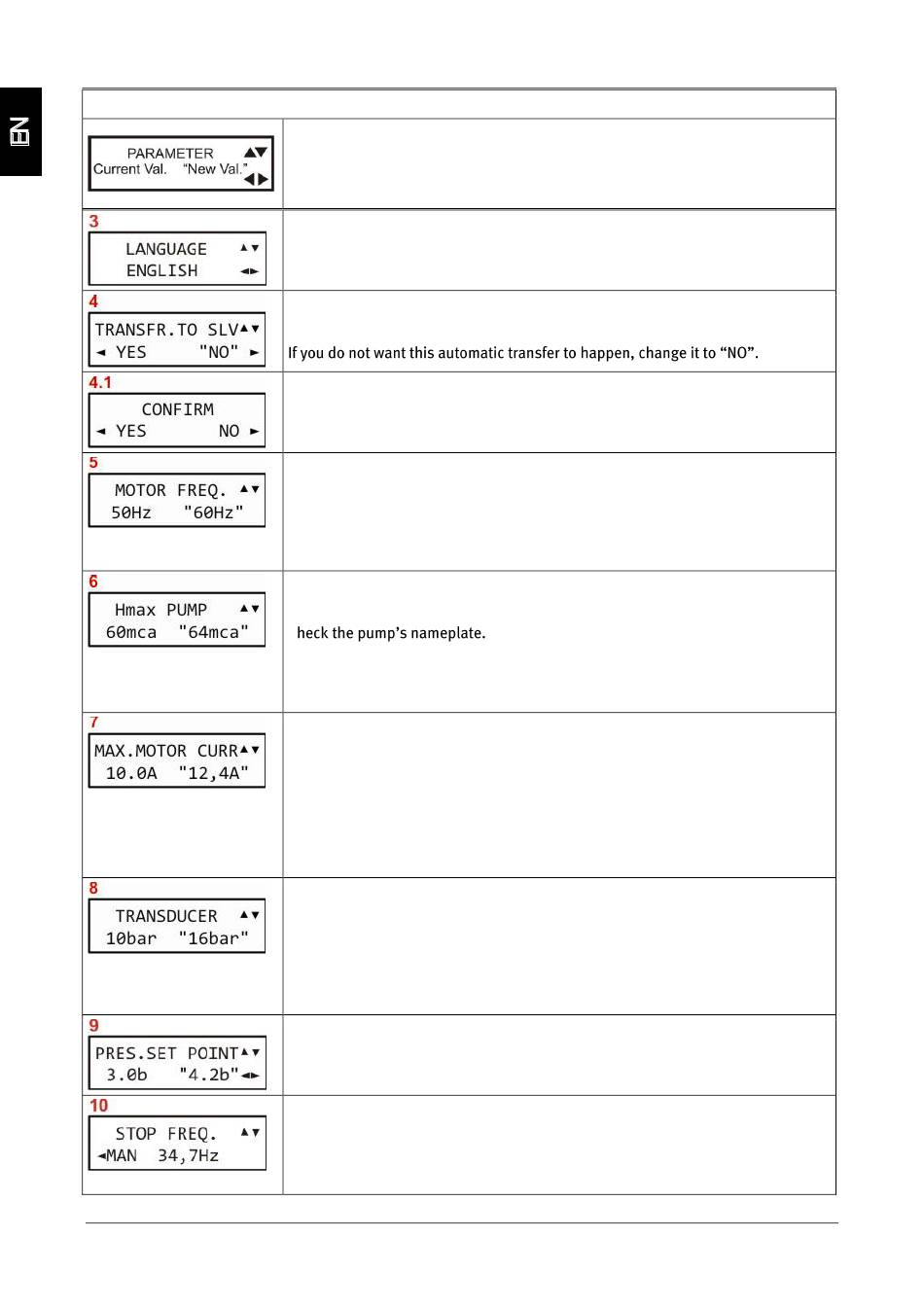

Screen descriptions:
Top: parameter being configured.
-
- Lower left: current value of the parameter.
Lower right, "flashing": new value being configured. Press OK to confirm.
-
LANGUAGE
Select the desired language.
TRANSFER THE CONFIGURATION TO THE SLAVE SPEEDRIVES
The Master configuration will be transferred to the Slaves by default.
Confirm configuration change.
Click OK to confirm.
MOTOR FREQUENCY
Configuration of the nominal frequency of the motor, 50Hz or 60Hz.
Check the motor's nameplate.
Note: This screen only appears in the initial preset or retrieving the factory
settings.
MAXIMUM PUMP HEIGHT
Setting the maximum pressure the pump can provide.
C
Note: This screen only appears in the initial preset or retrieving the factory
settings
MAXIMUM MOTOR CURRENT
Maximum operating current of the motor.
Adjust in accordance with the motor's data plate:
+10% for three-phase motors.
+15% for single-phase motors.
Note: This screen only appears in the initial preset or retrieving the factory
settings
TRANSDUCER SELECTION
Select the full scale value of the installed transducer. There are three possible
values: 10, 16 and 25 bars.
Note: This screen only appears in the initial preset or retrieving the factory
settings
PRESSURE SET POINT
Configuration of the work pressure of the unit.
CALCULATED STOP FREQUENCY
The stop frequency is calculated automatically.
Will be recalculated every time that is changed the nominal pressure.
To set a value in the manual mode, press◄ (Man)
