Preparing the power supply wires:

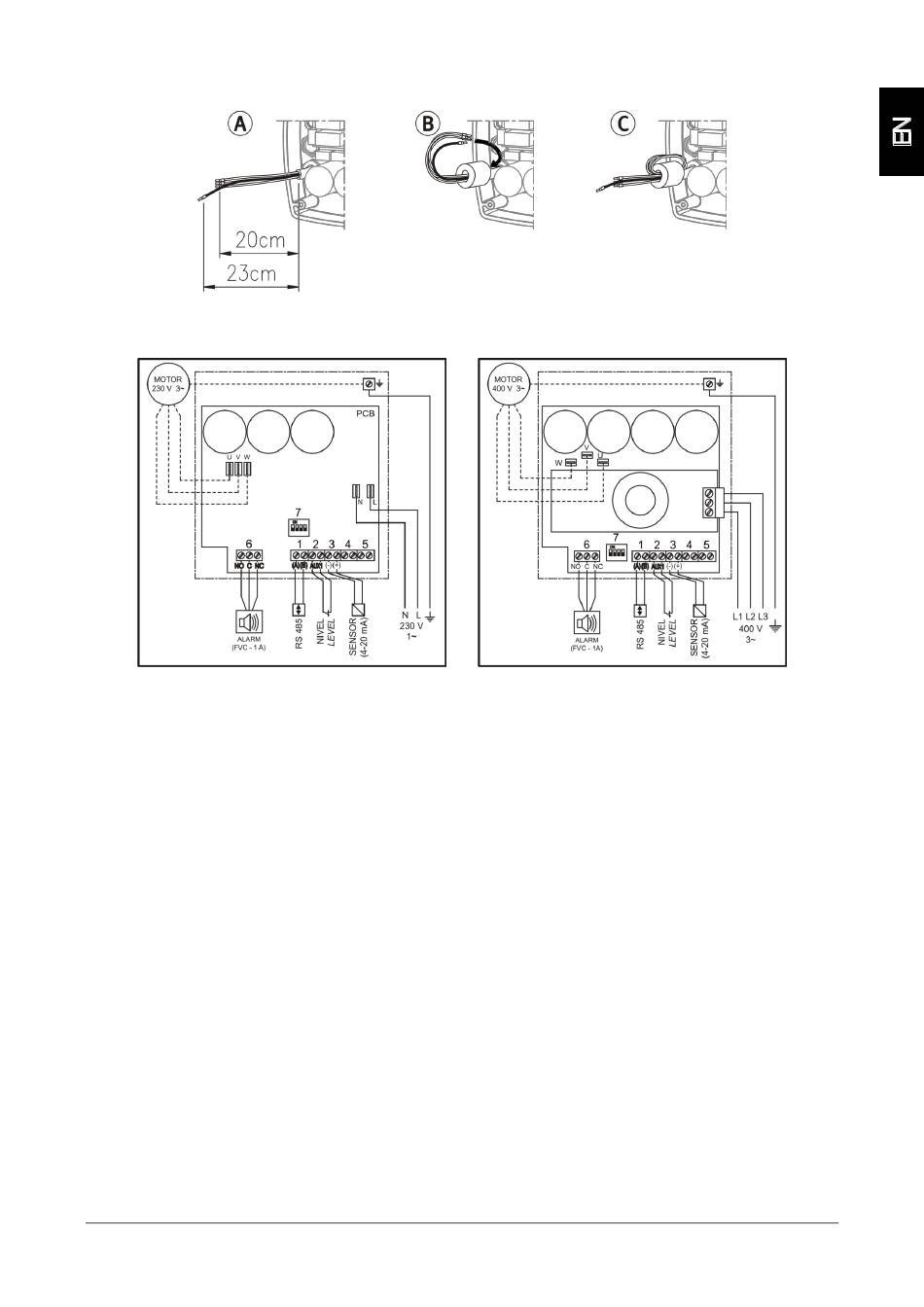

3.5) Signals wires connection.
1.- RS 485 communications output to connect various inverters. Up to 4 units.
2.- Auxiliary input for an external contact (for example, a level switch). Lets you stop or start the unit..
Note: This input is supplied from the factory with an electric cable bridge.
3.- Input of the 4-20mA pressure transducer.
4.- Potential-free auxiliary input. Not used.
5.- Auxiliary transducer input. Not used.
6.- Alarm signal output: Potential-free output (FVC). Maximum 1 A. NO/NC Contacts.
7.- Micro-switches used to configure the inverter's operation.
M22
Figure 6
T22, T55
Figure 7
