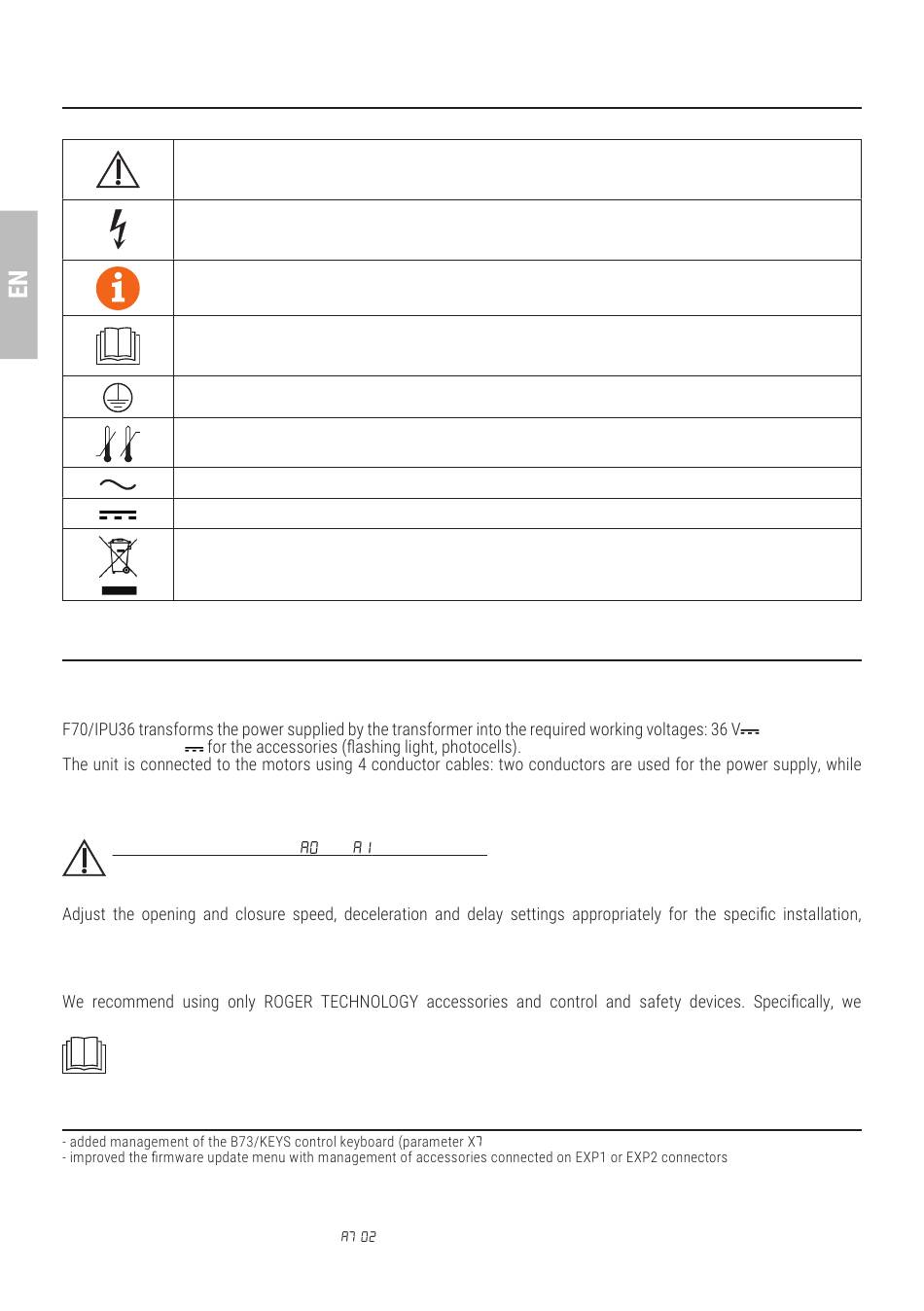

Symbols
The symbols and their meaning in the manual or on the product label are indicated below.
Generic danger
Important safety information. Indicates operations and situations in which the personnel involved
must pay close attention.
Dangerous voltage risk
Indicates operations and situations in which the personnel involved must pay close attention to
dangerous voltages.
Useful information
Indicates useful information for the installation.
Refer to the Installation and use instructions
Indicates the obligation to refer to the manual or original document, which must be available for
future use and must not be damaged in any way.
Protective earth connection point.
Indicates the admissible temperature range.
Alternating current (AC)
Direct current (DC)
Symbol for the product disposal according to the WEEE directive
2
Product description
The F70/IPU36 control unit is designed to provide logic control of the electronic actuators (inverters) mounted on the
motor, so as to realise any one or two motor automation system simply be setting up the parameters in the menu via
the backlit LCD interface and the respective selector buttons.
modules and 24 V
the other two are used for the RS485 serial communication using the ModBus high speed protocol, which provides
real-time control over the various machine operating parameters and makes it possible to synchronise the actions of
the two motors, in relation to the logic functions requested by the menu parameter settings.
Ensure that the parameter
system may not function properly.
It is possible to use two different types of automation system on the same gate.
ensuring that the gate leaves overlap correctly.
ROGER TECHNOLOGY cannot be held responsible for any damage or injury due to improper use or any use other than
the intended usage indicated in this manual.
recommend installing F4ES or F4S series photocells.
For further information, refer to the automation installation manual.
3
Updates of version R1.50
- added installation date registration menu
- B74/BCONNECT is used to switch the date/time/day of the week to B73/KEYS, in order to enable the TIMER/LOOK functionality of the
control keyboard
- added TEST mode
- added man present mode only in closing (par.
68
and
is set correctly. If this parameter is not set correctly, the automation
)
)
for the inverter
