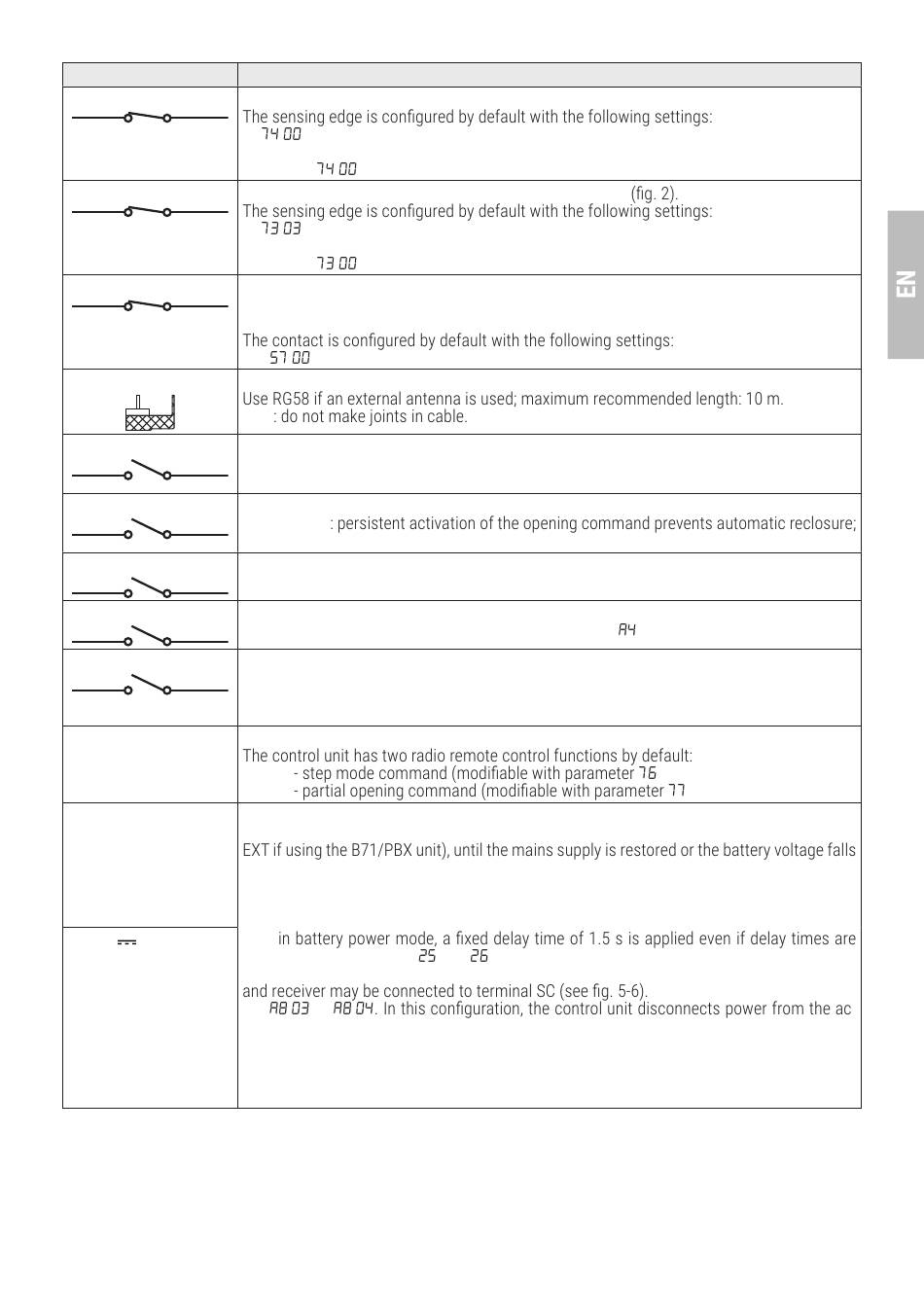

CONTACT
26(COS2)
28(COM) Input (NC or 8 kOhm) for connecting sensing edge COS2.
27(COS1)
28(COM) Input (NC or 8 kOhm) for connecting sensing edge COS1
29(ST)
28(COM) STOP command input (N.C. or 8.2 kOhm).
30 (ANT)
31 Antenna connector for slot-in radio receiver board.
33(ORO)
32(COM) Clock timer contact input (N.O.).
34(AP)
32(COM) Open control signal input (N.O.).
35(CH)
38(COM) Close command input (N.O.).
36(PP)
38(COM) Step by step mode command input (N.O.).
37(PED)
38(COM) Partial open control signal input (N.O.).
RECEIVER CARD
BATTERY CHARGER
B71/BCIPU
3 x 12V
4.5Ah (*)
Only AGM type.
(*) batteries can be
stored inside the box
code HT421.
DESCRIPTION
. The sensing edge COS2 (NC contact) is disabled.
If the sensing edge is not installed, jumper the terminals 26(COS2) - 28(COM) or set the
parameter
.
. If the sensing edge COS1 (NC contact) is enabled, the gate always reverses.
If the sensing edge is not installed, jumper the terminals 27(COS1) - 28(COM) or set the
parameter
.
The current manoeuvre is arrested if the safety contact opens.
N.B.: the controller is supplied with this contact already jumpered by ROGER TECHNOLOGY.
. (normally closed) incoming contact.
N.B.
When the clock function is active, the gate opens and remains open.
At the end of the programmed time set with the external device (clock), the gate closes.
IMPORTANT
the automatic reclosure time count is resumed when the opening command is released.
The function of the control is determined by parameter
On double leaf gate automation systems, by default, the partial opening command opens
LEAF 1 completely.
With single leaf swing gate installations, by default, partial opening is 50% of total opening.
Connector for plug-in radio receiver board.
– PR1
– PR2
(Fig. 7) In the absence of the mains power supply, the control unit is powered by the batteri-
es, and the battery icon appears on the power supply display page (including the indication
below the safety threshold. The Battery Low icon appears on the display and the control unit
no longer accepts commands.
If mains power is lost while the gate is moving, the gate stops and then automatically
resumes the interrupted manoeuvre after 2 seconds.
N.B:
disabled with parameters
To reduce battery consumption, the positive power feed wire of the photocell transmitters
Set
or
cessory devices when the gate is completely open or completely closed.
WARNING! the batteries must always be connected to the electronic control unit in order to
charge. Periodically (at least every 6 months), check that the batteries are in good working
order.
For more information, refer to the installation manual for the B71/BCIPU battery charger.
and
.
.
).
).
-
73
