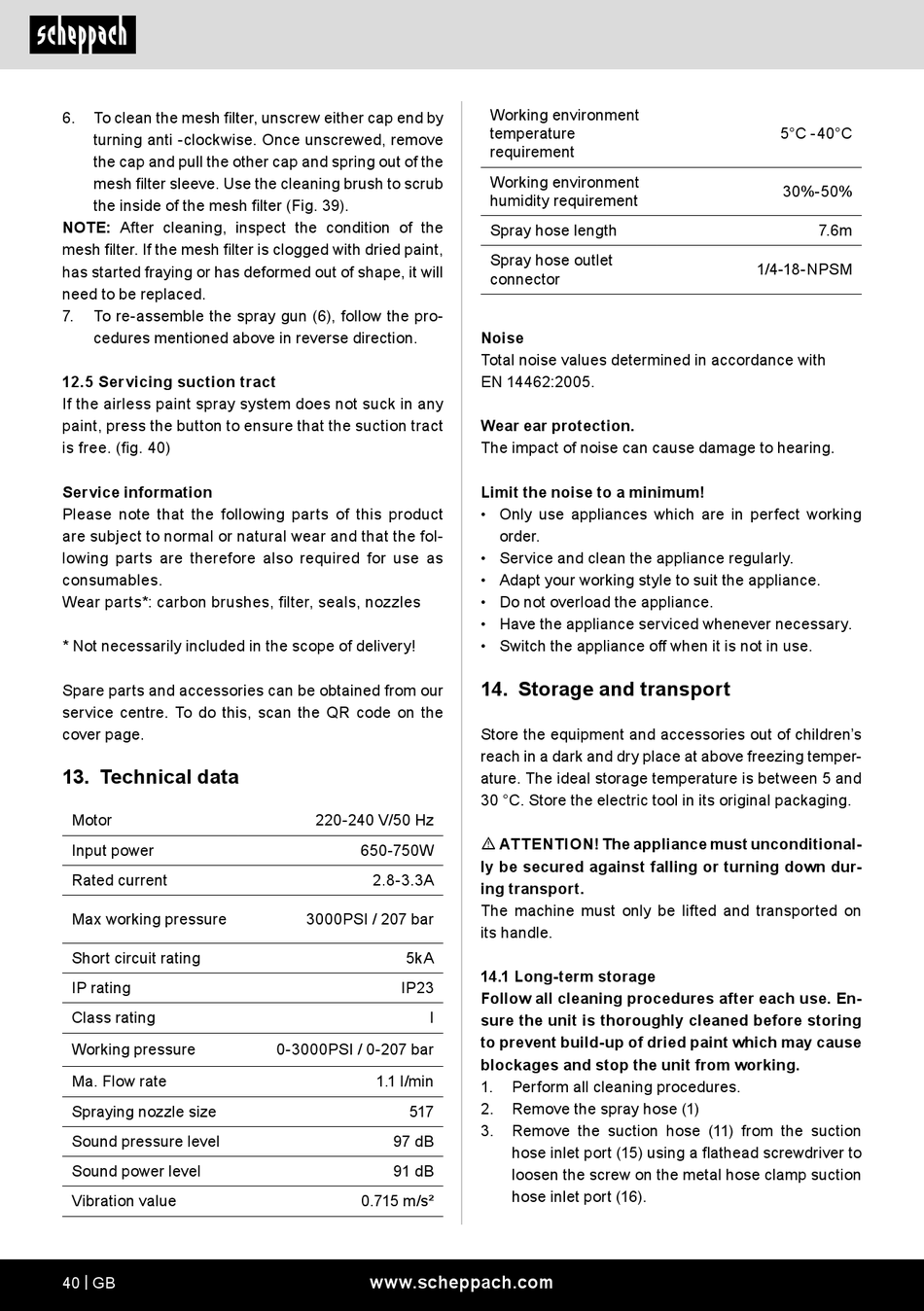

Scheppach ACS3000 Original Bedienungsanleitung Seite 40

6. To clean the mesh filter, unscrew either cap end by
turning anti -clockwise. Once unscrewed, remove
the cap and pull the other cap and spring out of the
mesh filter sleeve. Use the cleaning brush to scrub
the inside of the mesh filter (Fig. 39).
NOTE: After cleaning, inspect the condition of the
mesh filter. If the mesh filter is clogged with dried paint,
has started fraying or has deformed out of shape, it will
need to be replaced.
7. To re-assemble the spray gun (6), follow the pro-
cedures mentioned above in reverse direction.
12.5 Servicing suction tract
If the airless paint spray system does not suck in any
paint, press the button to ensure that the suction tract
is free. (fig. 40)
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: carbon brushes, filter, seals, nozzles
* Not necessarily included in the scope of delivery!
Spare parts and accessories can be obtained from our
service centre. To do this, scan the QR code on the
cover page.
13. Technical data
Motor
Input power
Rated current
Max working pressure
Short circuit rating
IP rating
Class rating
Working pressure
Ma. Flow rate
Spraying nozzle size
Sound pressure level
Sound power level
Vibration value
40 | GB
220-240 V/50 Hz
650-750W
2.8-3.3A
3000PSI / 207 bar
5kA
IP23
I
0-3000PSI / 0-207 bar
1.1 l/min
517
97 dB
91 dB
0.715 m/s²
www.scheppach.com
Working environment
temperature
requirement
Working environment
humidity requirement
Spray hose length
Spray hose outlet
connector
Noise
Total noise values determined in accordance with
EN 14462:2005.
Wear ear protection.
The impact of noise can cause damage to hearing.
Limit the noise to a minimum!
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
14. Storage and transport
Store the equipment and accessories out of children's
reach in a dark and dry place at above freezing temper-
ature. The ideal storage temperature is between 5 and
30 °C. Store the electric tool in its original packaging.
m ATTENTION! The appliance must unconditional-
ly be secured against falling or turning down dur-
ing transport.
The machine must only be lifted and transported on
its handle.
14.1 Long-term storage
Follow all cleaning procedures after each use. En-
sure the unit is thoroughly cleaned before storing
to prevent build-up of dried paint which may cause
blockages and stop the unit from working.
1. Perform all cleaning procedures.
2. Remove the spray hose (1)
3. Remove the suction hose (11) from the suction
hose inlet port (15) using a flathead screwdriver to
loosen the screw on the metal hose clamp suction
hose inlet port (16).
5°C -40°C
30%-50%
7.6m
1/4-18-NPSM
