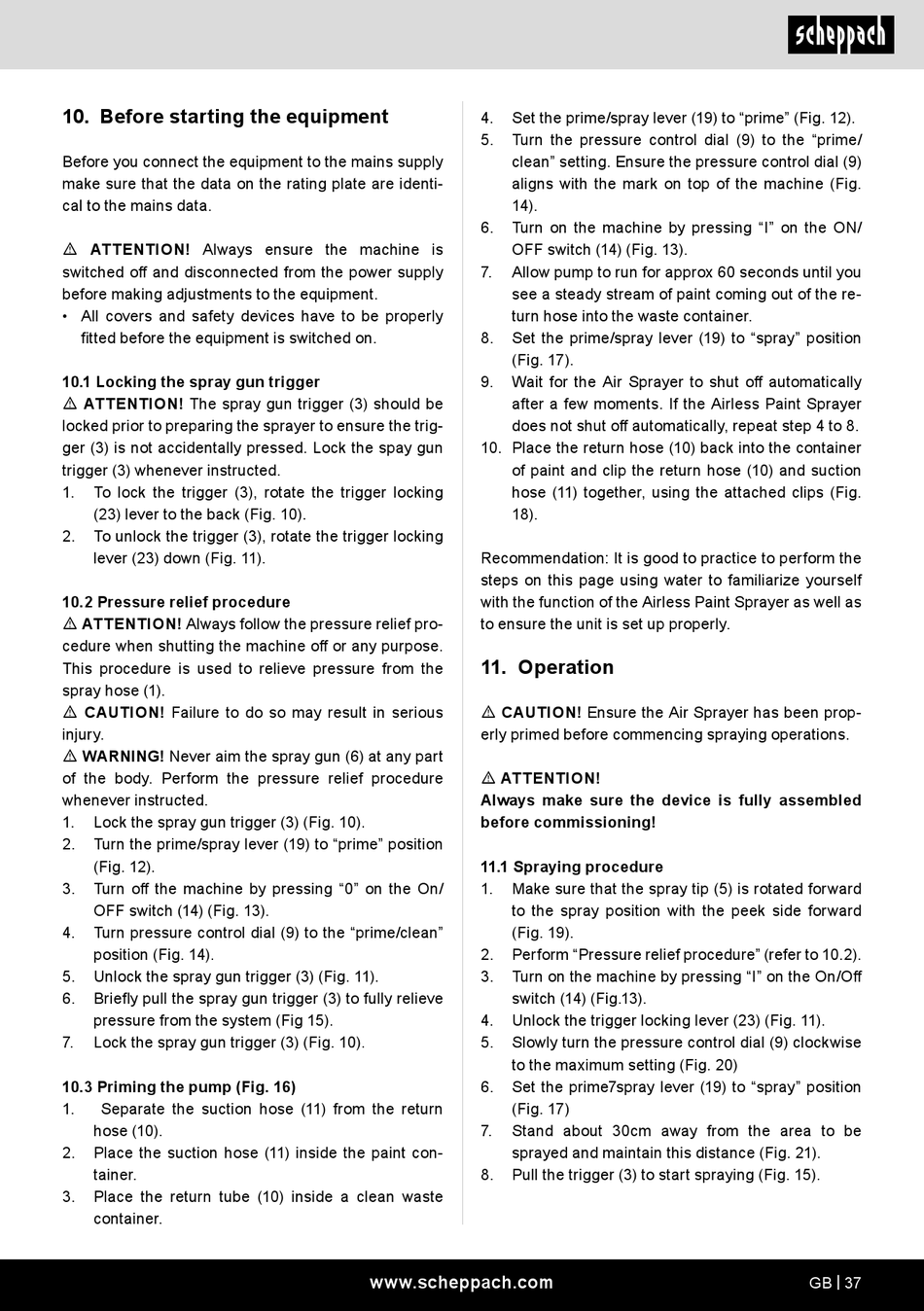

10. Before starting the equipment
Before you connect the equipment to the mains supply
make sure that the data on the rating plate are identi-
cal to the mains data.
m ATTENTION! Always ensure the machine is
switched off and disconnected from the power supply
before making adjustments to the equipment.
• All covers and safety devices have to be properly
fitted before the equipment is switched on.
10.1 Locking the spray gun trigger
m ATTENTION! The spray gun trigger (3) should be
locked prior to preparing the sprayer to ensure the trig-
ger (3) is not accidentally pressed. Lock the spay gun
trigger (3) whenever instructed.
1. To lock the trigger (3), rotate the trigger locking
(23) lever to the back (Fig. 10).
2. To unlock the trigger (3), rotate the trigger locking
lever (23) down (Fig. 11).
10.2 Pressure relief procedure
m ATTENTION! Always follow the pressure relief pro-
cedure when shutting the machine off or any purpose.
This procedure is used to relieve pressure from the
spray hose (1).
m CAUTION! Failure to do so may result in serious
injury.
m WARNING! Never aim the spray gun (6) at any part
of the body. Perform the pressure relief procedure
whenever instructed.
1. Lock the spray gun trigger (3) (Fig. 10).
2. Turn the prime/spray lever (19) to "prime" position
(Fig. 12).
3. Turn off the machine by pressing "0" on the On/
OFF switch (14) (Fig. 13).
4. Turn pressure control dial (9) to the "prime/clean"
position (Fig. 14).
5. Unlock the spray gun trigger (3) (Fig. 11).
6. Briefly pull the spray gun trigger (3) to fully relieve
pressure from the system (Fig 15).
7. Lock the spray gun trigger (3) (Fig. 10).
10.3 Priming the pump (Fig. 16)
1. Separate the suction hose (11) from the return
hose (10).
2. Place the suction hose (11) inside the paint con-
tainer.
3. Place the return tube (10) inside a clean waste
container.
4. Set the prime/spray lever (19) to "prime" (Fig. 12).
5. Turn the pressure control dial (9) to the "prime/
clean" setting. Ensure the pressure control dial (9)
aligns with the mark on top of the machine (Fig.
14).
6. Turn on the machine by pressing "I" on the ON/
OFF switch (14) (Fig. 13).
7. Allow pump to run for approx 60 seconds until you
see a steady stream of paint coming out of the re-
turn hose into the waste container.
8. Set the prime/spray lever (19) to "spray" position
(Fig. 17).
9. Wait for the Air Sprayer to shut off automatically
after a few moments. If the Airless Paint Sprayer
does not shut off automatically, repeat step 4 to 8.
10. Place the return hose (10) back into the container
of paint and clip the return hose (10) and suction
hose (11) together, using the attached clips (Fig.
18).
Recommendation: It is good to practice to perform the
steps on this page using water to familiarize yourself
with the function of the Airless Paint Sprayer as well as
to ensure the unit is set up properly.
11. Operation
m CAUTION! Ensure the Air Sprayer has been prop-
erly primed before commencing spraying operations.
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
11.1 Spraying procedure
1. Make sure that the spray tip (5) is rotated forward
to the spray position with the peek side forward
(Fig. 19).
2. Perform "Pressure relief procedure" (refer to 10.2).
3. Turn on the machine by pressing "I" on the On/Off
switch (14) (Fig.13).
4. Unlock the trigger locking lever (23) (Fig. 11).
5. Slowly turn the pressure control dial (9) clockwise
to the maximum setting (Fig. 20)
6. Set the prime7spray lever (19) to "spray" position
(Fig. 17)
7. Stand about 30cm away from the area to be
sprayed and maintain this distance (Fig. 21).
8. Pull the trigger (3) to start spraying (Fig. 15).
