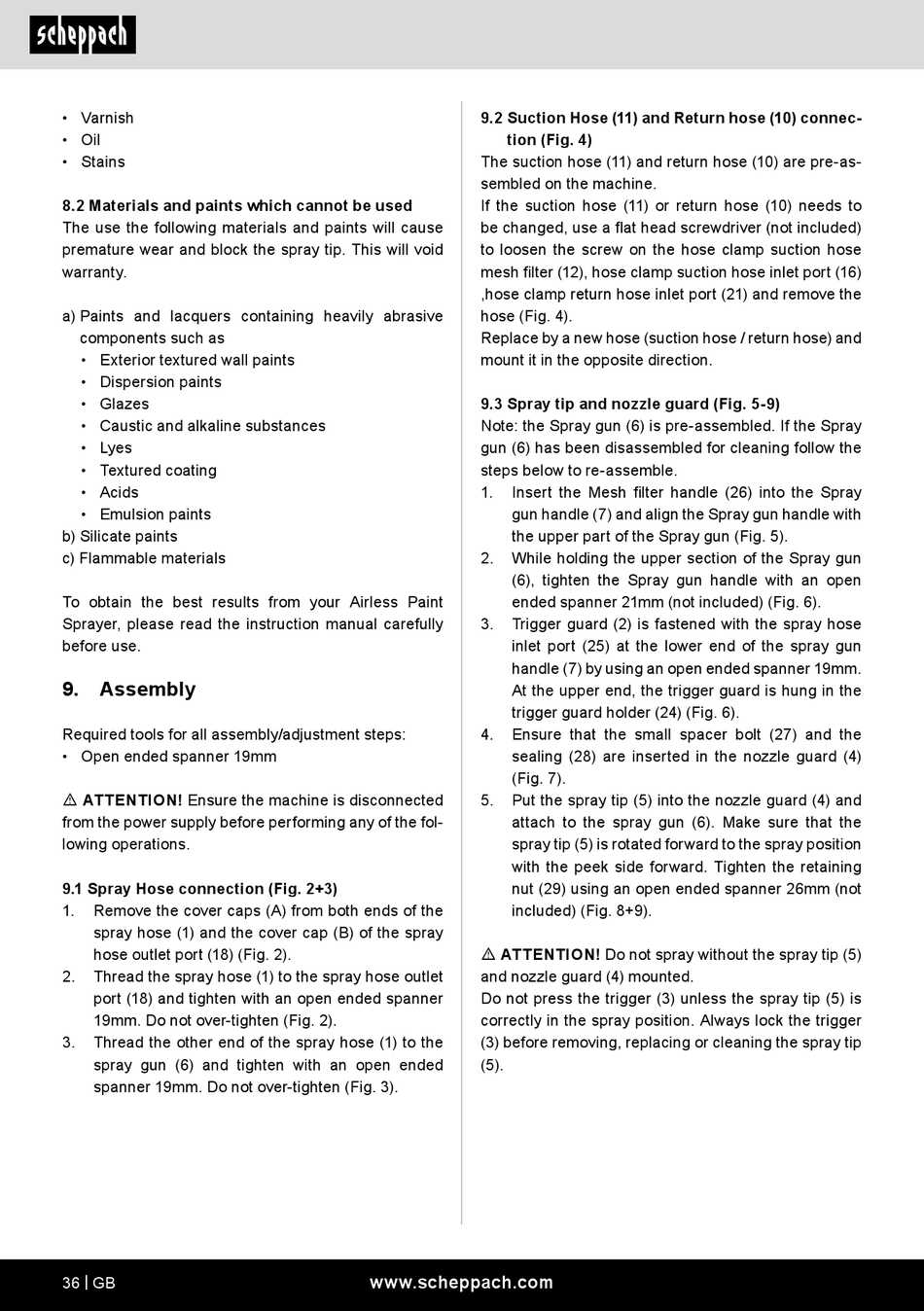

• Varnish
• Oil
• Stains
8.2 Materials and paints which cannot be used
The use the following materials and paints will cause
premature wear and block the spray tip. This will void
warranty.
a) Paints and lacquers containing heavily abrasive
components such as
• Exterior textured wall paints
• Dispersion paints
• Glazes
• Caustic and alkaline substances
• Lyes
• Textured coating
• Acids
• Emulsion paints
b) Silicate paints
c) Flammable materials
To obtain the best results from your Airless Paint
Sprayer, please read the instruction manual carefully
before use.
9. Assembly
Required tools for all assembly/adjustment steps:
• Open ended spanner 19mm
m ATTENTION! Ensure the machine is disconnected
from the power supply before performing any of the fol-
lowing operations.
9.1 Spray Hose connection (Fig. 2+3)
1. Remove the cover caps (A) from both ends of the
spray hose (1) and the cover cap (B) of the spray
hose outlet port (18) (Fig. 2).
2. Thread the spray hose (1) to the spray hose outlet
port (18) and tighten with an open ended spanner
19mm. Do not over-tighten (Fig. 2).
3. Thread the other end of the spray hose (1) to the
spray gun (6) and tighten with an open ended
spanner 19mm. Do not over-tighten (Fig. 3).
36 | GB
9.2 Suction Hose (11) and Return hose (10) connec-
tion (Fig. 4)
The suction hose (11) and return hose (10) are pre-as-
sembled on the machine.
If the suction hose (11) or return hose (10) needs to
be changed, use a flat head screwdriver (not included)
to loosen the screw on the hose clamp suction hose
mesh filter (12), hose clamp suction hose inlet port (16)
,hose clamp return hose inlet port (21) and remove the
hose (Fig. 4).
Replace by a new hose (suction hose / return hose) and
mount it in the opposite direction.
9.3 Spray tip and nozzle guard (Fig. 5-9)
Note: the Spray gun (6) is pre-assembled. If the Spray
gun (6) has been disassembled for cleaning follow the
steps below to re-assemble.
1. Insert the Mesh filter handle (26) into the Spray
gun handle (7) and align the Spray gun handle with
the upper part of the Spray gun (Fig. 5).
2. While holding the upper section of the Spray gun
(6), tighten the Spray gun handle with an open
ended spanner 21mm (not included) (Fig. 6).
3. Trigger guard (2) is fastened with the spray hose
inlet port (25) at the lower end of the spray gun
handle (7) by using an open ended spanner 19mm.
At the upper end, the trigger guard is hung in the
trigger guard holder (24) (Fig. 6).
4. Ensure that the small spacer bolt (27) and the
sealing (28) are inserted in the nozzle guard (4)
(Fig. 7).
5. Put the spray tip (5) into the nozzle guard (4) and
attach to the spray gun (6). Make sure that the
spray tip (5) is rotated forward to the spray position
with the peek side forward. Tighten the retaining
nut (29) using an open ended spanner 26mm (not
included) (Fig. 8+9).
m ATTENTION! Do not spray without the spray tip (5)
and nozzle guard (4) mounted.
Do not press the trigger (3) unless the spray tip (5) is
correctly in the spray position. Always lock the trigger
(3) before removing, replacing or cleaning the spray tip
(5).
