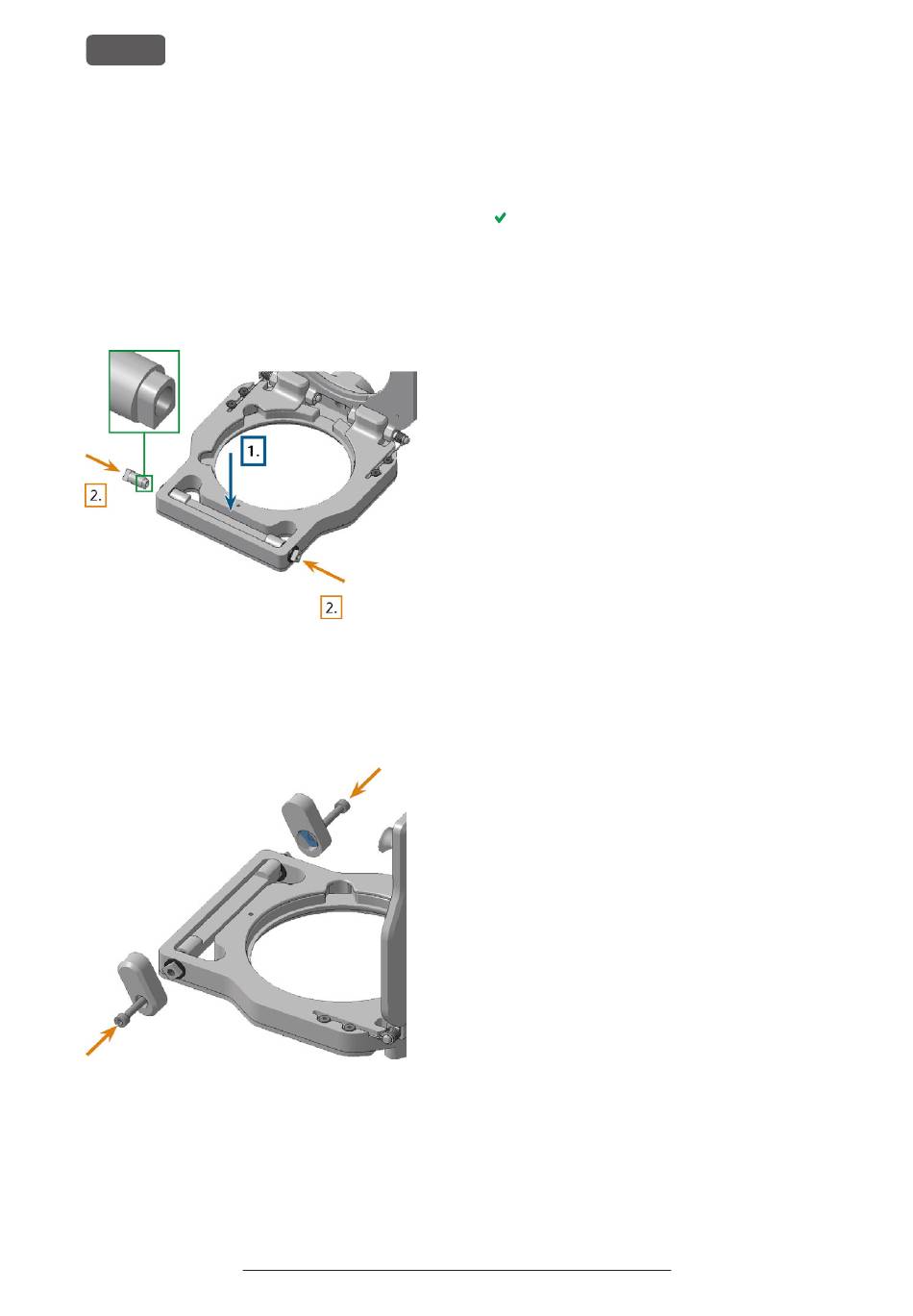

9. Place the spare shaft of the clamping system:
a. Position the shaft in the blank holder, with the
rounded surface to the front and the rect-
angular recess to the top. Hold the shaft in
place.
b. Insert the partly rounded connection geo-
metry of the positioning aids into the shaft,
with the rounded part to the top.
c. Ensure that all parts fit exactly into each other.
F . 72
IG
10. Place the spare blank holder levers in the "open"
position on the positioning aids and screw them
down with the 3 mm hex key. Mind the form of the
recess (marked blue) in the blank holder levers.
F . 73
IG
11. Check if the blank holder opens / closes properly
and if the blank holder cover is fixated as required.
If not, revise the installation of the clamping sys-
tem.
12. Close the blank holder.
13. Close the working chamber door.
14. Switch on the machine at the main power switch.
15. Restart DENTALCNC.
Original Operating Instructions: K5+
Version: 12/16/2021
K5+ – Maintenance and do-it-yourself
The machine references.
