EN 32
NOTICE
results due to improper blank fixation
If the blank holder is not closed correctly, the
blank will not be properly fixated and the blank
holder may get damaged. As a result, the machine
and tools may get damaged and the machining
results may not be satisfactory.
Always close the blank holder as it is described
below.
Ensure that the blank holder levers are firmly
closed.
Do not apply excessive force when closing the
levers.
5. To close the blank holder, do the following:
a. Make sure the blank holder levers are in the
front position, as indicated in the figure
below.
b. Push down the blank holder cover and hold it
in place.
c. Lock the blank holder by pushing the left and
/ or right blank holder lever (marked orange
in the figure) away from yourself until you
notice a distinct resistance and the levers are
firmly closed. Do not apply excessive force.

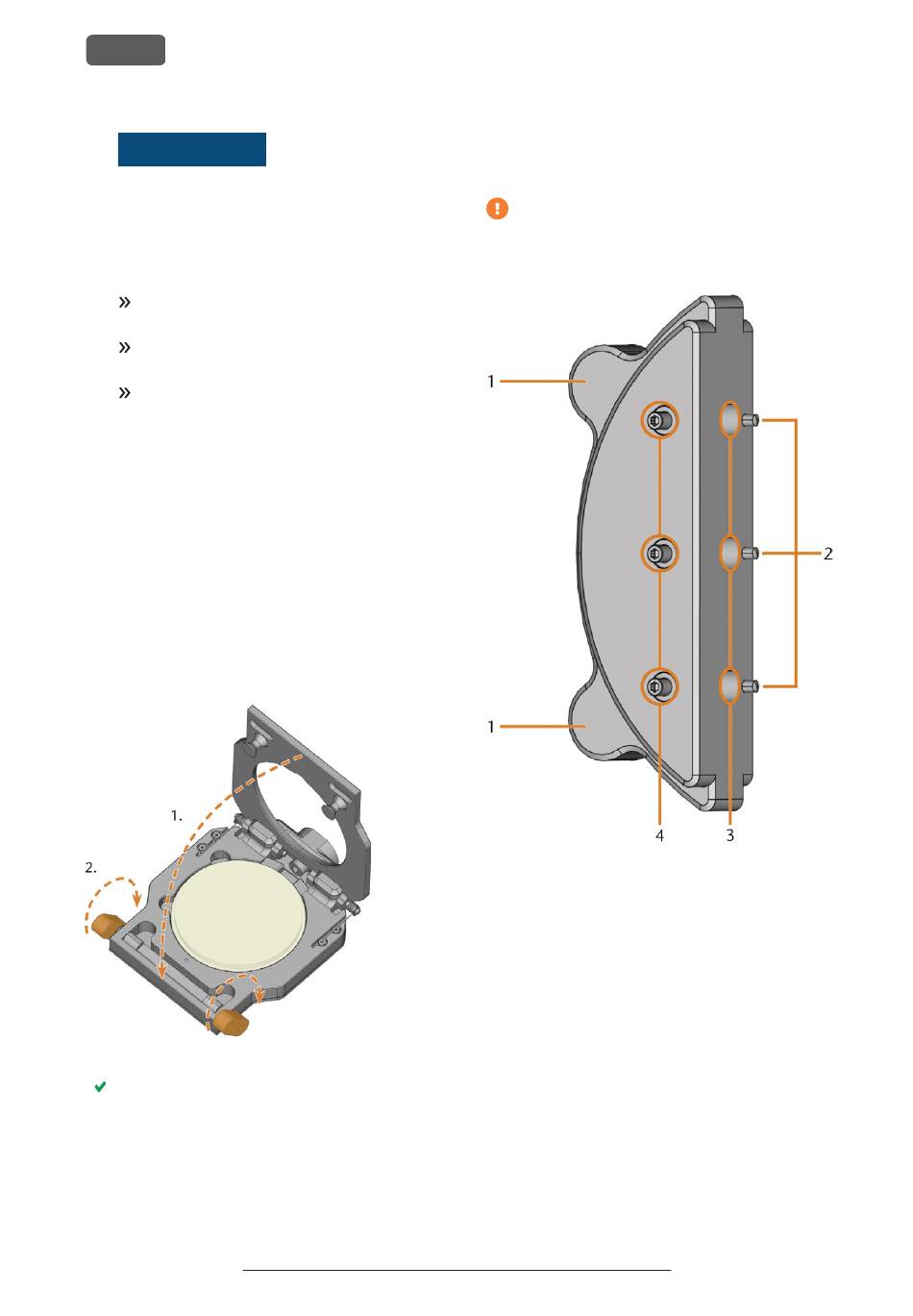

F . 36 C
IG LOSING THE BLANK HOLDER
The disc is fixated in the blank holder. The disc is
mounted in the working chamber.
Damaging of the machine
/ tools or bad machining
Original Operating Instructions: K5+
Version: 12/16/2021
K5+ – Operation: Preparing jobs

6.4.2 Mounting blocks to the block holder

You can mount up to 3 blocks to the block holder.
The block type, the number of blocks and the
block positions must correspond to the corres-
ponding job in DENTALCAM.
F . 37 T K5+
IG HE BLOCK HOLDER
1. Positioning aids of the block holder
2. Positioning pins
3. Holes for block shafts
4. Fixing screws
1. Use the provided torque wrench to loosen the fix-
ing screw at the desired position.
