Checking The Water Separator For Condensate; Exchanging / Cleaning The Contaminated Filter Cart- Ridge; Cleaning The Housing; Exchanging The Main Fuse - VHF K5+ Originalbetriebsanleitung

EN 46
8.8.1 Checking the w ater separator for con-
densate
Condensate in the separator usually points to
compressed air not being dry enough.
1. Check if water, oil or solid particles piled up in the
water separator.
2. If this is the case, switch the machine off imme-
diately and proceed as follows.
3. Disconnect the machine from the compressed air
supply.
4. Check the compressed air supply and make sure
that the compressed air fulfills the requirements for
air purity according to ISO 8573-1. Do not use the
machine until the compressed air fulfills this require-
ment.
5. Drain the water separator by turning the discharge
screw counter-clockwise.
The condensate is blown out downwards under
pressure.
6. Close the discharge screw again by turning it clock-
wise.

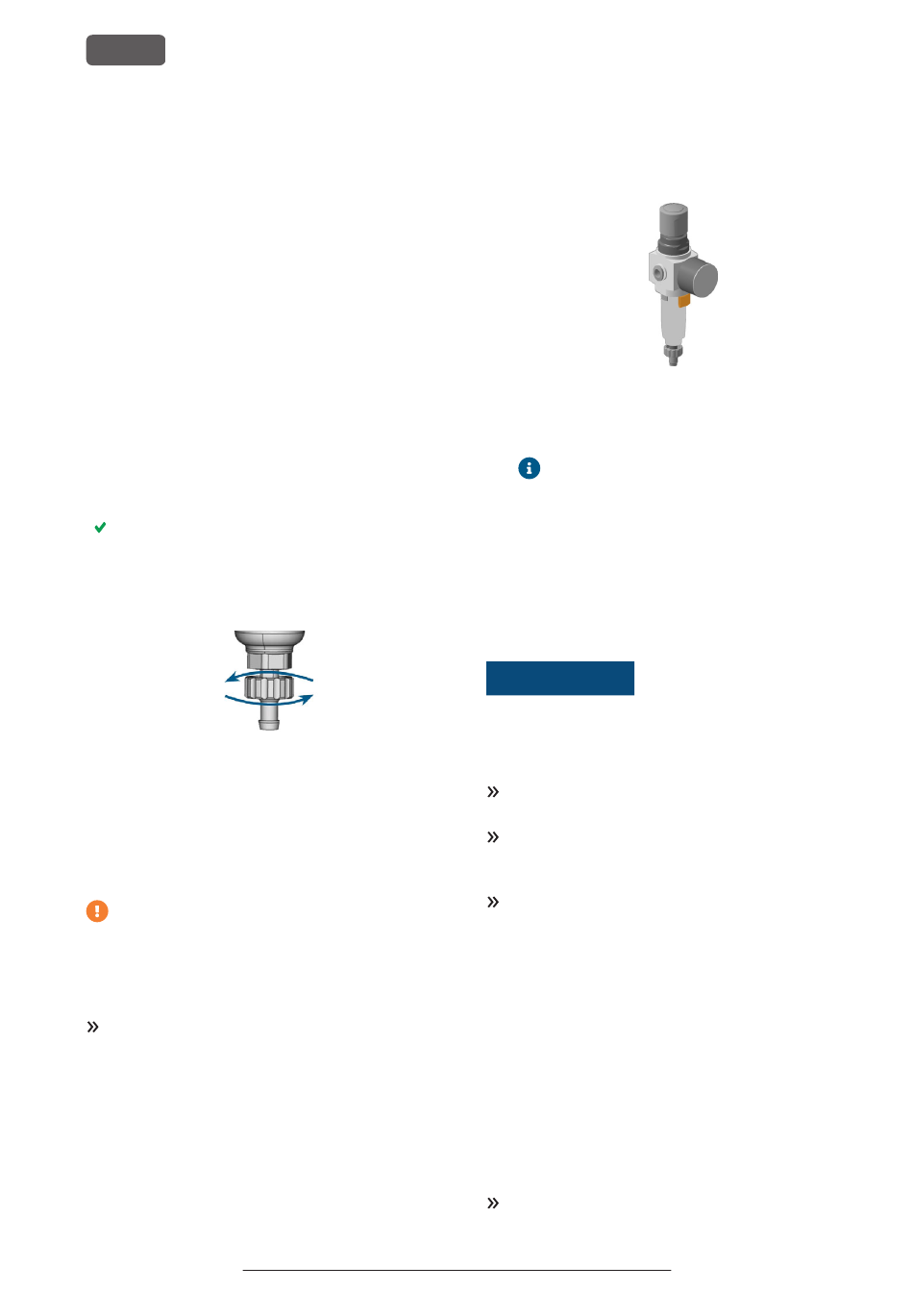

F . 63 O /
IG PENING CLOSING THE DISCHARGE SCREW OF THE COMPRESSED
AIR REGULATOR
8.8.2 Exchanging / cleaning the con-
taminated filter cartridge
You have to clean or exchange the filter cartridge in
the water separator in case of strong contamination.
A strongly contaminated cartridge can lead to a
pressure loss.
If the compressed air fulfills the requirements for air
purity according to ISO 8573-1, the filter cartridge
usually does not have to be changed.
If the filter cartridge is contaminated, check the pur-
ity of your compressed air.
You exchange or clean the filter cartridge as follows:
1. Disconnect the machine from the compressed air
supply.
2. To remove the bowl of the water separator, do the
following:

8.9 Cleaning the housing

cleaning agent
If you use an unsuitable cleaning agent and/or cleaning
tool for cleaning the machine housing, the surface or
the adhesive foil can get damaged.

8.10 Exchanging the main fuse

The internal power supply of the machine has a main
fuse that is accessible from the outside and can be
replaced if necessary.
Original Operating Instructions: K5+
Version: 12/16/2021
K5+ – Maintenance and do-it-yourself
a. Press the release and turn the bowl coun-
terclockwise as far as it will go.
b. Pull the bowl off the housing.
F . 64
IG
3. Unscrew the filter screw below the filter cartridge.
4. Pull out the filter cartridge and clean it if necessary.
A new filter cartridge is available as spare
part from customer service.
5. Insert the new or cleaned filter cartridge and reas-
semble the water separator. While doing so, insert
the release into the recess in the housing and turn
the bowl until it locks into place.
Damaging of the housing
NOTICE
when using an unsuitable
To avoid scratches, only use a microfiber cloth to
clean the housing.
Take care of the adhesive symbols so that they do
not peel off. The adhesive foil is especially sensitive
to rubbing and strong cleaning agents.
If the usage of a special cleaning agent is necessary
to eliminate certain dirt, we recommend checking
the suitability of the cleaning agent at a hidden
place of the part first.
1. Clean the surface with a dry microfiber cloth.
2. If some dirt cannot be removed this way, moisten
the cloth. Use a pH neutral cleaning agent if neces-
sary.
As a replacement fuse, only use a fuse of the fol-
lowing type: T6,3A L250V
