K5+ – Operation: Preparing jobs
You use tools which do not fit into the tool
n
magazine
In these cases, you can force a manual tool change in
DENTALCNC (see the corresponding documentation).
If tool magazine inserts are worn, you should
replace them.
Replacing the tool magazine

inserts – on page 48

6.5.1 Inserting and exchanging tools

You need to insert or exchange tools in the following
cases:
Upon first use of the machine
n
After exchanging tool magazine inserts due to
n
wear
When the tool life of a tool has expired
n
When tools are damaged or worn
n
If the next jobs require additional / different tools
n
than those in the tool magazine
You can check the remaining tool life of all tools
in the Tool management view in DENTALCNC.
You can equip the tool magazine of your machine in
two ways:
By manually inserting the tools into the tool
n
magazine. This is the fastest way. It is described
below.
Via the spindle – you insert a tool into the collet
n
chuck and the spindle will deposit the tool in the
tool magazine. This option takes more time, but
might be more convenient for some. It is
described in the documentation for the man-
ufacturing software.
You insert tools manually as follows:
F
Original Operating Instructions: K5+
Version: 12/16/2021
1. Remove worn or damaged tools from the tool
magazine if any.
2. Insert the new tools:
a. Ensure that the positions of the tools in the
tool magazine match the tool positions in
DENTALCNC.
b. Insert the tools straight into the tool positions
with the cutting edge pointing downwards.
Push them in until the ring touches the rub-
ber.
If the positions of the tools in the tool
magazine do not match the tool positions
in DENTALCNC, the machine will use the
wrong tool(s) during job execution and the
job result will become unusable.
3. After replacing a tool, reset the tool life value. For
this, use the Tool management view in
DENTALCNC.

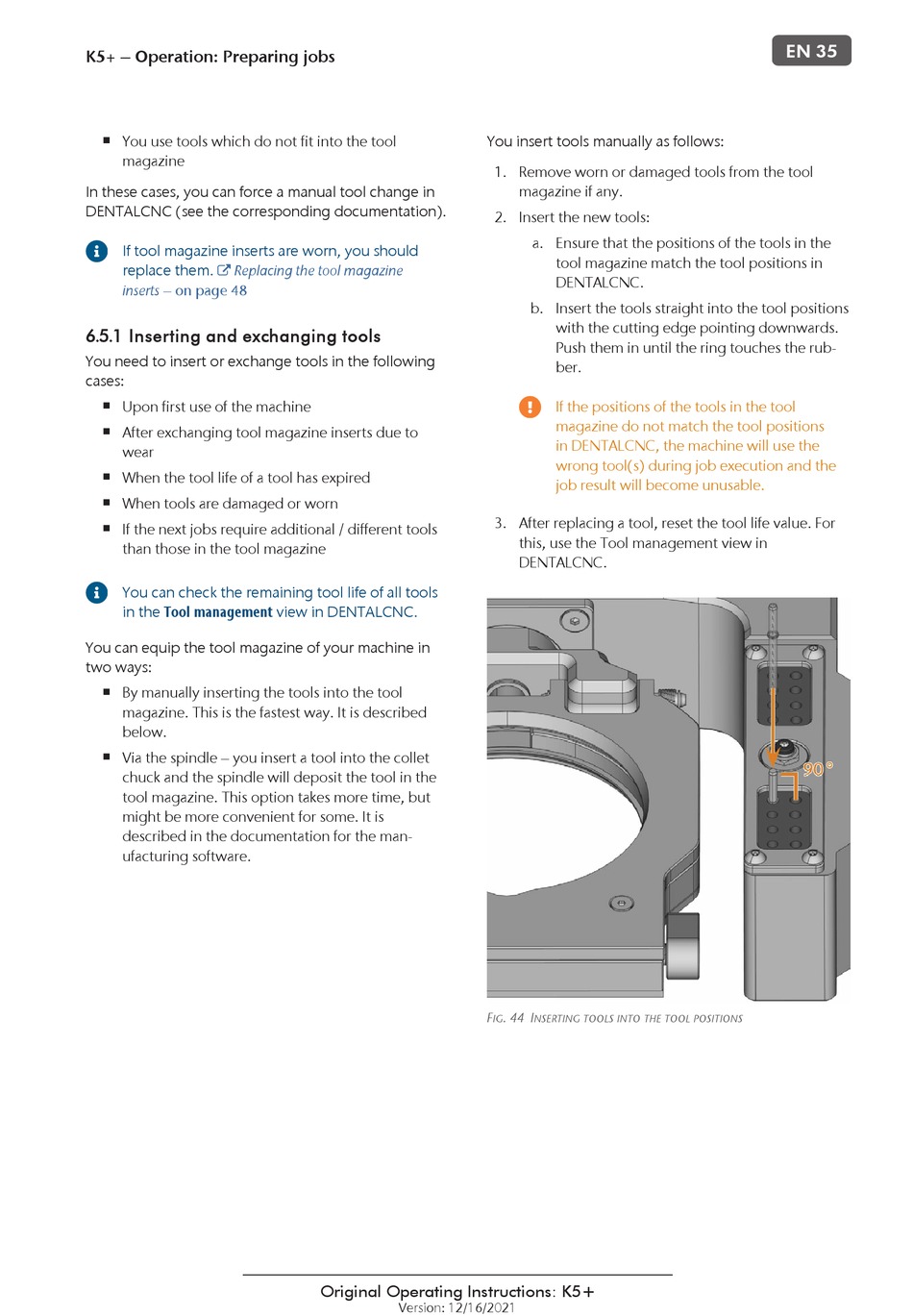

. 44 I
