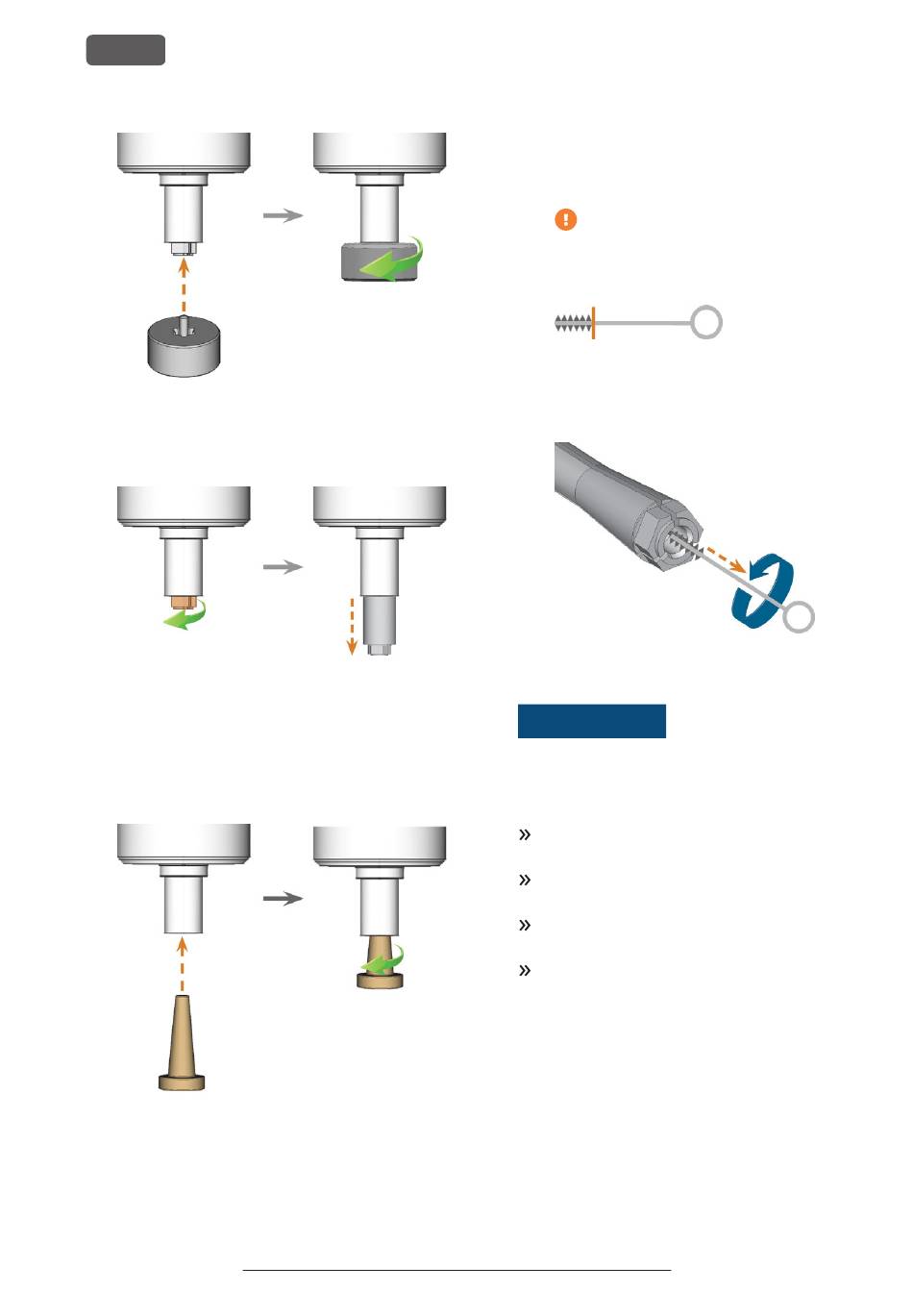

IG NTIGHTENING THE COLLET CHUCK WITH THE KNURLED NUT
8. Unscrew and remove the collet chuck with your
hand.
F . 54 U
IG NSCREWING THE COLLET CHUCK
)
ILLUSTRATION WITH YOUR HAND
9. Put the knurled nut and the collet chuck aside
within reach.
10. Clean the inner cone of the spindle with the clean-
ing cone of the service set.
F . 55 C
IG LEANING THE INNER CONE OF THE SPINDLE
11. Clean the collet chuck with the brush of the service
set.
(
MARKED ORANGE IN LEFT
12. Thoroughly clean the complete outer surface of the
Original Operating Instructions: K5+
Version: 12/16/2021
K5+ – Maintenance and do-it-yourself
a. Insert the brush into the collet chuck until the
end of the brush aligns with the end of the
collet chuck.
Do not push any further because
otherwise dirt my get into the thread
of the collet chuck.
F . 56 T
IG HE END OF THE BRUSH MARKED WITH A VERTICAL
ORANGE LINE
b. Rapidly pull the brush out of the collet chuck
and twist it at the same time.
F . 57 C
IG LEANING THE COLLET CHUCK
c. Repeat the last 2 steps multiple times.
Damaging of the spindle
NOTICE
when using the wrong
grease or applying the grease incorrectly
If you use unsuitable grease or if grease gets into
the longitudinal slots of the collet chuck, the
machine may get damaged.
Before applying the grease, ensure that the col-
let chuck is perfectly clean.
Ensure that no grease gets into the longitudinal
slots of the collet chuck.
Only use a very small, less than pinhead-size
amount of the grease.
Only use the provided grease of the service set.
collet chuck with a clean and dry cloth.
