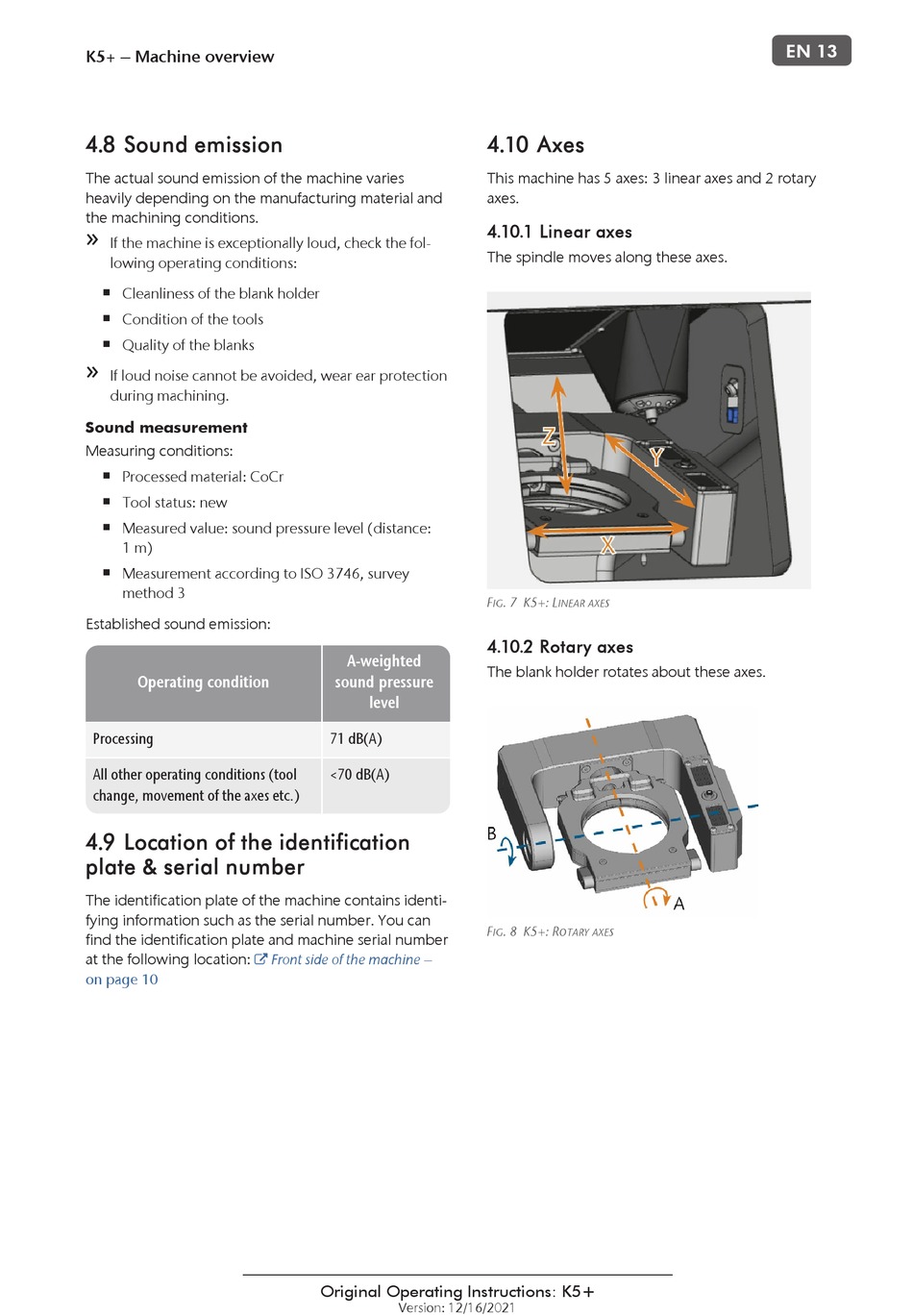

K5+ – Machine overview

4.8 Sound emission

The actual sound emission of the machine varies
heavily depending on the manufacturing material and
the machining conditions.
If the machine is exceptionally loud, check the fol-
lowing operating conditions:
Cleanliness of the blank holder
n
Condition of the tools
n
Quality of the blanks
n
If loud noise cannot be avoided, wear ear protection
during machining.
Sound measurement
Measuring conditions:
Processed material: CoCr
n
Tool status: new
n
Measured value: sound pressure level (distance:
n
1 m)
Measurement according to ISO 3746, survey
n
method 3
Established sound emission:
Operating condition
Processing
All other operating conditions (tool
change, movement of the axes etc.)
4.9 Location of the identification
plate & serial number
The identification plate of the machine contains identi-
fying information such as the serial number. You can
find the identification plate and machine serial number
at the following location:

on page 10
A-weighted
sound pressure
level
71 dB(A)
<70 dB(A)
Front side of the machine –
Original Operating Instructions: K5+
Version: 12/16/2021

4.10 Axes

This machine has 5 axes: 3 linear axes and 2 rotary
axes.

4.10.1 Linear axes

The spindle moves along these axes.
F . 7 K5+: L
IG INEAR AXES

4.10.2 Rotary axes

The blank holder rotates about these axes.
F . 8 K5+: R
IG OTARY AXES
EN 13
